1993 EX270 BK

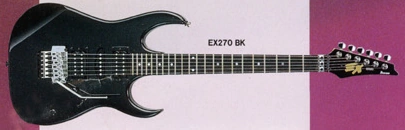

EX270 Black (more images) Red copyright sprite

The EX270 is an EX series solid body electric guitar introduced by Ibanez in 1993. It was made in Korea. This version with the rosewood fretboard was offered only in European markets.

This EX270 features a plywood body mated to a one-piece maple neck with a traditional neck joint with a metal plate. It has a 22-fret rosewood fingerboard with dot position markers. The pickups are Ibanez EX Standard humbuckers in the bridge and neck positions flanking a single coil. Other components include a single-locking tremolo bridge and a locking nut.

The EX270 (maple fretboard) is a related model that was sold in the US market. Multiple differences exist between the two models including the pickups and the type of wood used for the body and fretboard.

The EX270 was discontinued after 1993 along with the rest of the EX line.

Specifications

Specifications for EX270 (rosewood fretboard)
Model name: EX270 (rosewood fretboard)
Year(s) produced: 1993
Sold in: Europe
Made in: Korea
Finish(es): BK (Black) / BN (Blue Night) / RD (Red)
Body
Body type:
Solid body
Body material:
Plywood
Neck joint:
Bolt-on
Bridge:
Single locking tremolo
Hardware color:
Chrome
Neck
Neck type:
EX
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22 / jumbo
Nut:
Locking
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez EX Standard humbucking (H)
Middle pickup:
Ibanez EX Standard single coil (S)
Neck pickup:
Ibanez EX Standard humbucking (H)
Controls:
Master volume / master tone / 5-way lever

Images

Other available finishes

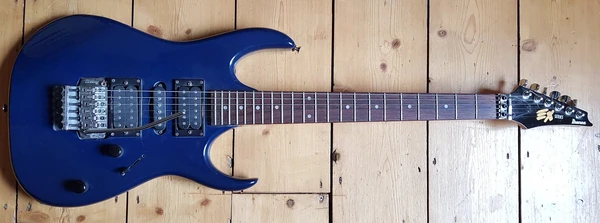

Blue Night

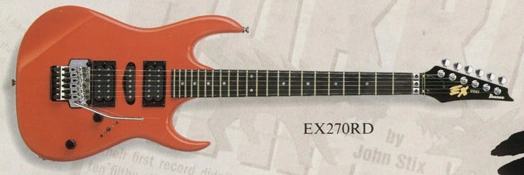

1993 EX270 RD
Red
Wimage An image for this article is missing!
An image of the EX270 Blue Night (BN) is wanted for this article. You can help by finding, uploading and adding it!

Sources
