For other EX170 models, see EX170 (disambiguation).
1992 EX170 BK
EX170 Black (more images) Red copyright sprite

The EX170 is an EX series solid body electric guitar introduced by Ibanez in 1991. It was made in Korea. This version with the maple fretboard was offered only in the US market starting in 1992, replacing an earlier model with the same name.

This EX170 features a light American maple body mated to a one-piece maple neck with a traditional neck joint with a metal plate. It has a 22-fret maple fingerboard with dot position markers. The pickups are Ibanez Powersound humbuckers in the bridge and neck positions flanking a single coil. Other components include a synchronized tremolo bridge.

The EX170L (maple fretboard) is a left-handed version. The EX1700 is a similar model with cream binding and gold hardware. The EX160 is a related model with a single-coil pickup in the neck position and a rosewood fretboard.

The EX170 (1992–1993, rosewood fretboard) is a related model that was sold in the European market. Multiple differences exist between the two models including the pickups and the type of wood used for the body and fretboard.

This EX170 was discontinued after 1993 along with the rest of the EX line.

Specifications

Specifications for EX170 (1992–1993, maple fretboard)
Model name: EX170 (1992–1993, maple fretboard)
Year(s) produced: 1992–1993
Sold in: USA
Made in: Korea
Finish(es): BK (Black) / BN (Blue Night) / MV (Matte Violin) 1993 / RD (Red) 1992
Body
Body type:
Solid body
Body material:
Light American maple
Neck joint:
Bolt-on
Bridge:
Full Action II tremolo
Hardware color:
Chrome
Neck
Neck type:
1992: EX
1993: EX100
Neck material:
1-piece maple
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / jumbo
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez Powersound 1 (H)
Middle pickup:
Ibanez Powersound Single (S)
Neck pickup:
Ibanez Powersound 1 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Other available finishes

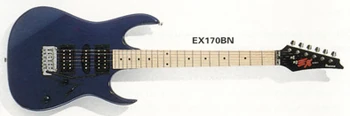

1992 EX170 BN
Blue Night
1993 EX170 MV
Matte Violin
Red
Wimage An image for this article is missing!
An image of the EX170 Red is wanted for this article. You can help by finding, uploading and adding it!
