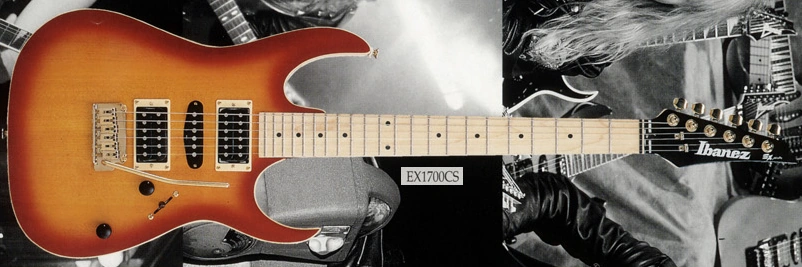

1993 EX1700 CS.png
EX1700 Cherry Sunburst (more images) Red copyright sprite.png

The EX1700 is an EX series solid body electric guitar introduced by Ibanez in 1992. It was made in Korea.

This EX1700 features a light American maple body with cream binding mated to a one-piece maple neck with a traditional neck joint with a metal plate. It has a 22-fret maple fingerboard with dot position markers. The pickups are Ibanez Powersound humbuckers in the bridge and neck positions flanking a single coil. Other components include a synchronized tremolo bridge.

The EX1700F was a version of this guitar that had a chambered body with an f-hole. The EX170 is a similar model without the body binding and with chrome hardware. The EX1500 is a similar model with a pickguard, no binding and a different bridge. The EX3700 is a related model with a flame maple top, a double locking tremolo bridge and different pickups.

This EX1700 was discontinued after 1993 along with the rest of the EX line.

Specifications

Specifications for EX1700
Model name: EX1700
Year(s) produced: 1992–1993
Sold in: USA
Made in: Korea
Finish(es): Cherry Sunburst (CS) / Transparent Turquoise (TT)
Body
Body type:
Solid body
Body material:
Light American maple w/ cream binding
Neck joint:
Bolt-on
Bridge:
Full Action II tremolo
Hardware color:
Gold
Neck
Neck type:
1992: EX
1993: EX100
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / jumbo
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez Powersound 1 (H)
Middle pickup:
Ibanez Powersound Single (S)
Neck pickup:
Ibanez Powersound 1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images

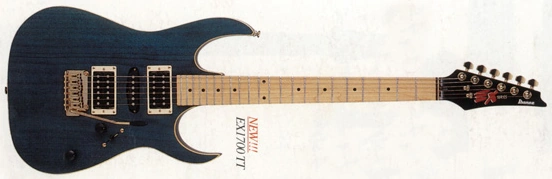

1992 EX1700 TT.png
EX1700 Transparent Turquoise Red copyright sprite.png
