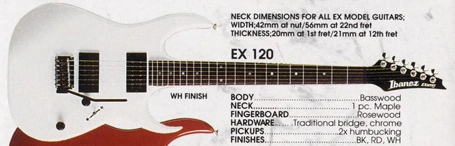

1990 EX120 WH
EX120 White (more images) Red copyright sprite

The EX120 is an EX series solid body electric guitar introduced by Ibanez in 1989. It was made in Korea. This version was sold only in the United States.

A later EX120 version was sold in European markets in 1991 and 1992. The major difference between the two is that the European version has a plywood body, while this US version has a solid basswood body.

This EX120 features a basswood body mated to a one-piece maple neck with a traditional neck joint with a metal plate. It has a 22-fret rosewood fingerboard with dot position markers. Other components include dual Ibanez EX humbucking pickups and a synchronized tremolo bridge.

The EX170 is a similar model with a single coil pickup in the middle position. The EX140 is a related model with a humbucker and two single coils.

This basswood EX120 was discontinued after 1991.

Specifications[]

Related content: EX series | Models-icon
Specifications for EX120 (1989–1991, basswood body)
Model name: EX120 (1989–1991, basswood body)
Year(s) offered: 1989–1991
Sold in: USA
Made in: Korea
Finish(es): BK (Black) / RD (Red) / WH (White)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Bolt-on
Bridge:
Standard tremolo
Hardware color:
Chrome
Neck
Neck type:
EX
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22 / jumbo
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez EX humbucking (H)
Neck pickup:
Ibanez EX humbucking (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Other available finishes
Image-icon
Black

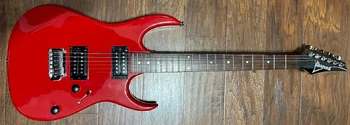

1989 AEX120-RD Basswood
Red
Wimage An image for this article is missing!
An image of the EX120 Black (BK) is wanted for this article. You can help by finding, uploading and adding it!
