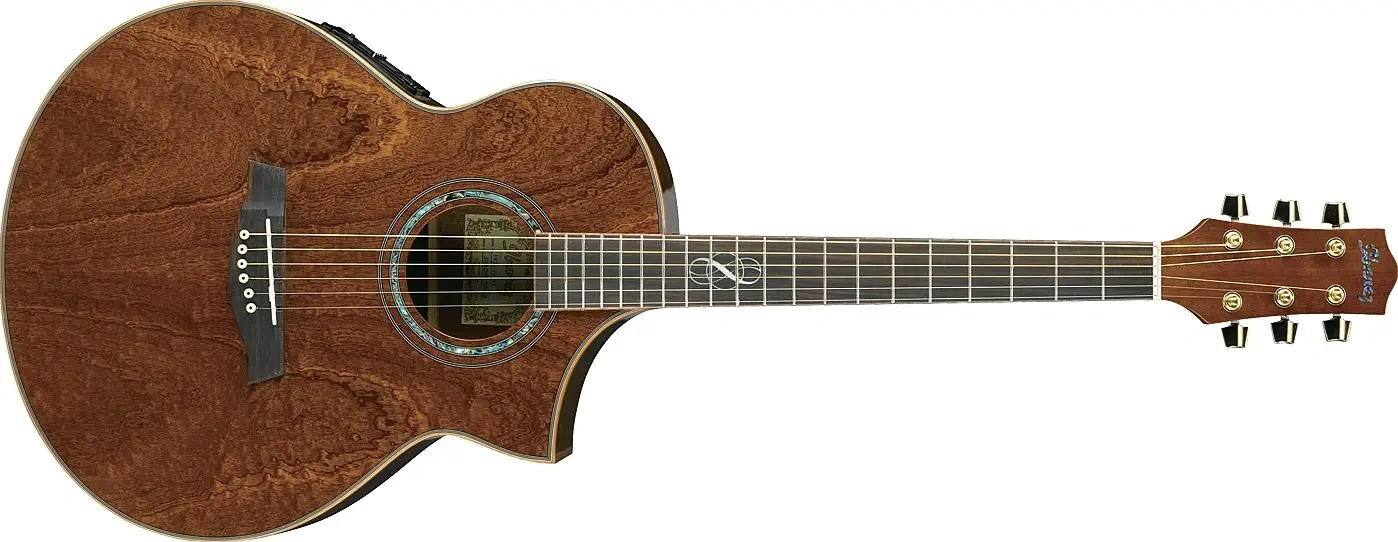

2011 EW35SPE NT 27 01
EW35SPE Natural High Gloss 2011–2012 Red copyright sprite

The EW35SPE is an Exotic Wood series acoustic-electric guitar model introduced by Ibanez for 2011. It was produced in China.

The EW35SPE features an EW body with a soft Florentine cutaway constructed of a laminated sapele pommele top with mahogany binding on laminated sapele pommele sides and back with a high gloss finish. The round soundhole has an abalone rosette. It has a mahogany neck with a 20-fret rosewood fingerboard with a special pearloid inlay at the twelfth fret. Components include an Ivorex II compensated saddle in a rosewood bridge, Ibanez Advantage bridge pins, an Ivorex II nut, and chrome Ibanez Smooth Tuner AS die-cast tuning machines.

Electronics consist of a B-Band UST undersaddle pickup connected to an Ibanez SRTc preamp with chorus and onboard tuner powered by a 9V battery and feeding balanced XLR and ¼" outputs.

For 2013 the nut and saddle were changed to plastic and the tuners were changed to Ibanez die-cast units.

The EW35ABE and EW35CPE are similar models with, respectively, olive ash burl and camphor tree bodies. The EW35QME is a related model with a quilted maple body and a different preamp.

The EW35SPE was discontinued in 2014 along with the rest of the Exotic Wood series.

Specifications[]

Related content: Exotic Wood series | Models-icon
Specifications for EW35SPE
Name: EW35SPE
Year(s) offered: 2011–2014
Sold in: Europe 2011–2012 / USA 2012–2014
Made in: China
Price: MSRP: US$749.99 (2012[1]–2013[2]) • SMAP: €439.00 (2011)[3] / US$499.99[2]
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
EW body w/ Florentine cutaway
Dimensions:
  Body length: 510mm/ 20"[4]
  Width: 406mm/ 16"[4]
  Depth: 125mm/ 5"[4]
Top:
  Material: Sapele pommele (laminated)
  Finish: Gloss
  Binding: Mahogany
Back/sides:
  Material: Sapele pommele (laminated)
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
EW
Neck material:
1-piece mahogany
Neck finish:
Satin
Scale length:
641mm/ 25¼"
Fingerboard:
Rosewood w/ mahogany binding
Inlays:
Pearloid special at 12th fret
Frets:
20 nickel silver
Nut:
2011–2012: Ivorex II
2013–2014: White plastic
Machine heads:
2011–2012: Ibanez Smooth Tuner AS
2013–2014: Ibanez die-cast
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
B-Band UST
Preamp:
Ibanez SRTc w/ onboard tuner
EQ/controls:
Volume / 3-band EQ (individual treble, midrange, & bass boost/cut) / anti-feedback control / chorus toggle / phase toggle
Output jack(s):
XLR & ¼" stereo (balanced)
Battery:
9V
Bridge:
Rosewood
Bridge pins:
Ibanez Advantage bridge pins (white w/ black dot)
Saddle:
2011–2012: Ivorex II compensated
2013–2014: White plastic compensated
Hardware color:
Chrome

Images[]

'Other version

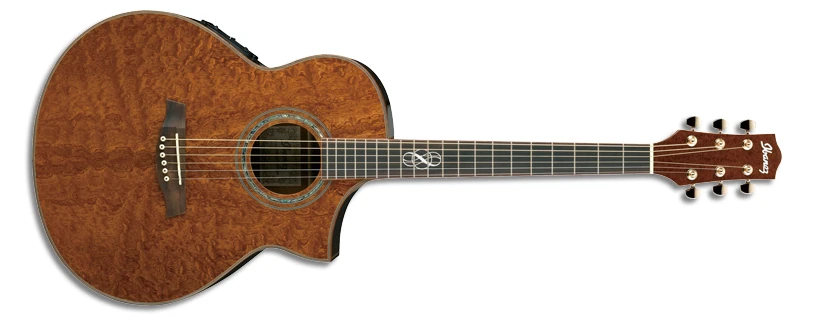

2013 EW35SPE NT 12 01
EW35SPE Natural High Gloss 2013–2014
Additional details
2012 SRTc preamp
SRTc preamp
2011 Ibanez SRTc preamp
SRTc preamp
