EW35QME Natural High Gloss (more images)

The EW35QME is an Exotic Wood series acoustic-electric guitar model introduced by Ibanez in late-2008. It is a spot model which never appeared in a catalong. It was produced in China.

The EW35QME features an EW body with a soft Florentine cutaway constructed of a laminated quilted maple top with mahogany binding on laminated quilted maple sides and back with a high gloss finish. The round soundhole has an abalone rosette. It has a mahogany neck with a 20-fret rosewood fingerboard with a secial pearloid inlay at the twelfth fret. Components include an Ivorex II compensated saddle in a rosewood bridge, Ibanez Advantage bridge pins, an Ivorex II nut, and chrome Ibanez Smooth Tuner AS die-cast tuning machines.

Electronics consist of a B-Band UST undersaddle pickup connected to an Ibanez SRTn preamp with notch filter and onboard tuner powered by a 9V battery and feeding balanced XLR and ¼" outputs.

The EW3512QME is a 12 string version. The EW35ABE, EW35CPE, and EW35SPE are related models with, respectively, olive ash burl, camphor tree, and sapele pommele bodies and a different preamp.

The EW35QME was discontinued in 2008.

Specifications[]

Related content: Exotic Wood series |
Specifications for EW35QME
Name: EW35QME
Year(s) offered: 2008
Sold in: ??
Made in: China
Finishes: Natural High Gloss (NT) / Transparent Black Cherry (TBC) / Transparent Mandarin Orange (TMO) / Ultra Marine Blue (UMB)
Body
Body type:
Acoustic
Body shape:
EW body w/ Florentine cutaway
Dimensions:
  Body length: 510mm/ 20"[1]
  Width: 406mm/ 16"[1]
  Depth: 125mm/ 5"[1]
Top:
  Material: Quilted maple (laminated)
  Finish: Gloss
  Binding: Mahogany
Back/sides:
  Material: Quilted maple (laminated)
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
EW
Neck material:
1-piece mahogany
Neck finish:
Satin
Scale length:
641mm/ 25¼"
Fingerboard:
Rosewood w/ mahogany binding
Inlays:
Pearloid special at 12th fret
Frets:
20 nickel silver
Nut:
Ivorex II
Machine heads:
Ibanez Smooth Tuner AS
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
B-Band UST
Preamp:
Ibanez SRTn w/ onboard tuner
EQ/controls:
Volume / 3-band EQ (individual treble, midrange, & bass boost/cut) / Notch frequency control
Output jack(s):
XLR & ¼" stereo (balanced)
Battery:
9V
Bridge:
Rosewood
Bridge pins:
Ibanez Advantage bridge pins (white w/ black dot)
Saddle:
Ivorex II compensated
Hardware color:
Gold

Images[]

Other finishes

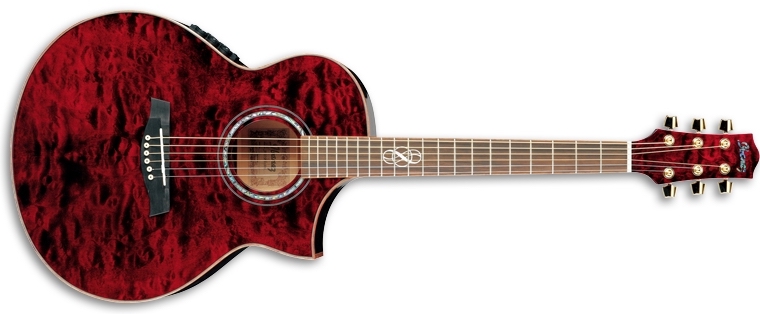

Transparent Black Cherry
Transparent Mandarin Orange
Ultra Marine Blue
Additional details
Ivorex II nut
Ivorex II bridge
Balanced XLR and ¼" stereo outputs & battery door
SRTn preamp

Sources[]

  • EW35QME-NT parts list, Hoshino parts catalog, archived February 2023
