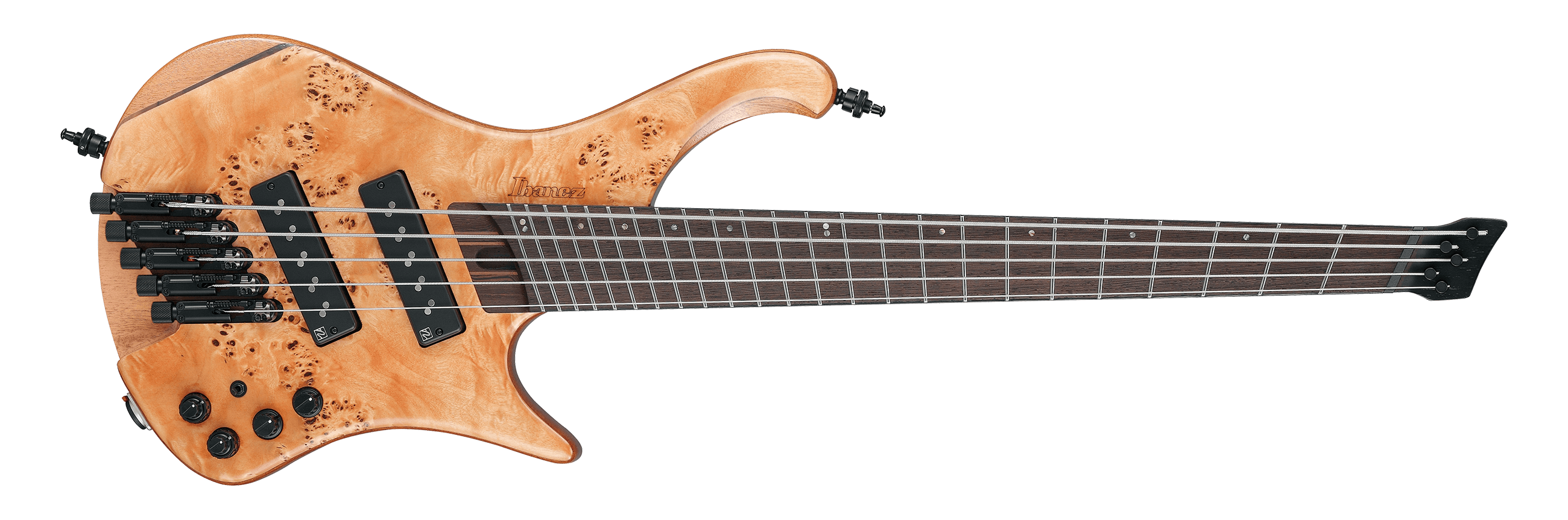

2024 EHB1505SMS FNL 1P 01
EHB1505SMS Florid Natural Low Gloss (more images) Red copyright sprite

The EHB1505SMS is a five string, multi-scale EHB series solid body, short scale, electric bass model introduced by Ibanez for 2024. It is made in Indonesia as part of the Ibanez Bass Workshop line.

The EHB design features a chambered body double cutaway body shape with a prominent upper horn and a deep lower scoop. The chambered body has an ergonomic design with a slanted back to enable the player to maintain a similar playing position whether seated or standing.

The EHB1505SMS features a headless design with a poplar burl top on a chambered selected lightweight African mahogany body bolted to a graphite reinforced roasted panga panga and walnut neck with a panga panga fingerboard with 24 stainless steel frets, offset abalone dot position markers, and luminescent side dots. Components include individual Monorail V HS bridges with adjustable string spacing, a pair of Nordstrand Custom Big Split passive pickups, a detachable finger ramp, a Vari-mid 3-band EQ with EQ bypass switch, a locking Neutrik output jack, and Schaller S-Lock strap pins.

The EHB1505S is a non-multi-scale version with parallel frets. The EHB1505MS is a related model with a longer 34" scale neck.

Specifications[]

Specifications for EHB1505SMS
Model name: EHB1505SMS
Year(s) offered: 2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: Indonesia
Finish(es): Florid Natural Low Gloss (FNL)
Body
Body type:
Chambered solid body
Body material:
Selected light weight African mahogany w/ poplar burl top
Neck joint:
AANJ
Bridge:
MR5HS Monorail (18mm adjustable string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
EHB5SMS
Neck material:
9-piece panga panga/ walnut w/ graphite reinforcement rods
Scale length:
812mm/ 32" – 762mm / 30"
Fingerboard material:
Panga panga
Fingerboard inlays:
Offset abalone dot
Luminescent side dots
Frets:
24 / medium stainless steel
Nut:
Black plastic (45mm)
Electronics/ Strings
Bridge pickup:
Nordstrand Custom Big Split bridge passive
Neck pickup:
Nordstrand Custom Big Split neck passive
Electronics:
Vari-mid 3-band EQ w/ EQ bypass switch
Controls:
Master volume / Balancer / EQ bypass toggle / Mid frequency & mid boost/cut (stacked), treble boost/cut or passive tone & bass boost/cut (stacked)
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack
String gauge (factory):
.045/.065/.080/.100/.130 (D'Addario EXL170-5)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details

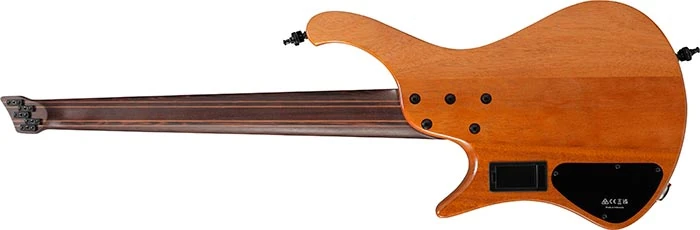

2024 EHB1505SMS FNL 1P 01 back
Back

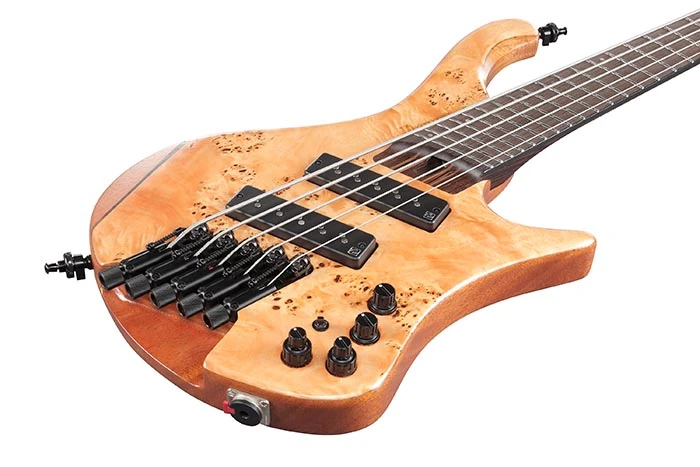

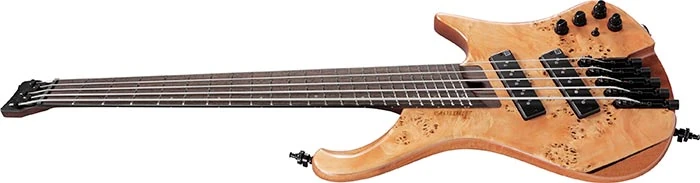

2024 EHB1505SMS FNL 1P 01 front3q
Front ¾ view
2024 EHB1505SMS FNL 1P 01 body-front
Front of body
2024 EHB1505SMS FNL 1P 01 body-back
Back of body

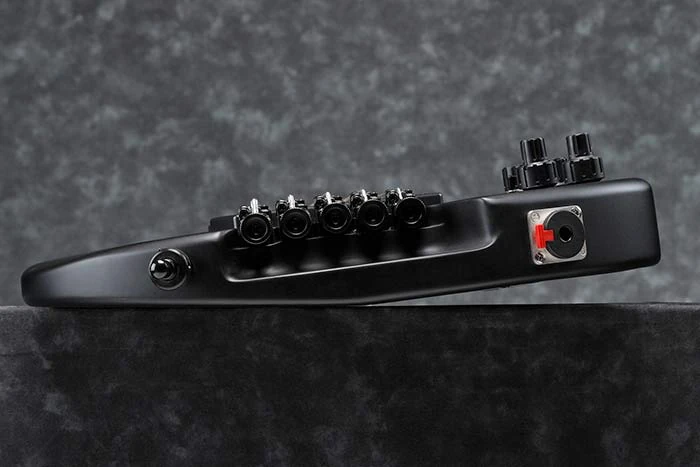

2024 EHB1005MS ergonomic
Ergonomic body profile

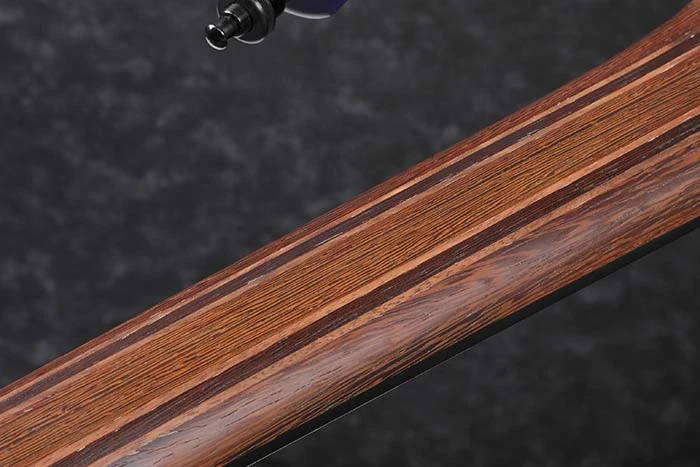

2024 EHB1505 9pcneck
9-piece panga panga/ walnut neck

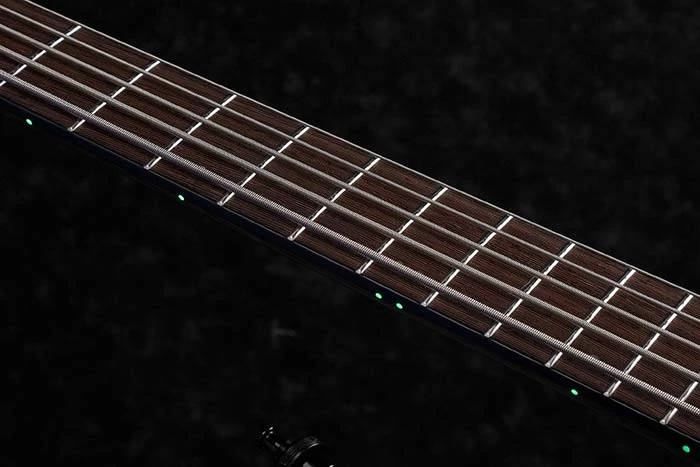

2024 EHB1505 lumi-side-dot
Luminescent side dots
2024 EHB1005MS finger-ramp
Detachable finger ramp
2021 EHB1505 bridge
MR5HS Monorail bridges
2024 EHB size-comp
Size comparison between short-scale (top) and standard (bottom) EHB models
Controls EHB
Controls layout
Vari-Mid III EQ frequency chart
EQ frequency response

Sources[]

  • EHB1505SMS product page, Ibanez Asia & Africa, archived January 2024
