2020 EHB1505 PLF 1P 01

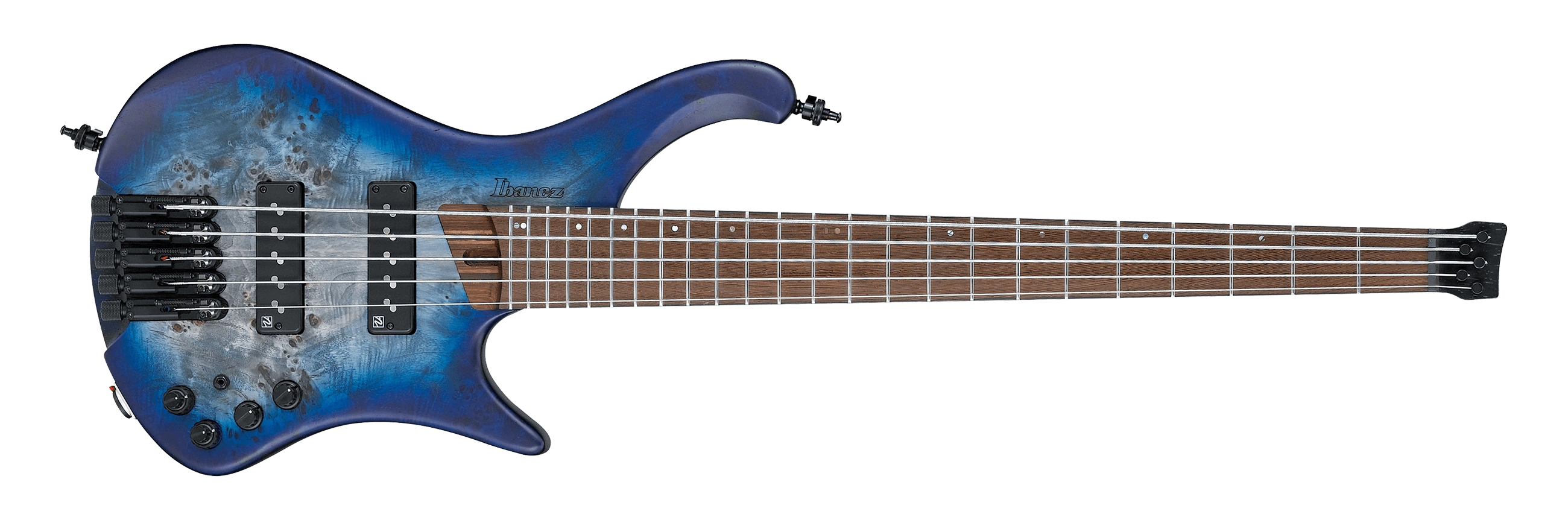

EHB1505 Pacific Blue Burst Flat Red copyright sprite

The EHB1505 is a five string EHB series solid body electric bass model introduced by Ibanez for 2020. It is made in Indonesia as part of the Ibanez Bass Workshop line.

The new EHB design features a chambered body double cutaway body shape with a prominent upper horn and a deep lower scoop. The chambered body has an ergonomic design with a slanted back to enable the player to maintain a similar playing position whether seated or standing.

The EHB1500 features a headless design with a poplar burl top on a chambered selected lightweight African mahogany body bolted to a graphite reinforced roasted panga panga and walnut neck with a panga panga fingerboard with 24 stainless steel frets, offset abalone dot position markers and luminescent side dots. Components include individual Monorail V HS bridges with adjustable string spacing, a pair of Nordstrand Custom Big Split passive pickups, a detachable finger ramp, a Vari-mid 3-band EQ with EQ bypass switch, a locking Neutrik output jack and Schaller S-Lock strap pins.

The EHB1500 is a four string version. The EHB1505MS is a multi-scale version.

Specifications

Specifications for EHB1505
Year(s) produced: 2020
Sold in: Asia & Africa / China / Europe / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Dragon Eye Burst Flat (DEF) / Pacific Blue Burst Flat (PLF)
Body
Body type:
Chambered solid body
Body material:
Selected light weight African mahogany w/ poplar burl top
Neck joint:
AANJ
Bridge:
Monorail V HS (18mm string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
EHB5
Neck material:
9-piece panga panga/ walnut w/ graphite reinforcement rods
Scale length:
864mm / 34"
Fingerboard material:
Panga panga
Fingerboard inlays:
Offset abalone dot
Luminescent side dots
Frets:
24 / medium stainless steel
Nut:
Black plastic (45mm)
Electronics/ Strings
Bridge pickup:
Nordstrand Custom Big Split passive
Neck pickup:
Nordstrand Custom Big Split passive
Electronics:
Vari-mid 3-band EQ w/ EQ bypass switch
Controls:
Master volume / Balancer / EQ bypass toggle / Mid frequency & mid boost/cut (stacked), treble boost/cut or passive tone & bass boost/cut (stacked)
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack
String gauge (factory):
.045/.065/.085/.105/.130 (D'Addario EXL165 + .130)
Factory tuning:
1G,2D,3A,4E,5B

Images

Additional finishes/ details

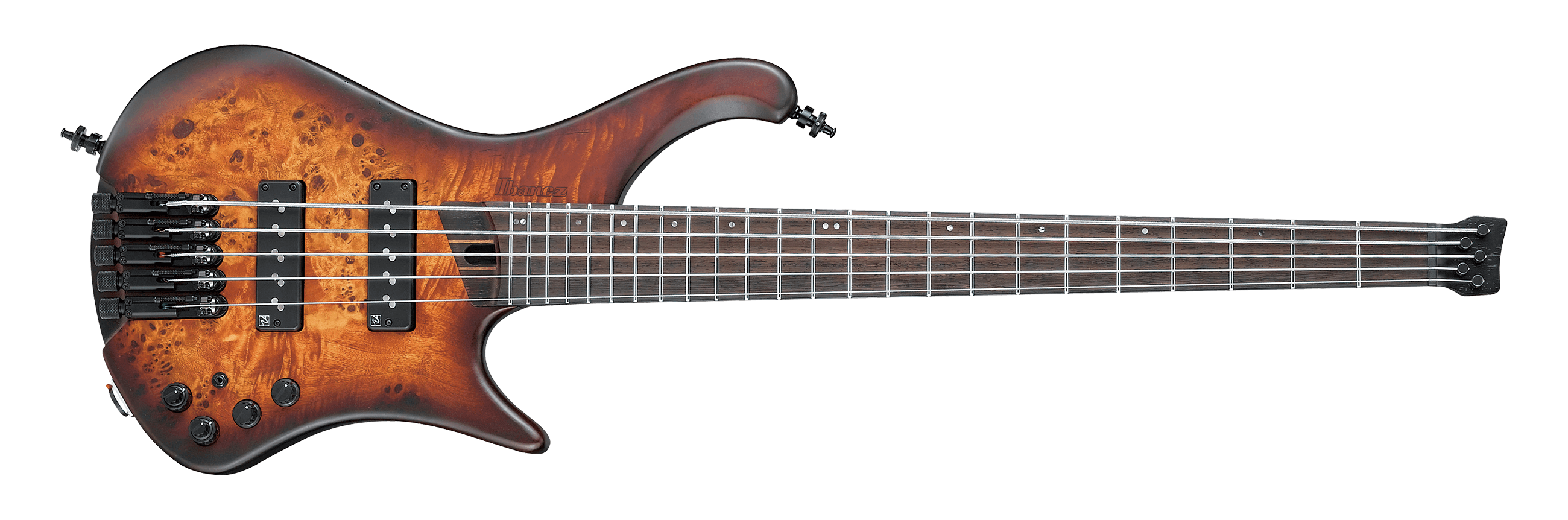

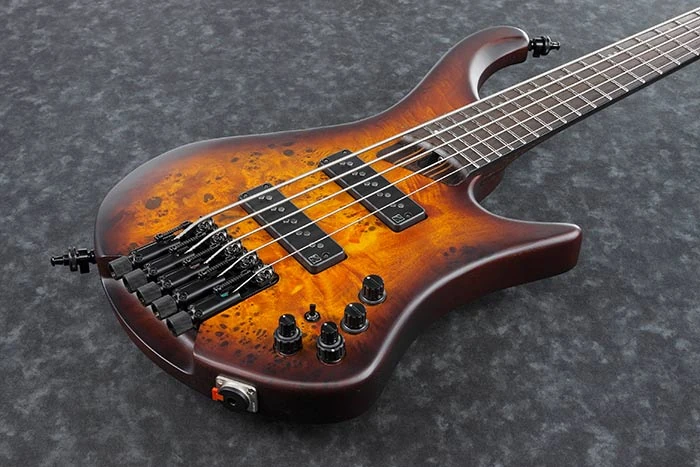

2020 EHB1505 DEF 1P 01
Dragon Eye Burst Flat
Controls EHB
Controls layout
Vari-Mid III EQ frequency chart
EQ frequency chart
