2021 EHB1005MSL
EHB1005MSL Sea Foam Green Matte (more images) Red copyright sprite

The EHB1005MSL is a left-handed, five string, multi-scale EHB series solid body electric bass model introduced by Ibanez in mid-2021. It is produced in Indonesia as part of the Ibanez Bass Workshop line.

The new EHB design features a chambered body double cutaway body shape with a prominent upper horn and a deep lower scoop. The chambered body has an ergonomic design with a slanted back to enable the player to maintain a similar playing position whether seated or standing.

The EHB1005MSL features a multi-scale headless design with a chambered American basswood body bolted to a graphite reinforced roasted maple and walnut neck with a roasted birdseye maple fingerboard with 24 stainless steel fanned frets, offset abalone dot position markers and luminescent side dots. Components include individual Monorail V HS bridges with adjustable string spacing, a pair of Bartolini BH2 passive pickups, a detachable finger ramp, a Vari-mid 3-band EQ with EQ bypass switch, a locking Neutrik output jack and Schaller S-Lock strap pins.

The EHB1005MS is a right-handed version.

Specifications[]

Related content: EHB series | Ibanez Bass Workshop series | Left-handed bass models | Models-icon
Specifications for EHB1005MSL
Model name: EHB1005MSL
Year(s) offered: 2021–2025
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: ¥ 168,000 (2021[1]–2023[2]) / 1,399 (2024[3]) / ¥ 185,000 (2024[4]–2025[5]) / US$1,928.88 (2025[6]) • SMAP: US$1,399.99 (2025[6])
Finish(es): Sea Foam Green Matte (SFM)
Body
Body type:
Chambered solid body
Body material:
American basswood
Neck joint:
AANJ
Bridge:
MR5HS Monorail (18mm string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
EHB5
Neck material:
5-piece roasted maple/ walnut w/ graphite reinforcement rods
Scale length:
889mm / 35" – 838mm/ 33"
Fingerboard material:
Roasted birdseye maple
Fingerboard inlays:
Offset abalone dot
Luminescent side dots
Frets:
24 / medium stainless steel
Nut:
Black plastic (45mm)
Electronics/ Strings
Bridge pickup:
Bartolini BH2 bridge passive
Neck pickup:
Bartolini BH2 neck passive
Electronics:
Vari-mid 3-band EQ w/ EQ bypass switch
Controls:
Master volume / Balancer / EQ bypass toggle / Mid frequency & mid boost/cut (stacked), treble boost/cut or passive tone & bass boost/cut (stacked)
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.080/.100/.130 (D'Addario EXL170-5SL)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

EHB1005MSL SFMback

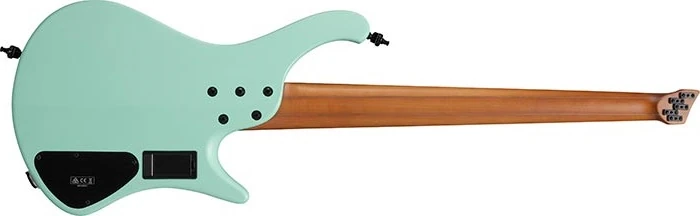

2021 Ibanez EHB1005MSL-SFM ( Rear : American basswood body bolted to a 5-piece roasted maple/ walnut w/ graphite reinforcement rods EHB5 neck ) Red copyright sprite
Additional details
EHB1005MSL SFMbody

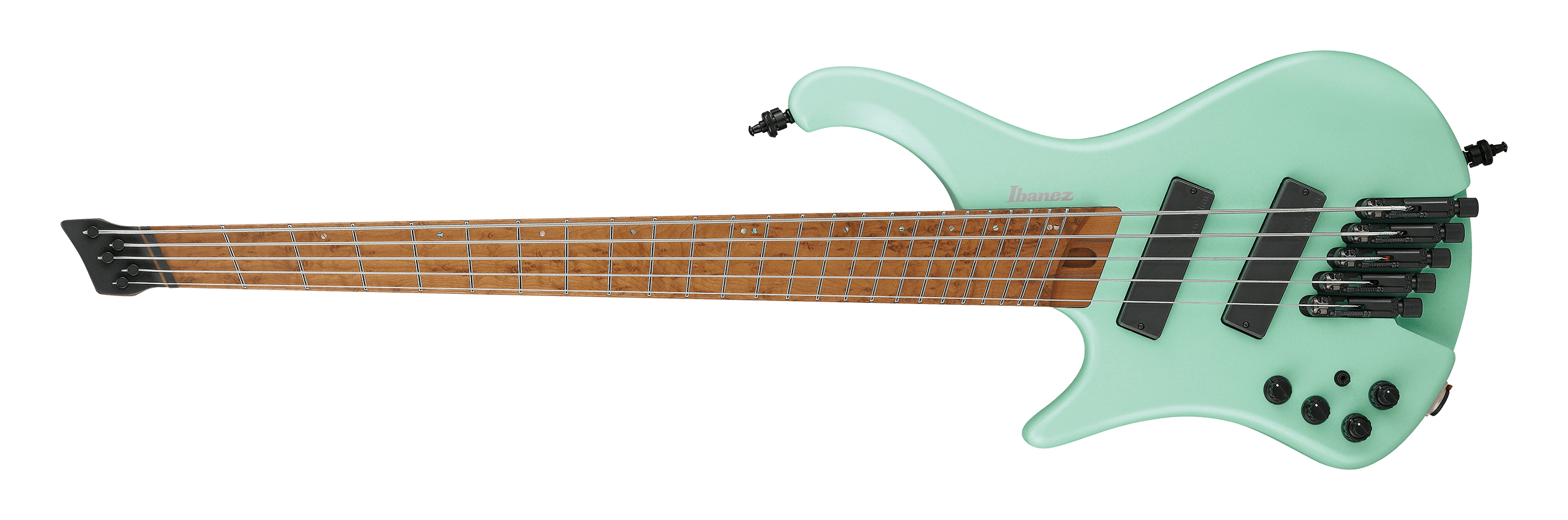

Front of body
EHB1005MSL SFM rear

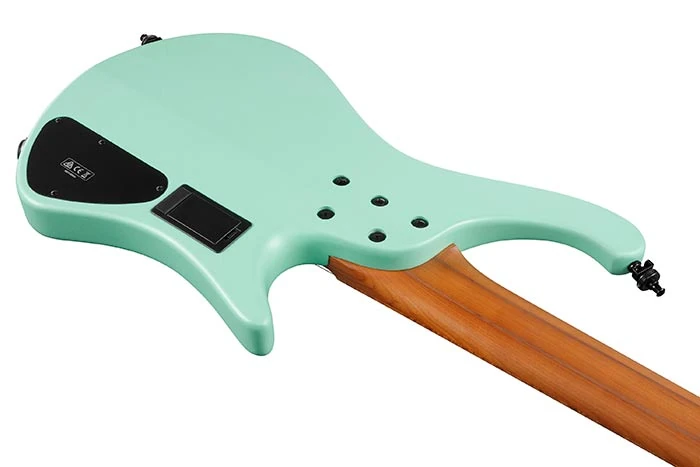

Rear of body
EHB1005MSL eq
EQ frequency chart
EHB1005MSL control headless

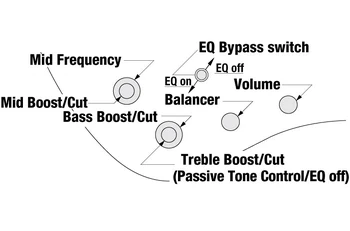

Control layout

Sources[]

  1. EHB1005MSL product page, Ibanez Japan, archived July 2021
  2. EHB1005MSL product page, Ibanez Japan, archived January 2023
  3. 2024 Europe catalog (p. 77)
  4. EHB1005MSL product page, Ibanez Japan, archived February 2024
  5. EHB1005MSL product page, Ibanez Japan, archived February 2025
  6. 6.0 6.1 EHB1005MSL-SFM product listing, Adorama (US retailer), archived February 2025
  • EHB1005MSL product page, Ibanez Europe, archived June 2022
  • EHB1005MSL product page, Ibanez Americas & Oceania, archived June 2022
  • EHB1005MSL product page, Ibanez Asia & Africa, archived January 2023
  • EHB1005MSL product page, Ibanez USA, archived January 2024
  • EHB1005MSL product page, Ibanez China, archived February 2025
