2021 EHB1000S PMM 1P 01.png
EHB1000S Pink Gold Metallic Matte Red copyright sprite.png

The EHB1000S is a short scale EHB series solid body electric bass model introduced by Ibanez for 2020. It is made in Indonesia as part of the Ibanez Bass Workshop line.

The new EHB design features a chambered body double cutaway body shape with a prominent upper horn and a deep lower scoop. The chambered body has an ergonomic design with a slanted back to enable the player to maintain a similar playing position whether seated or standing.

The EHB1000S features a headless design with a chambered American basswood body bolted to a graphite reinforced roasted maple and walnut neck with a roasted birdseye maple fingerboard with 24 stainless steel frets, offset abalone dot position markers and luminescent side dots. Components include individual Monorail V HS bridges with adjustable string spacing, a pair of Bartolini BH2 passive pickups, a detachable finger ramp, a Vari-mid 3-band EQ with EQ bypass switch, a locking Neutrik output jack and Schaller S-Lock strap pins.

The EHB1005SMS is a five string, multi-scale version. The EHB100S is a standard scale version.

Specifications

Specifications for EHB1000S
Model name: EHB1000S
Year(s) produced: 2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Pink Gold Metallic Matte (PMM) / Sea Foam Green Matte (SFM)
Body
Body type:
Chambered solid body
Body material:
American basswood
Neck joint:
AANJ
Bridge:
MR5HS Monorail (19mm adjustable string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
EHB4S
Neck material:
5-piece roasted maple/ walnut w/ graphite reinforcement rods
Scale length:
762mm / 30"
Fingerboard material:
Roasted birdseye maple
Fingerboard inlays:
Offset abalone dot
Luminescent side dots
Frets:
24 / medium stainless steel
Nut:
Black plastic (41mm)
Electronics/ Strings
Bridge pickup:
Bartolini BH2 bridge passive
Neck pickup:
Bartolini BH2 neck passive
Electronics:
Vari-mid 3-band EQ w/ EQ bypass switch
Controls:
Master volume / Balancer / EQ bypass toggle / Mid frequency & mid boost/cut (stacked), treble boost/cut or passive tone & bass boost/cut (stacked)
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)
Portal: Ibanez Bass Workshop series | EHB series | Bass models Models-icon.png

Images

Additional finishes/ details
Controls EHB.jpg
Controls layout

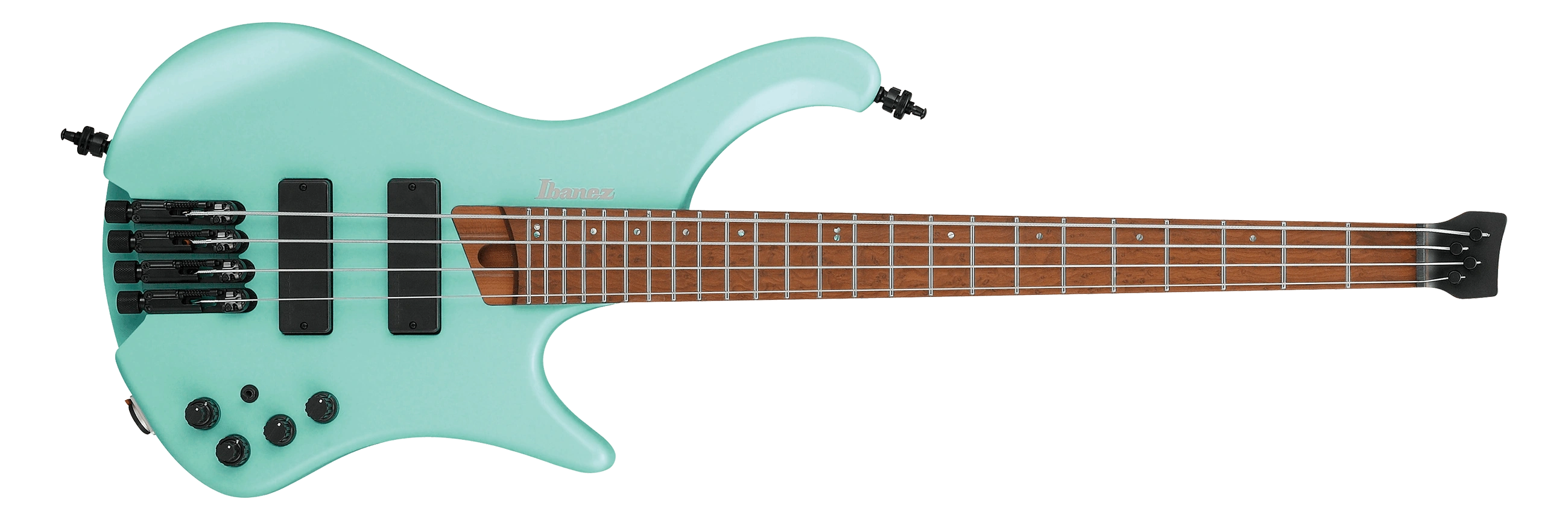

2021 EHB1000S SFM 1P 01.png
Sea Foam Green Matte
Vari-Mid III EQ frequency chart.jpg
EQ frequency chart

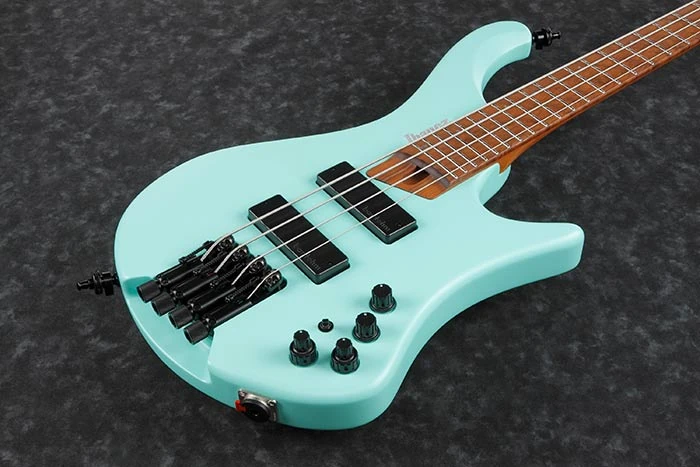

2021 EHB1000S SFM 1P 01 front.jpg
Front of body (SFM finish)
2021 EHB1000S PMM 1P 01 back.jpg
Rear of body (PMM finish)
2021 EHB1505 bridge.jpg
MR5HS Monorail bridges

Video

Ibanez EHB1000S-PMM ( featuring 潘雪娇Kyo )
Ibanez EH1000S-SFM ( featuring Alberto Bollati )

Sources
