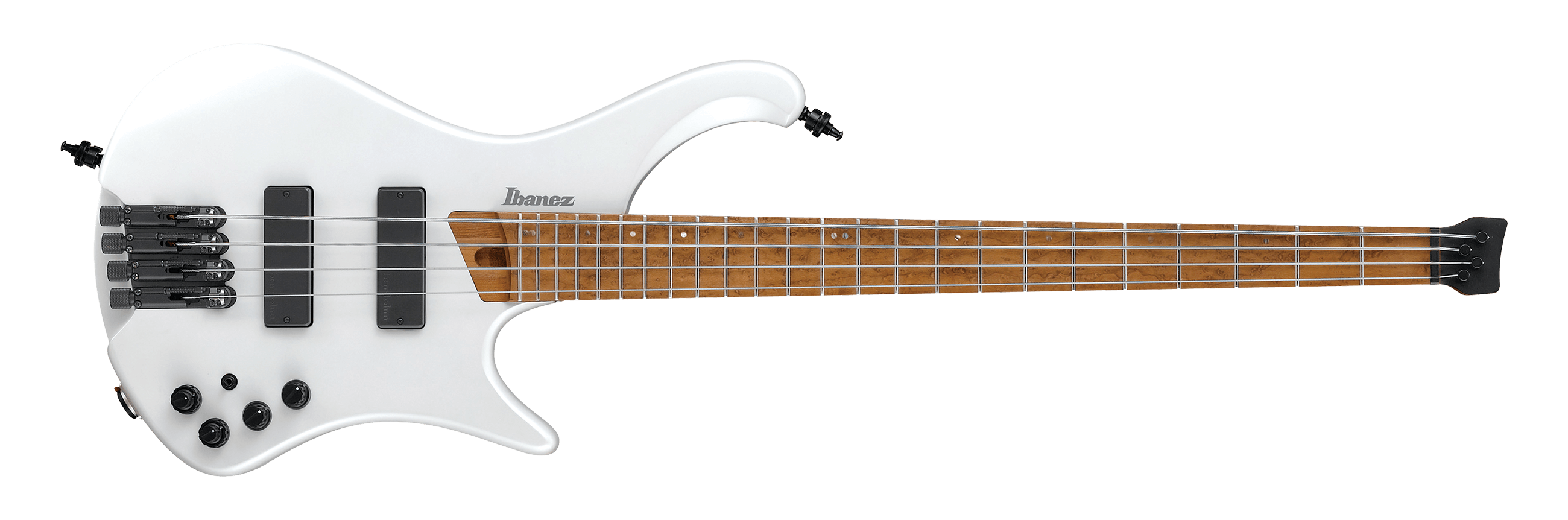

2020 EHB1000 PWM 1P 01
EHB1000 Pearl White Matte Red copyright sprite

The EHB1000 is an EHB series solid body electric bass model introduced by Ibanez for 2020. It is made in Indonesia as part of the Ibanez Bass Workshop line.

The new EHB design features a chambered body double cutaway body shape with a prominent upper horn and a deep lower scoop. The chambered body has an ergonomic design with a slanted back to enable the player to maintain a similar playing position whether seated or standing.

The EHB1000 features a headless design with a chambered American basswood body bolted to a graphite reinforced roasted maple and walnut neck with a roasted birdseye maple fingerboard with 24 stainless steel frets, offset abalone dot position markers and luminescent side dots. Components include individual Monorail V HS bridges with adjustable string spacing, a pair of Bartolini BH2 passive pickups, a detachable finger ramp, a Vari-mid 3-band EQ with EQ bypass switch, a locking Neutrik output jack and Schaller S-Lock strap pins.

The EHB1005 is a five string version. The EHB1000S is a short-scale version.

Specifications[]

Specifications for EHB1000
Model name: EHB1000
Year(s) offered: 2020–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: Indonesia
Finish(es): Pearl White Matte (PWM)
Body
Body type:
Chambered solid body
Body material:
American basswood
Neck joint:
AANJ
Bridge:
MR5HS Monorail (19mm adjustable string spacing)
Strap buttons:
Schaller S-Lock
Knob style:
Plastic
Hardware color:
Black
Neck
Neck type:
EHB4
Neck material:
5-piece roasted maple/ walnut w/ graphite reinforcement rods
Scale length:
864mm / 34"
Fingerboard material:
Roasted birdseye maple
Fingerboard inlays:
Offset abalone dot
Luminescent side dots
Frets:
24 / medium stainless steel
Nut:
Black plastic (41mm)
Electronics/ Strings
Bridge pickup:
Bartolini BH2 bridge passive
Neck pickup:
Bartolini BH2 neck passive
Electronics:
Vari-mid 3-band EQ w/ EQ bypass switch
Controls:
Master volume / Balancer / EQ bypass toggle / Mid frequency & mid boost/cut (stacked), treble boost/cut or passive tone & bass boost/cut (stacked)
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details
2021 EHB1000 PWM 1P 01 front
Front of body
2021 EHB1000 PWM 1P 01 back
Rear of body
2021 EHB1505 bridge
MR5HS Monorail bridges
Controls EHB
Controls layout
Vari-Mid III EQ frequency chart
EQ frequency chart

Sources[]

  • EHB1000 product page, Ibanez Europe, archived January 2020
  • 2020 German catalog (p. 75)
  • EHB1000 product page, Ibanez China, archived January 2021
  • EHB1000 product page, Ibanez Americas & Oceania, archived June 2022
  • EHB1000 product page, Ibanez Asia & Africa, archived January 2023
  • EHB1000 product page, Ibanez USA, archived January 2024
