2003 EDC710-CBF

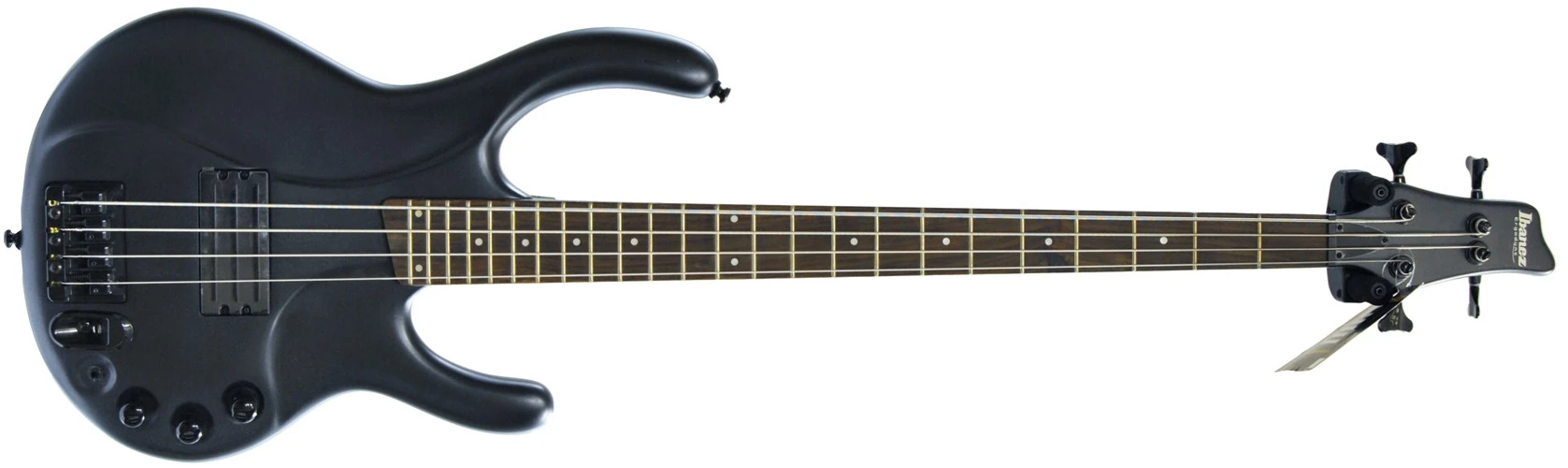

EDC710 Copper Brush Flat (more images) Red copyright sprite

The EDC710 is an Ergodyne series solid body electric bass model introduced by Ibanez for 2003. It was produced in South Korea by Cor-Tek.

The EDC710 features a double-cutaway sculpted luthite body with a long upper horn bolted to a maple neck with a 24-fret maple fingerboard with white dot position markers and a matching headstock. Components include a Triple Coil "Custom" passive pickup an EQB-IIA preamp with a 2-band EQ, an Accu-cast B20 fixed bridge with 19mm string spacing, a plastic nut, black hardware and Ibanez die-cast tuning machine

The EDC715 is a similar five string version.

The EDC710 was offfered only in 2003.


Specifications[]

Related content: Ergodyne series | Models-icon
Specifications for EDC710
Model name: EDC710
Year(s) offered: 2003
Sold in: Asia & South America / Europe / USA
Made in: South Korea
Finish(es): Copper Brush Flat (CBF) USA only / Iron Pewter Flat (IPF)
Body
Body type:
Solid body
Body material:
Luthite
Neck joint:
AANJ
Bridge:
Accu-cast B20 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
EDC4
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dots and side dots
Frets:
24 / medium
Nut:
plastic (38mm)
Machine heads:
Ibanez Die-cast
Electronics/ Strings
Bridge pickup:
EDC Triple Coil "Custom" passive
Electronics:
EQB-IIA "2-Band EQ" active
Controls:
Volume, Bass, Treble and 3-way switch pickup control
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Other finishes

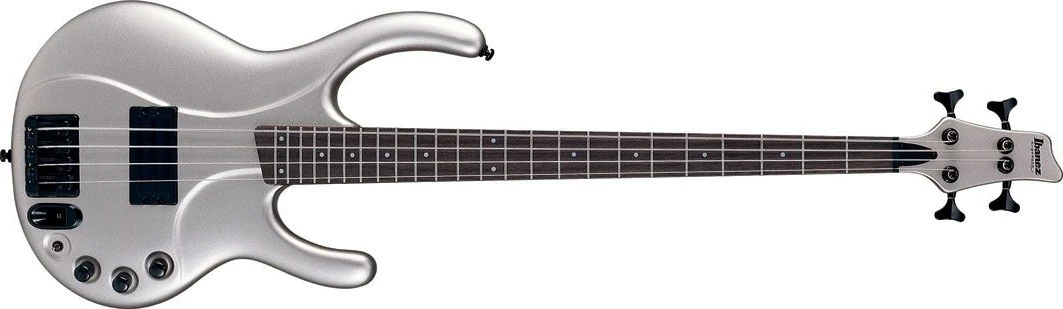

2003 EC710-IPF
Iron Pewter Flat
Additional details

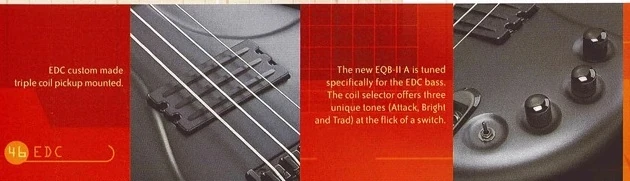

EDC715 pickup and EQ
EDC Triple Coil & EQB-IIA "2-Band EQ"
