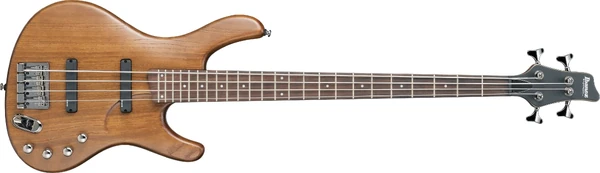

2007 EDB550-WNF
EDB550 Walnut Flat (more images) Red copyright sprite

The EDB550 is an Ergodyne series solid body electric bass model introduced by Ibanez for 2007. It was produced in Indonesia by Cor-Tek.

The EDB550 features an ergonomic shaped double-cutaway light ash body with curved back and scooped front bolted to a wenge and bubinga neck with a 24-fret rosewood fingerboard with pearl dot position markers, side dots, a graphite nut and a black headstock. Components include a set of Duncan Ibanez passive pickups on the neck and bridge positions with and an EQBII active 2-band EQ, an Accu-cast B100 fixed bridge with 19mm string, Ibanez Die-cast machine heads and cosmo black hardware.

For 2008 the neck was change to a 5-piece jatoba nad bubinga and bubinga and the EQ to an EQB-II DX 2-Band.

The EDB555 is a similar five string version.

The EDB550 was discontinued after 2010.

Specifications[]

Related content: Ergodyne series | Models-icon
Specifications for EDB550
Model name: EDB550
Year(s) offered: 2007-2010
Sold in: Asia & South America 2007-2008 / Europe / Japan 2007-2008 / North America 2007-2009 / USA 2007-2008
Made in: Indonesia
Price: MSRP: JP¥: 84,000 (2007-2008)
Finish(es): Black Flat (BKF) / Natural Flat (NTF) 2007-2008 / Walnut Flat (WNF)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
Accu-cast B100 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
EDB4
Neck material:
"2007": 5-piece wenge/ bubinga
"2008-2010": 5-piece jatoba/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dots and side dots
Frets:
24 / medium
Nut:
plastic (38mm)
Machine heads:
Ibanez Die-cast
Electronics/ Strings
Bridge pickup:
Duncan Ibanez passive
Neck pickup:
Duncan Ibanez passive
Electronics:
"2007": EQBII 2-Band EQ active
"2008-2010": EQB-II DX 2-Band
Controls:
Volume, Balancer / 2-Band EQ
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Other finishes

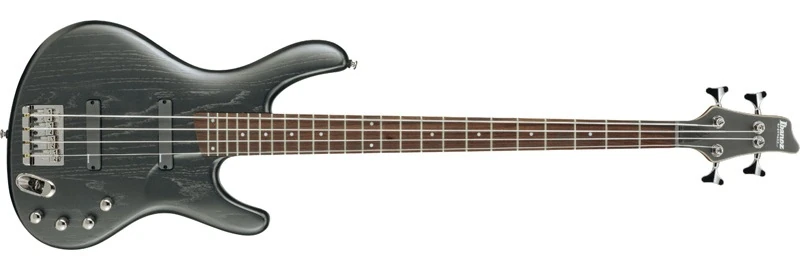

EDB550-BKF
Black Flat

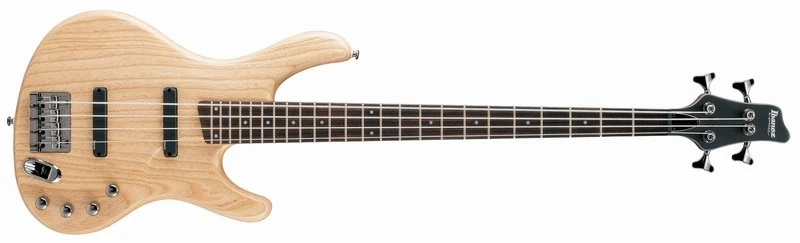

EDB550-NTF
Natural Flat
Additional details
EDB body shape
Curved back shape
