EDA905

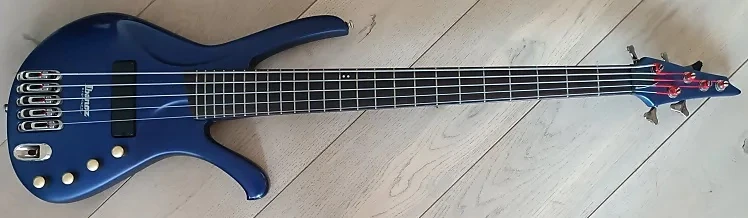

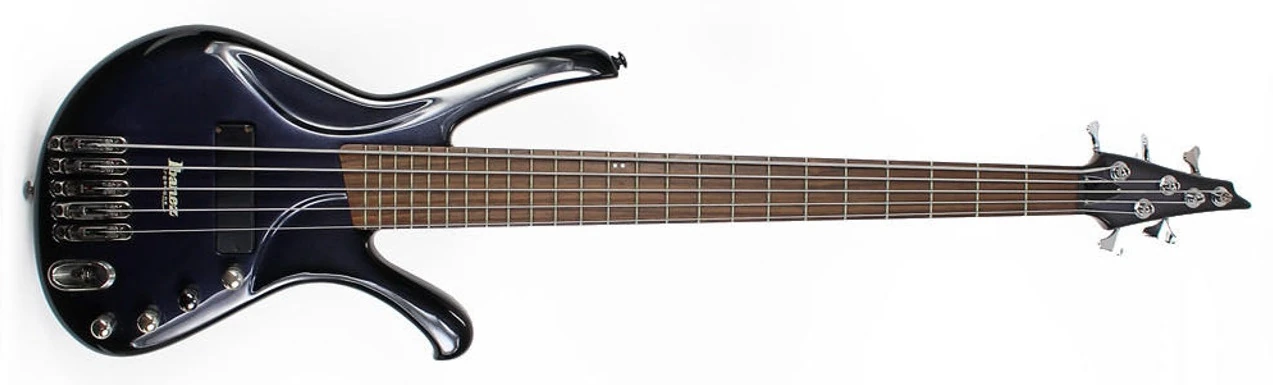

EDA905 Navy Metallic Sunburst (more images)

The EDA905 is a five-string Ergodyne series solid body electric bass model introduced by Ibanez for 2001. It was produced in South Korea by Cor-Tek.

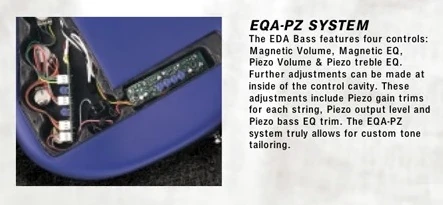

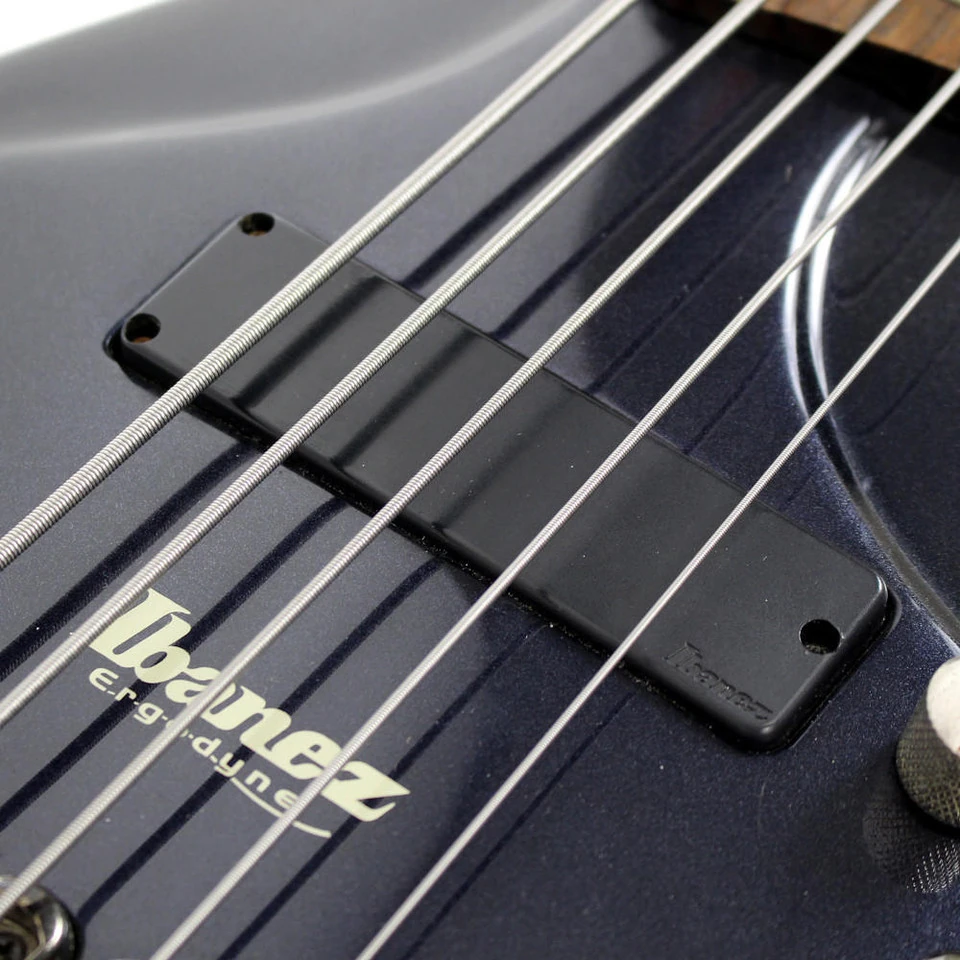

The EDA905 features a luthite body bolted to a maple neck with a 24-fret rosewood fingerboard with offset abalone dot position markers at the twelfth fret and white side dots. The body has a sculpted, asymmetrical double cutaway design with distinctive, narrow, curving horns; the logo is inlaid into the guitar top between the pickup and bridge. Components include a single "Ibanez Dynamix Full Range" DFR-N5 pickup mounted halfway between the bridge, an EQA-PZ system EQ with piezo active tone control, a Mono-rail II bridge with individual volume adjustable polyphonic piezo saddle pickups and 16.5mm string spacing, a barrel-style stereo output jack, a plastic nut and die-cast tuning machines.

The EDA900 is a similar four string version.

The EDA905 was discontinued after 2004.

Specifications[]

Related content: Ergodyne series |

Specifications for EDA905

Model name: EDA905

Year(s) offered: 2001-2004

Sold in: Asia & South America 2003-2004 / Europe / Japan 2001-2003 / USA

Made in: South Korea

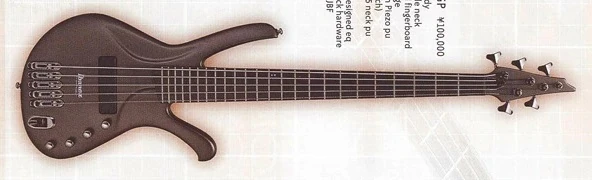

Price: MSRP: JP¥: 95,000 (2001); JP¥: 100,000 (2002-2003) / US$: 899.99 (2001)

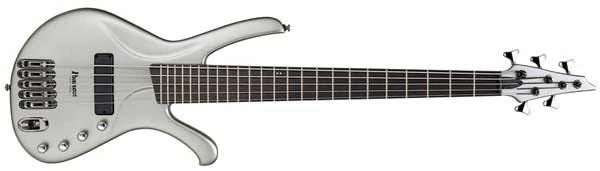

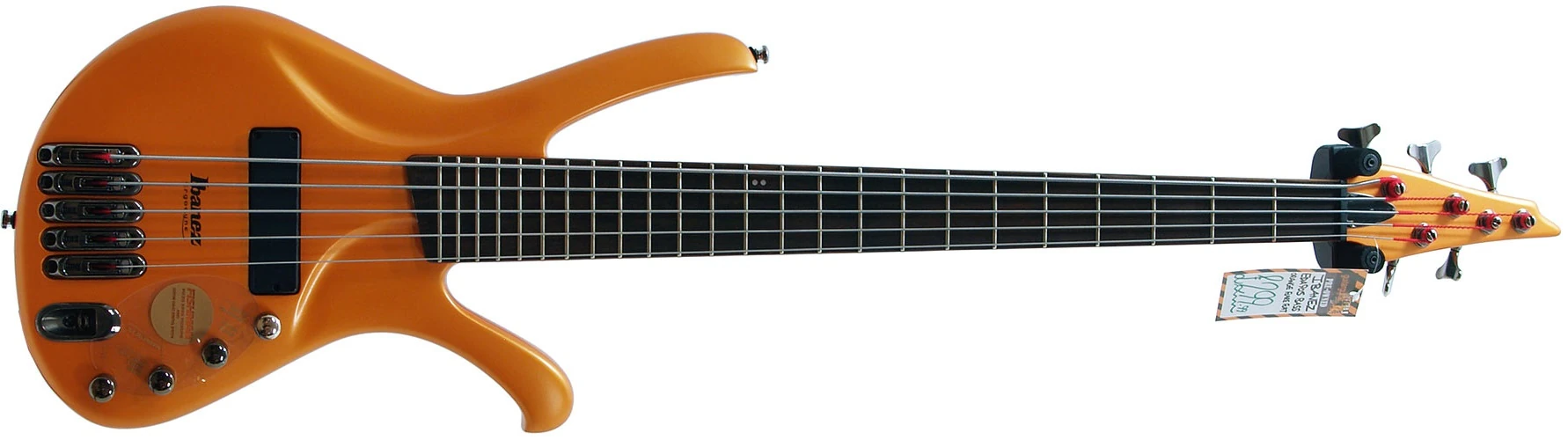

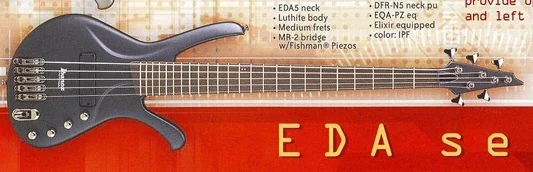

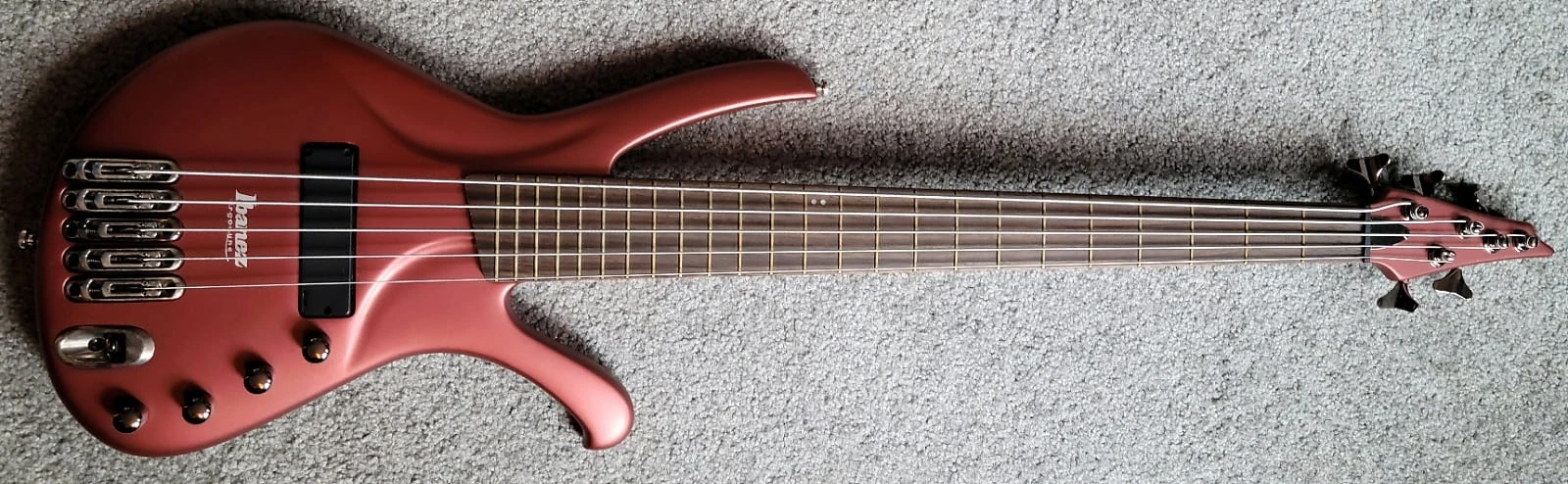

Finish(es): Flare Orange Flat (FOF) 2003 USA only / Gray Pewter (GP) 2001-2003 Japan only / Iron Pewter Flat (IPF) 2003 / Jewel Blue Flat (JBF) 2001-2003 / Navy Metallic Sunburst (NMS) 2004 USA only / Red Rock Flat (RRF) 2001-2002 USA only / Silver Flat (SVF) 2001-2003 / Wonder Zinc (WZ) 2004

Body

Body type:
Solid body

Body material:
Luthite

Neck joint:
AANJ

Bridge:

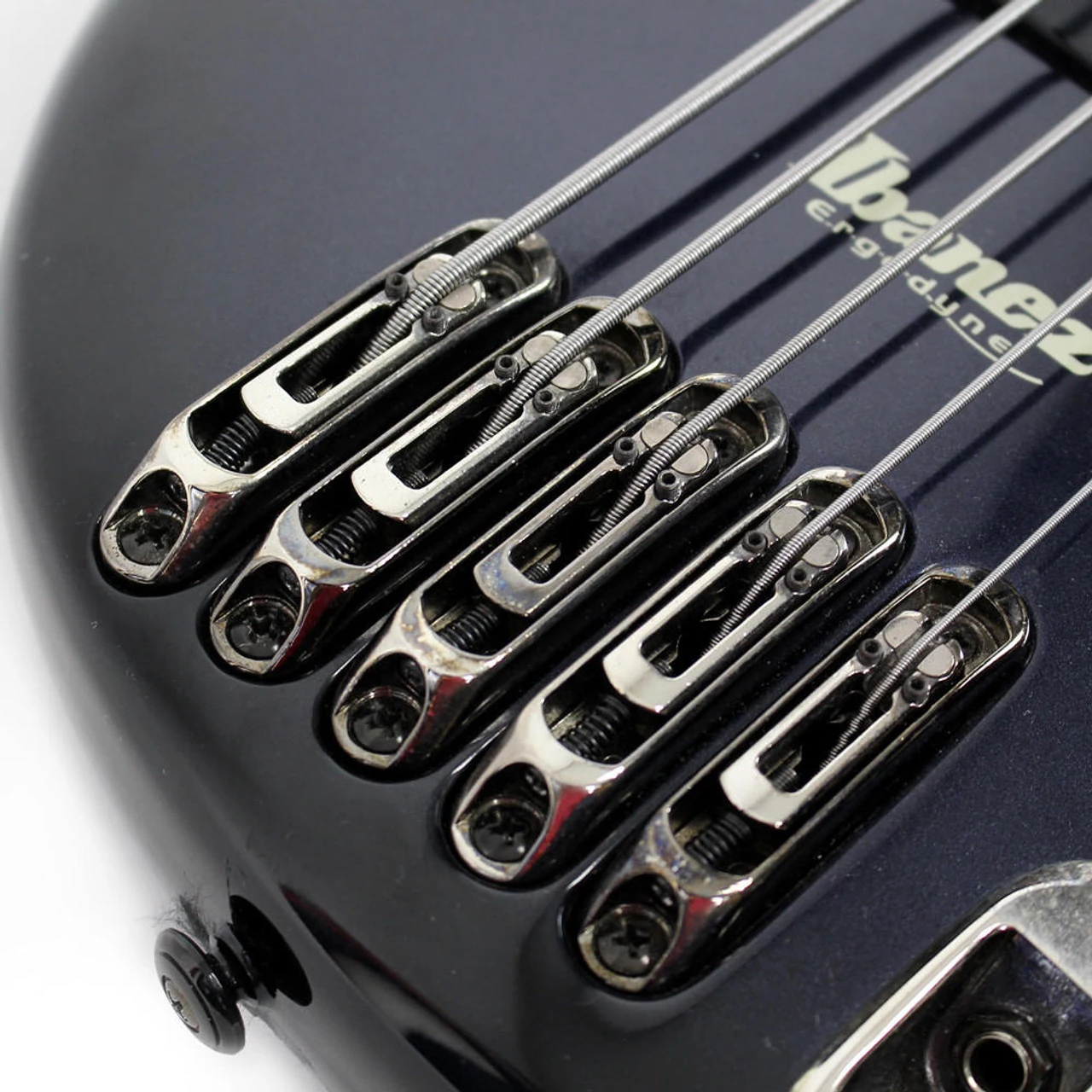

MR-2 w/ Fishman piezo (16.5mm string spacing)

Knob style:

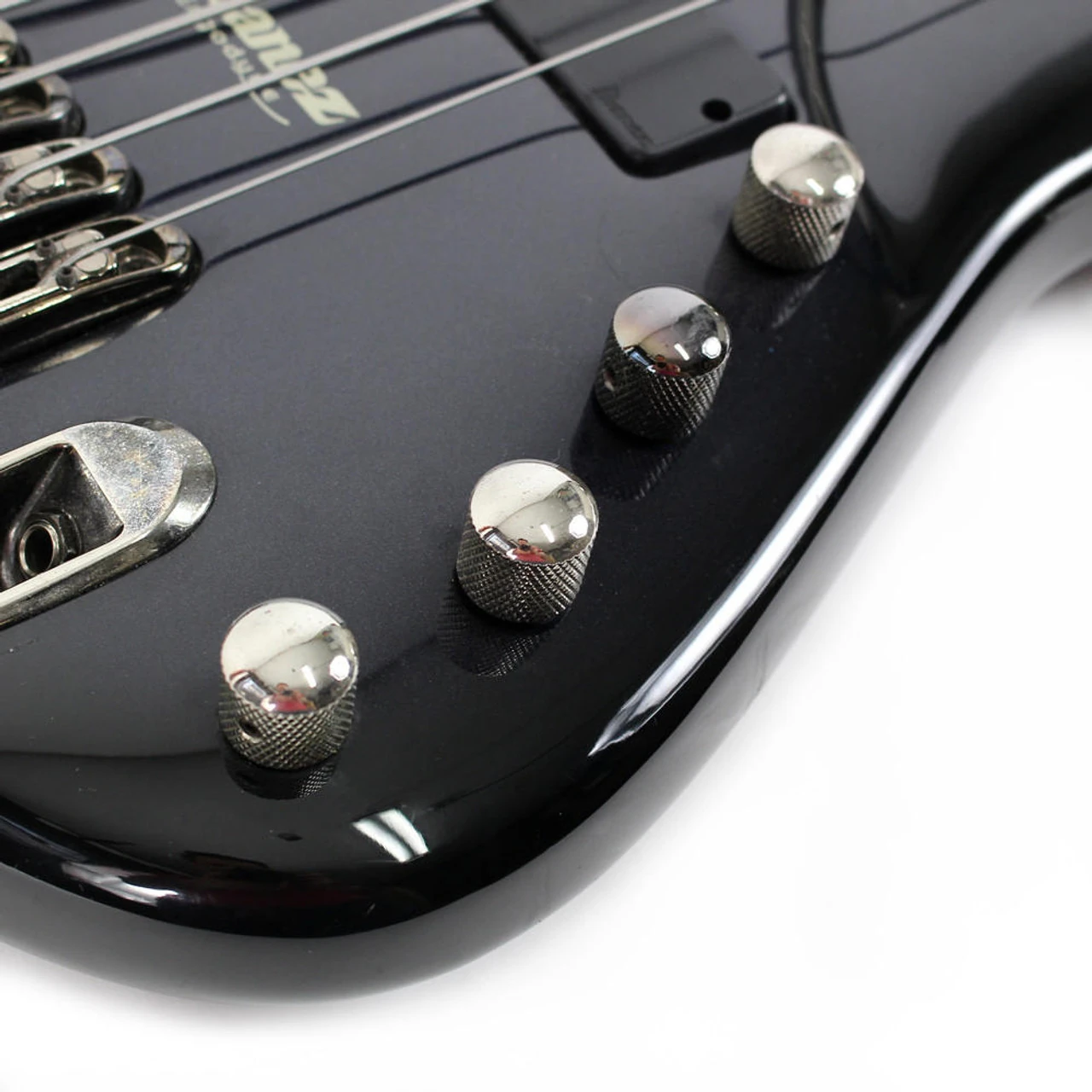

Knurled metal dome

Hardware color:
Cosmo black

Neck

Neck type:
EDA5

Neck material:
3-piece maple

Scale length:
864mm / 34"

Fingerboard material:
Rosewood
