2001-EDA900-JBF

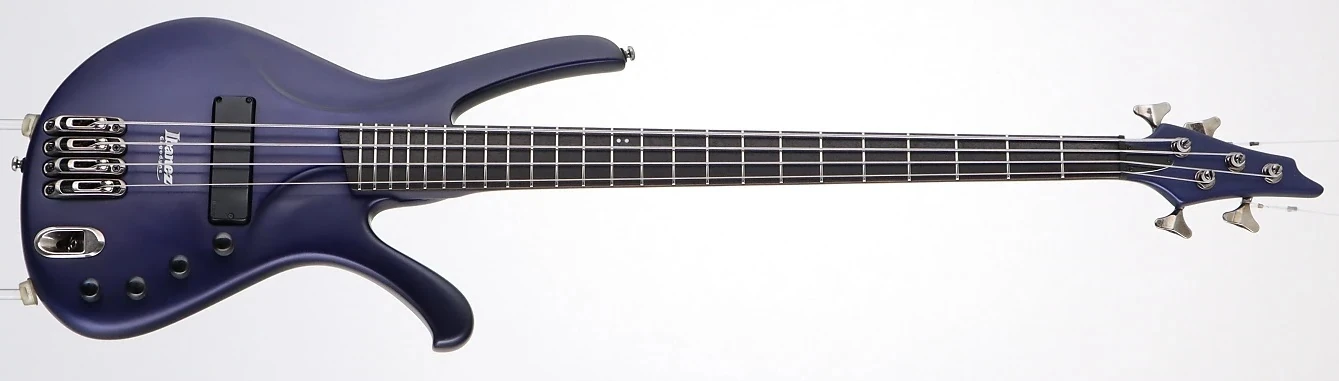

EDA900 Jewel Blue Flat (more images) Red copyright sprite

The EDA900 is an Ergodyne series solid body electric bass model introduced by Ibanez for 2001. It was produced in South Korea by Cor-Tek.

The EDA900 features a luthite body bolted to a maple neck with a 24-fret rosewood fingerboard with offset abalone dot position markers at the twelfth fret and white side dots. The body has a sculpted, asymmetrical double cutaway design with distinctive, narrow, curving horns; the logo is inlaid into the guitar top between the pickup and bridge. Components include a single "Ibanez Dynamix Full Range" DFR-N5 pickup mounted halfway between the bridge, an EQA-PZ system EQ with piezo active tone control, a Mono-rail II bridge with individual volume adjustable polyphonic piezo saddle pickups and 16.5mm string spacing, a barrel-style stereo output jack, a plastic nut and die-cast tuning machines.

The EDA905 is a similar five string version.

The EDA900 was discontinued after 2004.


Specifications[]

Related content: Ergodyne series | Models-icon
Specifications for EDA900
Model name: EDA900
Year(s) offered: 2001-2004
Sold in: Asia & South America 2003-2004 / Europe / Japan 2001-2003 / USA 2001-2003
Made in: South Korea
Price: MSRP: JP¥: 85,000 (2001); JP¥: 90,000 (2002-2003) / US$: 799.99 (2001)
Finish(es): Crimson Burst (CRB) / Gray Pewter (GP) 2001-2003 Japan only / Iron Pewter Flat (IPF) 2003 / Jewel Blue Flat (JBF) 2001-2003 / Navy Metallic Sunburst (NMS) 2004 / Silver Flat (SVF) 2001-2003
Body
Body type:
Solid body
Body material:
Luthite
Neck joint:
AANJ
Bridge:
MR-2 w/ Fishman piezo (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
EDA4
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dots and side dots
Frets:
24 / medium
Nut:
plastic (45mm)
Machine heads:
Ibanez Die-cast
Electronics/ Strings
Pickup configuration:
H
Bridge pickup:
Fishman piezo bridge saddle
Neck pickup:
DFR-N5
Electronics:
EQA-PZ active
Controls:
Magnetic volume, Piezo volume, Magnetic EQ, Piezo treble Boost/Cut
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Other finishes

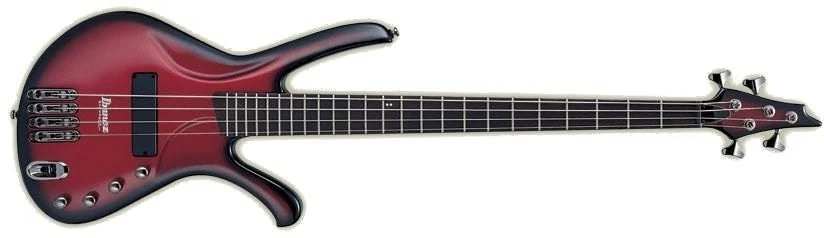

EDA900-CRB
Crimson Burst
EDA900-GP
Gray Pewter

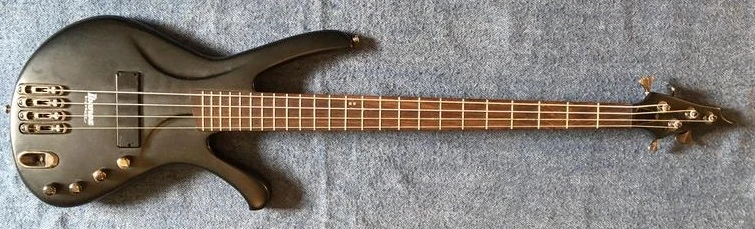

EDA900-IPF
Iron Pewter Flat

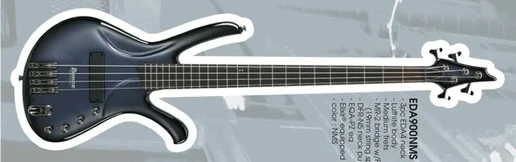

2004 EDA900-NMS
Navy Metallic Sunburst

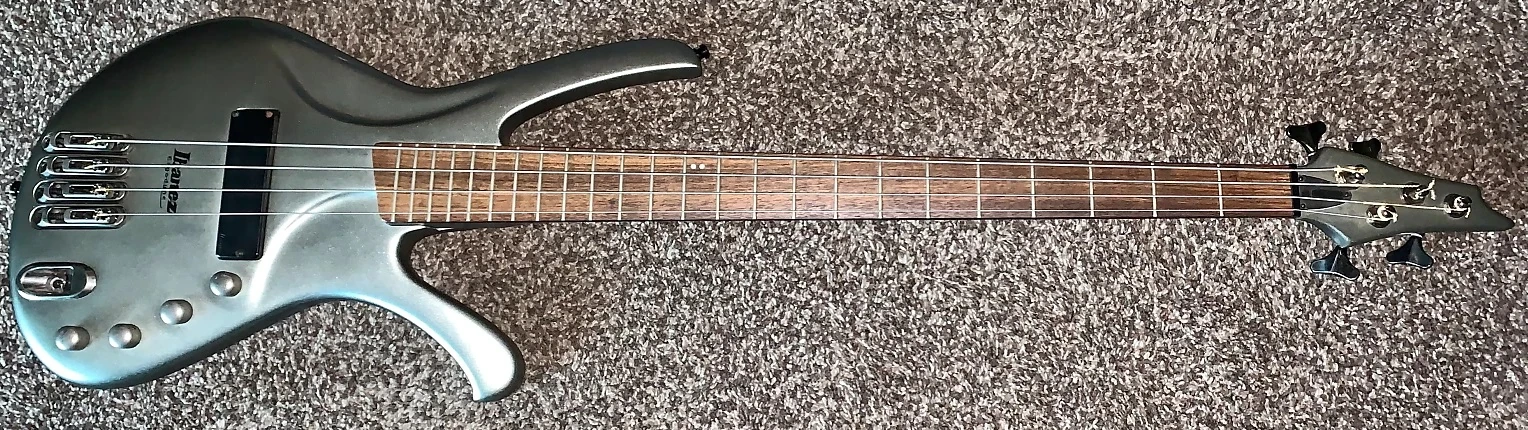

EDA900-SVF
Silver Flat
Additional details

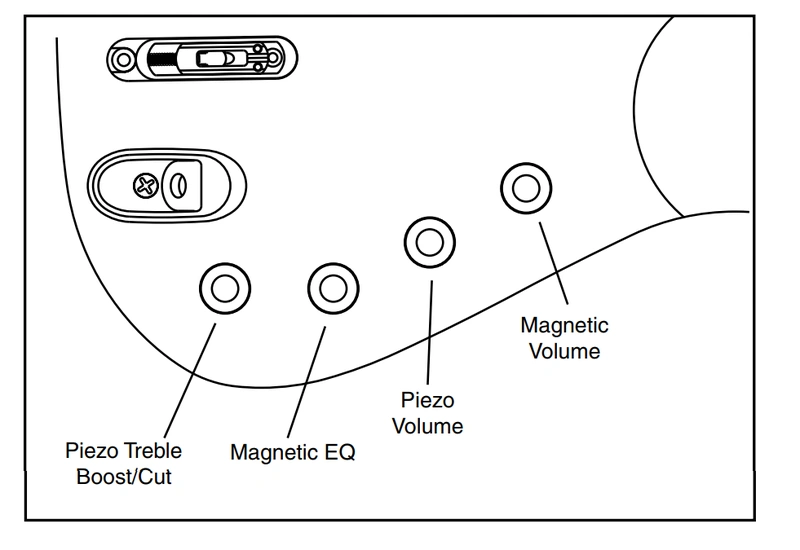

EDA900-905 controls
Controls layout
