DTME

Sign in to edit
2001 DTME TBL

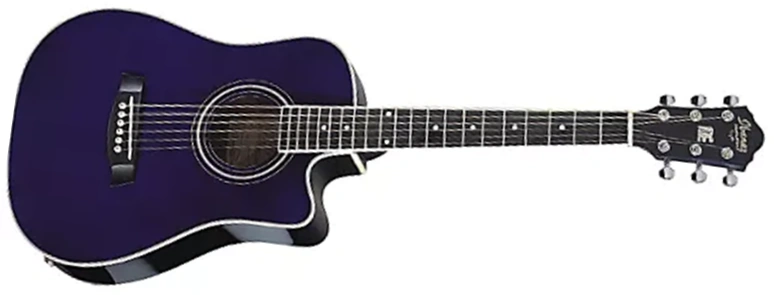

DTME Transparent Blue High Gloss (more images) Red copyright sprite

The DTME is a "Mini-AE" Daytripper series acoustic/ electric guitar model introduced by Ibanez in 2001. It was produced in China.

The DTME features a mini dreadnought body with a soft Venetian cutaway spruce top on mahogany back and sides. The round soundhole has a white ring and is trimmed with multi-ply purfling rosette. The mahogany neck has a 20-fret rosewood fingerboard with pearl dot position markers and a matching headstock. Components include an Ivorex II saddle on a compensated rosewood bridge, an Ivorex II nut, and Die-cast chrome covered machine heads.

Electronics consist of an Ibanez piezo pickup with an Ibanez AEQ201 2-Band EQ preamp.

The DTMA is the acoustic version.

The DTME was discontinued after 2008.

Specifications[]

Related content: Daytripper series | Models-icon
Specifications for DTME
Name: DTME
Year(s) offered: 2001–2008
Sold in: USA
Made in: China
Finishes: Transparent Blue (TBL)
Body
Body type:
Acoustic
Body shape:
Dreadnought (Mini-AE)
Dimensions:
  Body length: 406mm/ 16"
  Width: 318mm/ 12½"
  Depth: 89mm/ 3½"
Top:
  Material: Spruce
  Bracing: X
  Finish: Gloss
  Binding: white around top
Back/sides:
  Material: Mahogany
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
with ring w/multi-ply purfling
Neck
Neck profile:
Daytripper
Neck material:
1-piece mahogany
Neck finish:
laminated
Neck joint:
Dovetail @ 14th fret
Scale length:
571mm/ 22½"
Fingerboard:
rosewood w/ white binding
Inlays:
Pearl dots w/ black side dots
Frets:
20 nickel silver
Nut:
Ivorex II (43mm)
Machine heads:
Ibanez die-cast
Strings (factory):
steel
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components/ case
Pickup:
Ibanez piezo
Preamp:
Ibanez AEQ201 w/ 2-Band EQ
EQ/controls:
Volume / 2-band EQ (bass & treble)
Output jack(s):
¼" endpin
Battery:
9V
Bridge:
rosewood (compensated)
Bridge pins:
Ibanez Advantage bridge pins (white w/ black dot)
Saddle:
Ivorex II
Hardware color:
Chrome
Recommended gig bag:
DTFB

Images[]

Additional details

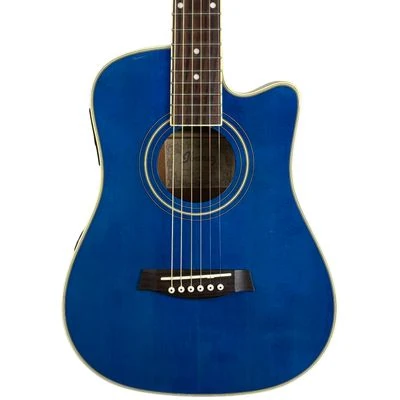

2001 DTME TBL front
Body front

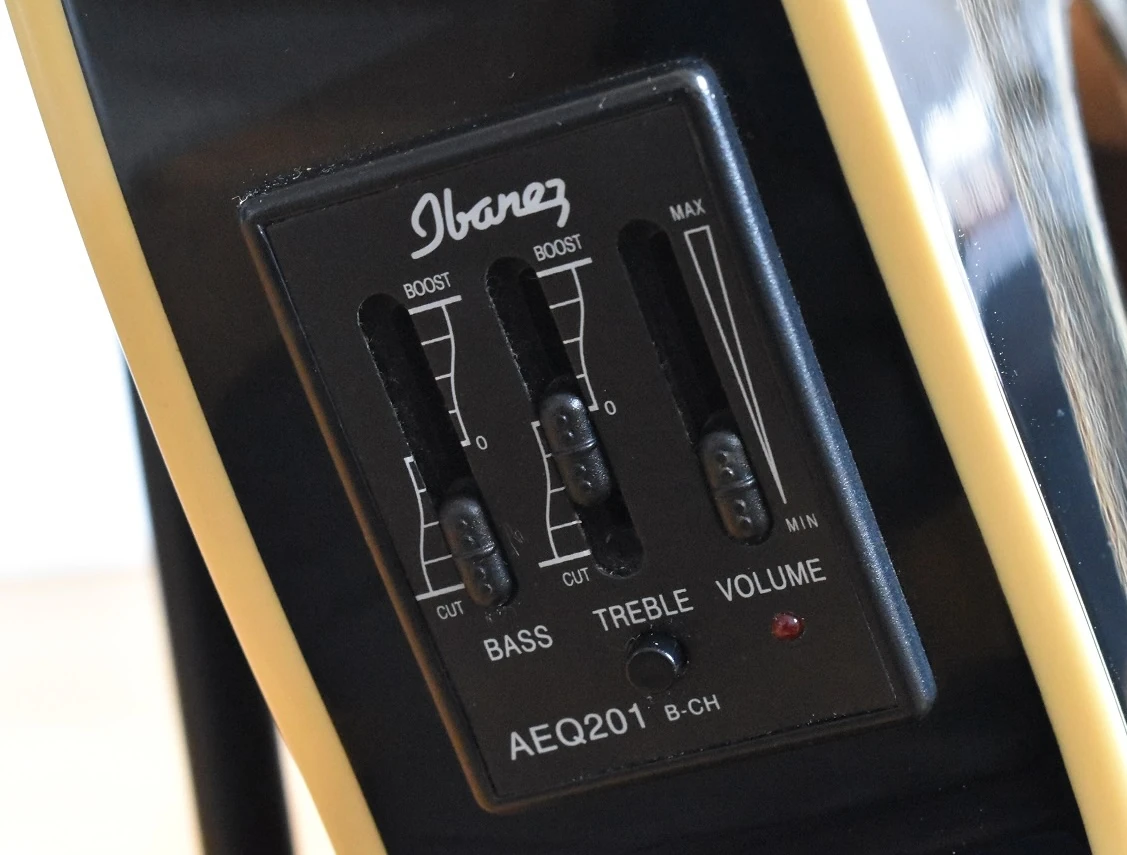

Ibanez AEQ201 preamp
AEQ201 preamp
