DT520FM CRS
DT520FM Cherry Sunburst (more images) Red copyright sprite

The DT520FM is a Destroyer series solid body electric guitar model introduced by Ibanez in late 2013. It was produced in China as part of the X series. It was also offered packaged with a gig bag as the DT520FMGB.

The DT520FM features a flamed maple top with cream binding on a mahogany body mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and split block position markers. Components include dual DiMarzio humbucking pickups with individual volume controls, a fixed bridge and tailpiece and gold Sure Grip III knobs.

The DT520 is a similar model which lacks the flamed maple top. The DT1GFM was a similar limited edition model with coil-split functionality and gold hardware which was offered exclusively by American music retailers Guitar Center and Musician's Friend.

The DT520FM was discontinued after 2016.

Specifications[]

Related content: Destroyer series | X series | Models-icon
Specifications for DT520FM / DT520FMGB
Model name: DT520FM / DT520FMGB
Year(s) offered: 2013–2016
Sold in: USA
Made in: China
Finish(es): Cherry Sunburst (CRS)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top and cream binding
Neck joint:
Set-in
Bridge:
Tight Tune fixed
Tailpiece:
Tight Tune
Knob style:
Sure Grip III gold
Hardware color:
Chrome
Neck
Neck type:
DT
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / jumbo
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Two volumes / master tone / 3-way toggle pickup selector

Images[]

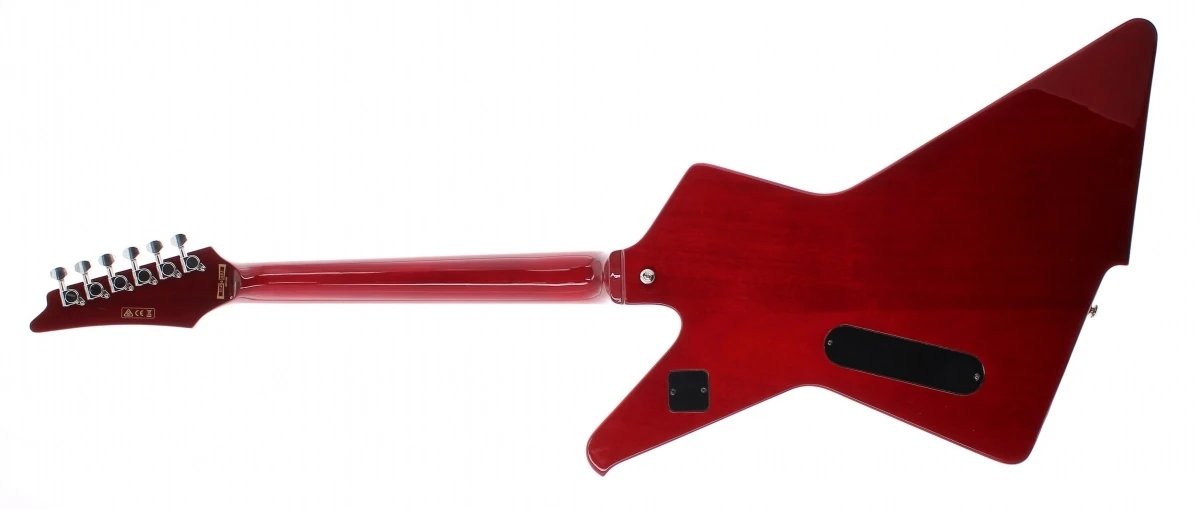

DT520FM CRS rear
Ibanez DT520FM-CRS ( Rear: Mahogany body mated to a Set-in 1-piece mahogany DT neck and chrome machine heads ) Red copyright sprite
Additional details

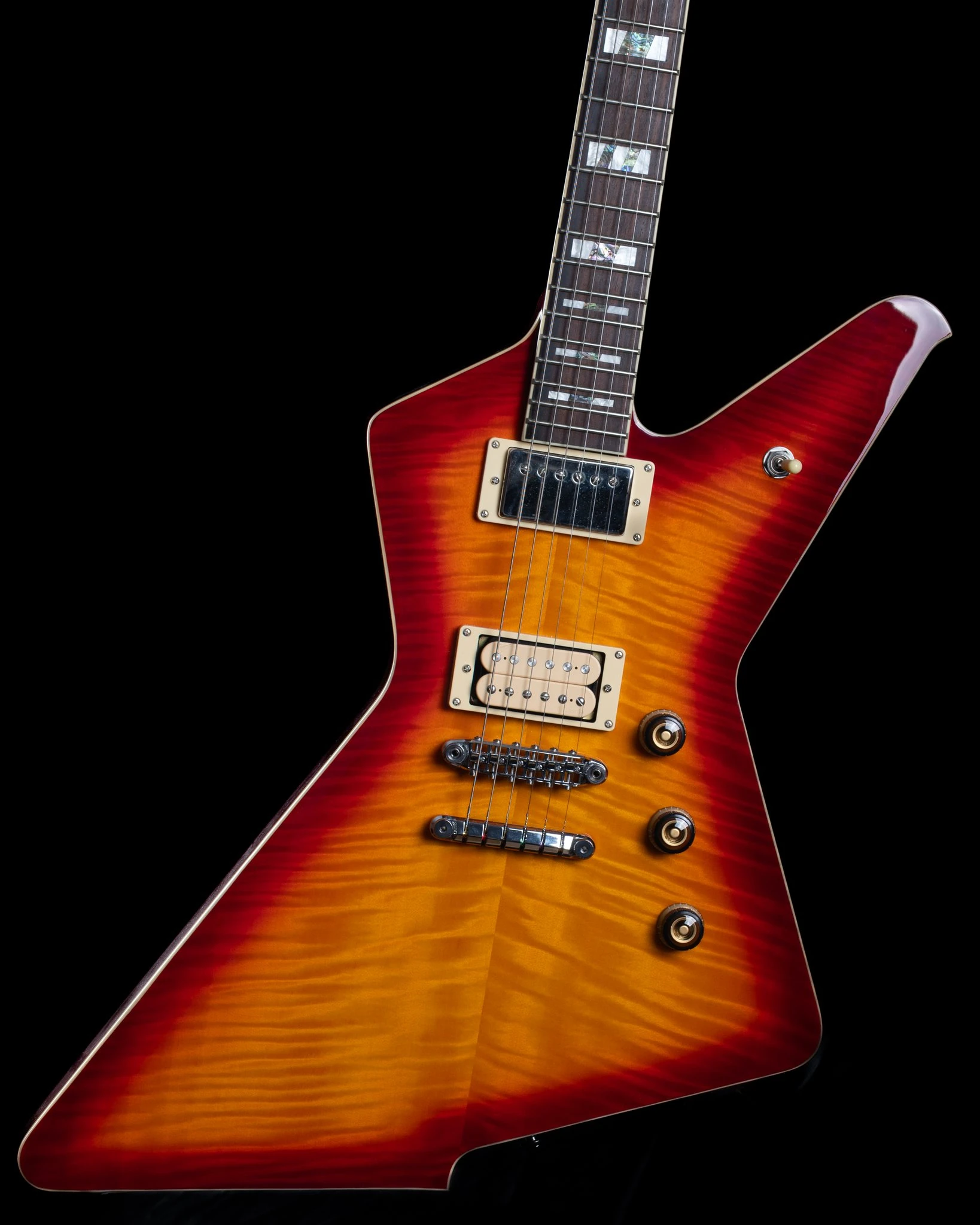

DT520FM front
Front of body [1]

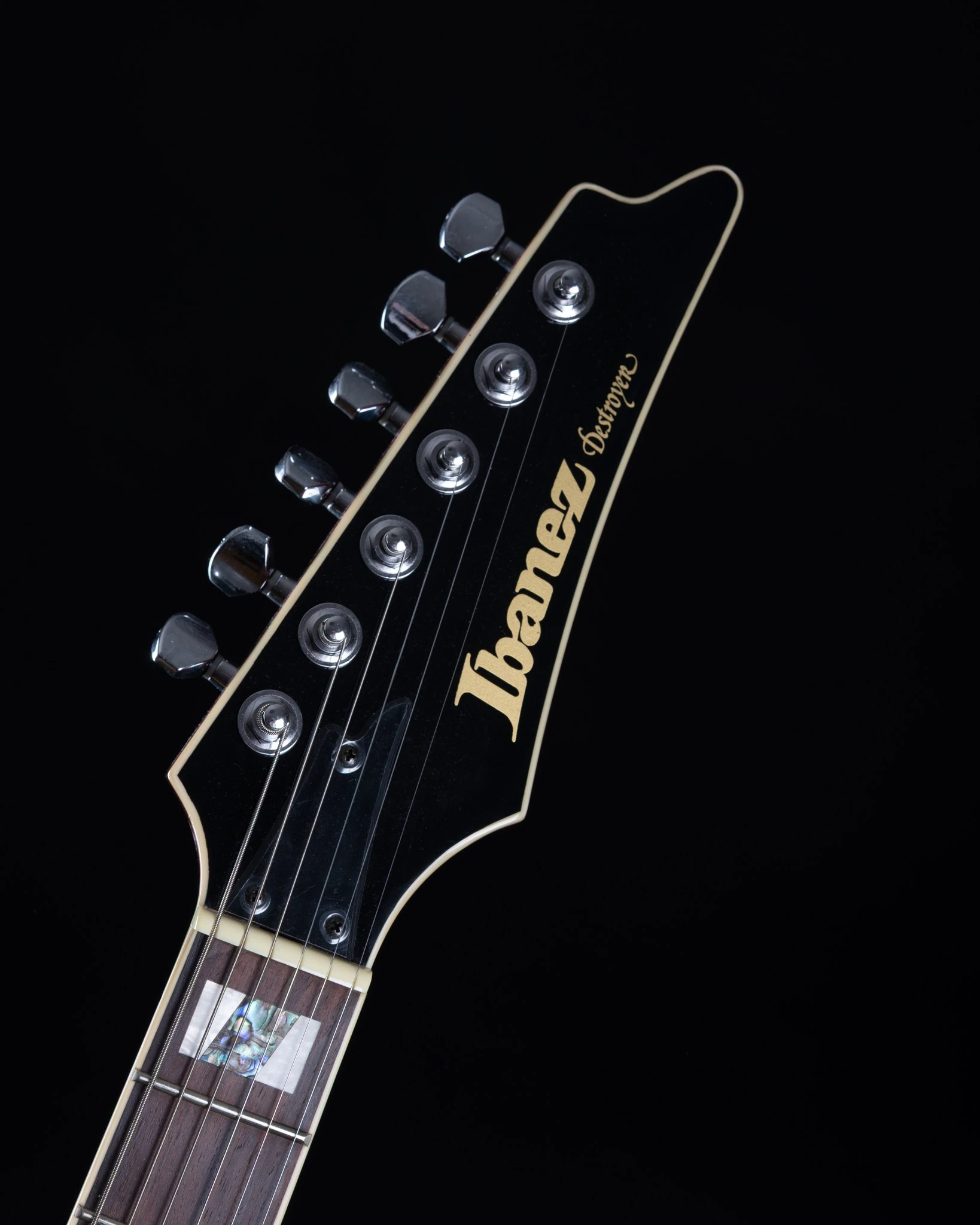

DT520FM headstock
Headstock [1]

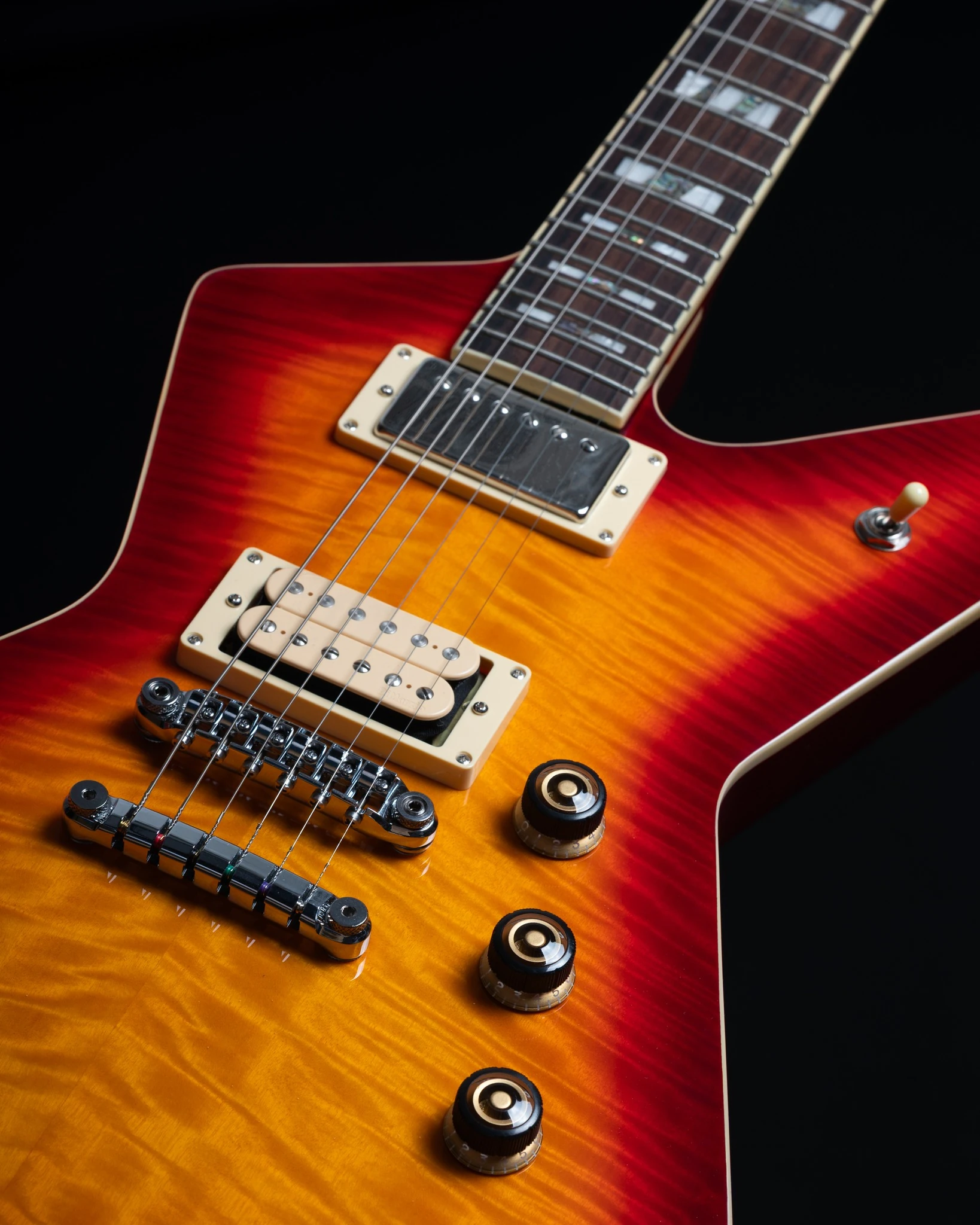

DT520FM bridge
Tight tune (bridge and tailpiece) [1]
