DT520 BK

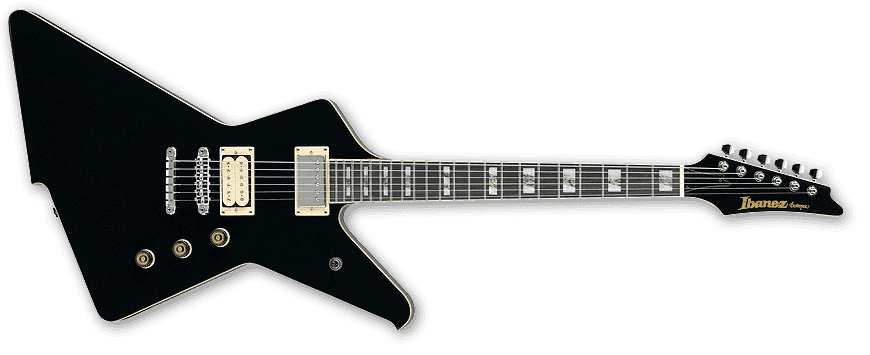

DT520 Black Red copyright sprite

The DT520 is a Destroyer series solid body electric guitar model introduced by Ibanez in late 2013. It was produced in China as part of the X series. It was also offered in a package with a gig bag as the DT520GB.

The DT520 features a mahogany body with cream binding mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and split block position markers. Components include dual DiMarzio humbucking pickups with individual volume controls, a fixed bridge and tailpiece and gold Sure Grip III knobs.

The DT520FM is a similar model with a flamed maple top.

The DT520 was discontinued after 2016.

Specifications

Specifications for DT520
Model name: DT520 / DT520GB
Year(s) produced: 2013–2016
Sold in: USA
Made in: China
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany w/ binding
Neck joint:
Set-in
Bridge:
Tight Tune fixed
Tailpiece:
Tight Tune
Knob style:
Sure Grip III (gold)
Hardware color:
Chrome
Neck
Neck type:
DT
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Acrylic & abalone split block
Frets:
22 / jumbo
Machine heads:
Ibanez die-cast, 6 inline
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
2 volume / 1 tone / 3-way toggle
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
