DCM100
DCM100 Red copyright sprite

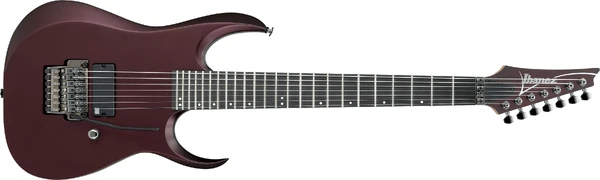

The DCM100 is a seven-string solid body electric guitar introduced by Ibanez in mid-2014. It is a signature guitar of Dino Cazares of the American heavy metal band Fear Factory. It was made in Japan by FujiGen as part of the upscale Prestige line.

The DCM100 is based on the RGD series. It features a mahogany body bolted to a custom titanium reinforced long-scale maple and bubinga neck with reversed headstock and a 24-fret rosewood fingerboard with mother of pearl dot position markers offset along the bottom of the neck. Components include a Lo-Pro Edge 7 tremolo bridge, a single active custom Seymour Duncan humbucking pickup with a single volume knob (no tone control) and Gotoh tuning machines.

The body cavity cover features Cazares' autograph.

The DCM100 was discontinued in 2017.

Specifications[]

Related content: Prestige series | Signature series | Models-icon
Specifications for DCM100
Model name: DCM100
Year(s) offered: 2014–2017
Sold in: Worldwide
Made in: Japan
Finish(es): Flat burgundy
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Lo-Pro Edge 7 tremolo
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
DCM
Neck material:
3-piece maple/ bubinga w/ KTS titanium rods
Scale length:
673.5mm/ 26½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Offset mother of pearl dot
Frets:
24 / jumbo (Prestige edge treatment)
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
H
Bridge pickup:
Seymour Duncan Retribution (H) active/ ceramic
Controls:
Single volume
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046/.054
Factory tuning:
1D,2A,3F,4C,5G,6D,7A

Video[]

Dino Cazares on his DCM100 signature guitar
