CMM1 IV

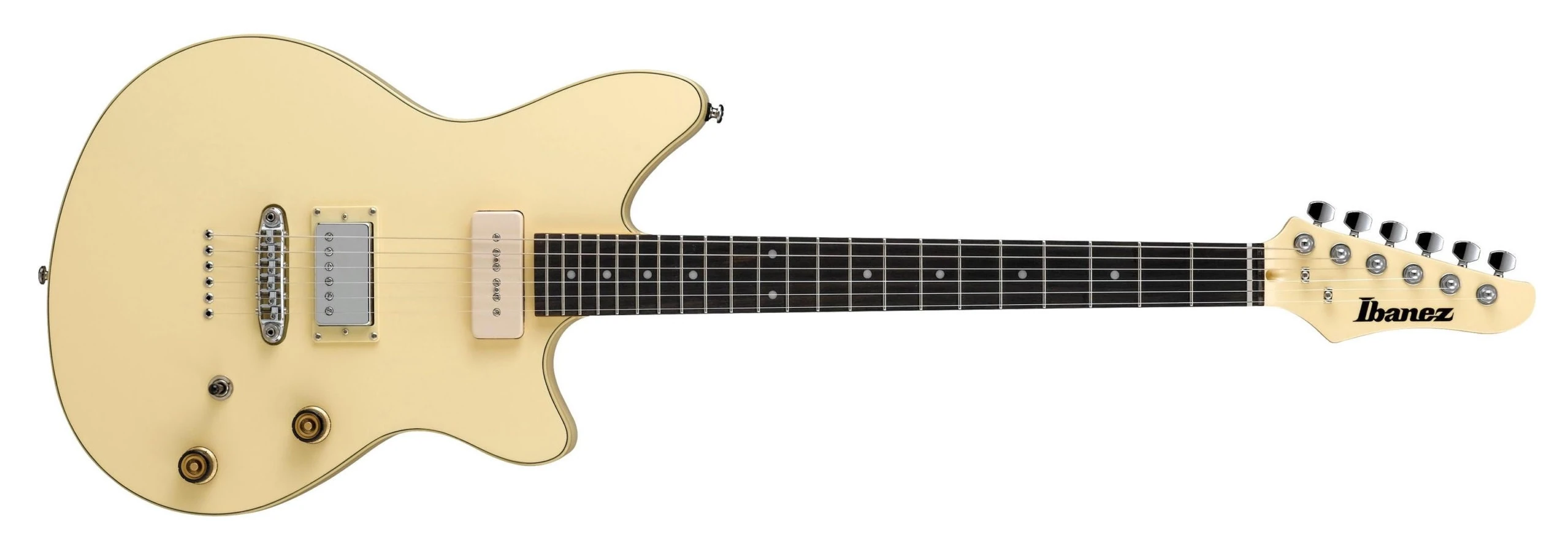

CMM1 Ivory (more images) Red copyright sprite

The CMM1 is a solid body electric guitar introduced by Ibanez in 2014. It is the first Ibanez signature guitar of Chris Miller of the English rock band You Me at Six. The CMM1 is based on the offset-bodied Roadcore series and was made in Indonesia.

The CMM1 has a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include a Tight Tune fixed bridge with through-body string routing with the pickups consisting of a soapbar-type single coil pickup in the neck position and a covered humbucker pickup in the bridge with a coil-split switch on the tone control. Each guitar also features an autographed control-cavity plate.

The CMM1 was discontinued after 2015 and replaced by the quite similar CMM2.

Specifications[]

Specifications for CMM1
Model name: CMM1
Year(s) offered: 2014–2015
Sold in: Worldwide
Made in: Indonesia
Finish(es): Ivory (IV)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Tight Tune fixed
Hardware color:
Chrome
Neck
Neck type:
CMM
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
White plastic (42mm)
Electronics
Pickup configuration:
HS
Bridge pickup:
Std. H passive/ ceramic
Neck pickup:
Std. SS1 soapbar passive/ ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector / push-pull coil-split on tone

Images[]

Additional details

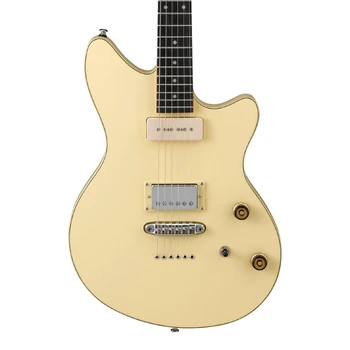

CMM1 front
Front of body

Video[]

Chris Miller of You Me At Six on the design and features of his Ibanez CMM1 signature model
