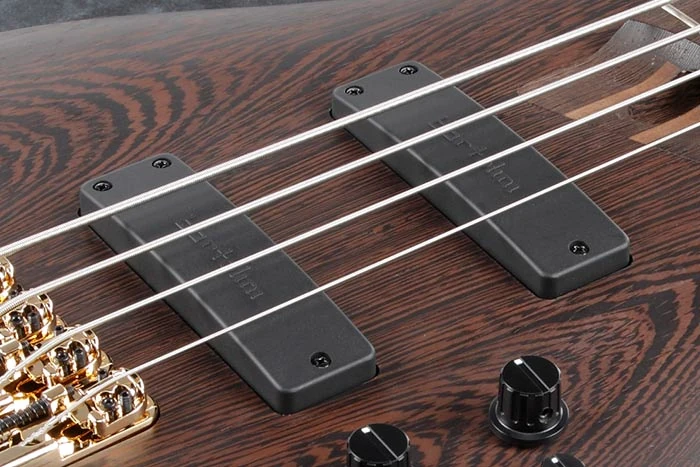

2022 Bartolini-Custom-pickups SR5000
Bartolini Custom pickups in SR5000 Red copyright sprite

Bartolini is an American company based in California that specializes in producing a range of guitar and bass pickups and electronics. The models listed here are factory-installed on Ibanez guitars. This list is not meant represent the full range of Bartolini pickups. It was founded by Bill Bartolini in 1978.

Bill Bartolini
Bill Bartolini (1938-2023) Enlarge sprite

Before he got into electronics, Bill Bartolini and his wife Patricia studied the science of acoustics, becoming experts. According to NAMM, their publications from the 60s and 70s became “standard reference materials on the subject of waveforms and acoustic sound patterns.” Bartolini began creating magnetic pickups in the early 60s as part of his research into the acoustics of nylon string instruments.

He began his pickup company under the brand name “Hi-A,” in 1973 with which he made quadraphonic, hexaphonic, and monophonic designs. In 1978 he changed the label to Bartolini (By this time, the Bartolini name was well established among the bass community). During this time, he began innovating in the design and testing of pickups by introducing square-wave magnetic pulse testing, the mechanical string picker, and the first preamplified pickup with parametric bandpass enhancement.

Bartolini became famous in the bass world for his pickups, which are still used by so many companies for their instruments. He would retire from the business in 2014. Clyde Clark took up the reigns and has been running Bartolini Pickups & Electronics ever since.

Bill passed away in September 2023; Aside from his incredible designs, he will also be remembered for his support and mentorship in the music community.

Pickup descriptions[]

Bartolini Custom[]

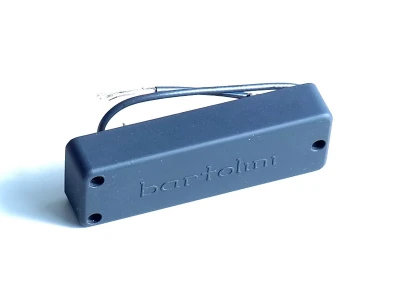

Bartolini Custom 4-string neck (flat version)
Brand: Bartolini
Model no.: BPU57RT4N
Year introduced: 2002
Discontinued after: 2014
Type: Passive
Construction: Humbucking soapbar
Position: neck
Wiring: 2-conductor
Used in: SR3000E, SR5000E, many others
Bartolini-Custom-4-neck BPU57RT4N 1D 01
Description: They deliver "excellent clarity with well-balanced tonal response".[1] The neck pickup tone is very deep and the bridge pickup tone is bright. This allows the widest tonal sweep from the blend control.[2]

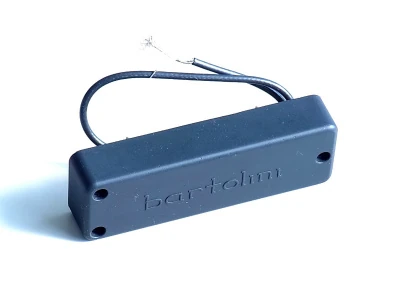

Bartolini Custom 4-string bridge (flat version)
Brand: Bartolini
Model no.: BPU57RT4B
Year introduced: 2002
Discontinued after: 2014
Type: Passive
Construction: Humbucking soapbar
Position: bridge
Wiring: 2-conductor
Used in: SR3000E, SR5000E, many others
Bartolini-Custom-4-bridge BPU57RT4B 1D 01
Description: They deliver "excellent clarity with well-balanced tonal response".[1] The neck pickup tone is very deep and the bridge pickup tone is bright. This allows the widest tonal sweep from the blend control.[2]

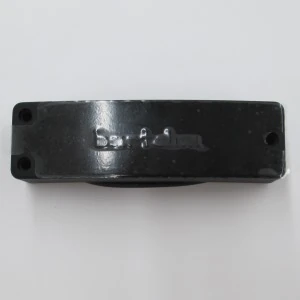

Bartolini Custom 4-string neck (arched version)
Brand: Bartolini
Model no.: 3PU1DC0001
Year introduced: 2015
Type: Passive
Construction: Humbucking soapbar
Position: neck
Wiring: 2-conductor
Used in: SR4600, SR5000, others
Bartolini-Custom-4-neck 3PU1DC0001 1D 01
Description: The Bartolini Custom pickups are arched to mirror the radius of the fretboard which positions each string equally distant from the pickup magnet.[3] The neck pickup tone is very deep and the bridge pickup tone is bright. This allows the widest tonal sweep from the blend control.[4]

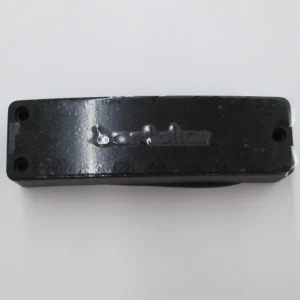

Bartolini Custom 4-string bridge (arched version)
Brand: Bartolini
Model no.: 3PU1DC0002
Year introduced: 2015
Type: Passive
Construction: Humbucking soapbar
Position: bridge
Wiring: 2-conductor
Used in: SR4600, SR5000, many others
Bartolini-Custom-4-bridge 3PU1DC0002 1D 01
Description: The Bartolini Custom pickups are arched to mirror the radius of the fretboard which positions each string equally distant from the pickup magnet.[3] The neck pickup tone is very deep and the bridge pickup tone is bright. This allows the widest tonal sweep from the blend control.[4]

Sources[]

  1. 1.0 1.1 2002 Europe catalog (p. 51)
  2. 2.0 2.1 SR5000E product page, Ibanez USA, archived July 2010
  3. 3.0 3.1 SR5000 product page, Ibanez USA, archived September 2022
  4. 4.0 4.1 SR5000 product page, Ibanez USA, archived August 2016
