2020 BTB845 CBL 1P 03
BTB845 Cerulean Blue Burst Low Gloss (more images) Red copyright sprite

The BTB845 is a five string BTB series solid body electric bass model introduced by Ibanez for 2017. It was produced in Indonesia as part of the Standard line.

The BTB845 features neck through body construction with a poplar burl top and mahogany back on ash wings attached to a maple and rosewood neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini BH2 passive pickups with an Ibanez custom preamp with a three-band EQ, stainless steel frets including a zero fret, individually mounted Mono-rail V bridges with 19mm string spacing, a locking Neutrik stereo output jack, a plastic nut and Ibanez tuning machines.

For 2018 the rosewood fretboard was replaced with jatoba and the maple and rosewood neck was replaced with maple and walnut. For 2019 the mahogany back was replaced with okoume. For 2021 graphite reinforcing rods were added to the neck and the fretboard material was changed back to rosewood.

The BTB845F is a fretless version. The BTB846 is a six string version. The BTB745 is a similar model with a walnut top. The BTB845SC is a related Ibanez Bass Workshop model with a single-cutaway body. The BTB845V is a related Ibanez Bass Workshop model with a shorter scale 33" neck.

The BTB845 was discontinued after 2023 in all markets except USA; it was discontinued completely after 2024.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB845
Model name: BTB845
Year(s) offered: 2017–2024
Sold in: Americas & Oceania 2020–2023 / Asia & Africa 2020–2023 / China 2020–2023 / Europe 2020–2023 / Japan 2017–2021 / USA 2017–2020 / USA & Canada 2021–2024
Made in: Indonesia
Price: MSRP: US$1,377.76 (2017)[1] / ¥ 140,000 pre-tax (2021)[2] / US$1,446.65 (2024)[3] • SMAP: US$1,049.99 (2024)[3]
Finish(es): Cerulean Blue Burst Low Gloss (CBL) 2020–2024 / Deep Twilight Low Gloss (DTL) 2017–2020
Body
Body type:
Solid body
Body material:
2017–2018: Ash wings w/ poplar burl top & mahogany back
2019–2024: Ash wings w/ poplar burl top & okoume back
Neck joint:
Neck-thru
Bridge:
Mono-rail V (19mm string spacing)
Strap buttons:
Metal button
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) black plastic knobs
Hardware color:
Cosmo black
Neck
Neck type:
BTB5
Neck material:
2017: 5-piece maple/ rosewood
2018–2020: 5-piece maple/ walnut
2021–2024: 5-piece maple/ walnut w/ graphite reinforcing rods
Scale length:
889mm / 35"
Fingerboard material:
2017: Rosewood
2018–2020: Jatoba
2021–2024: Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 (+ zero fret) / medium stainless steel
Nut:
Plastic (47mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.80/.100/.130 (D'Addario NYXL45130SL)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
Electronics/ case
Bridge pickup:
Bartolini BH2 bridge passive
Neck pickup:
Bartolini BH2 neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/ adjustable mid freq. crossover
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / 3-way mid-frequency toggle
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
Recommended case:
WB250C or MRB350C
Recommended gig bag:
IBB540
Included gig bag:
Japan only

Images[]

Other available finish
2019 BTB845 DTL 1P 03
Deep Twilight Low Gloss
Additional details
2021 BTB845 CBL 1P 04 front

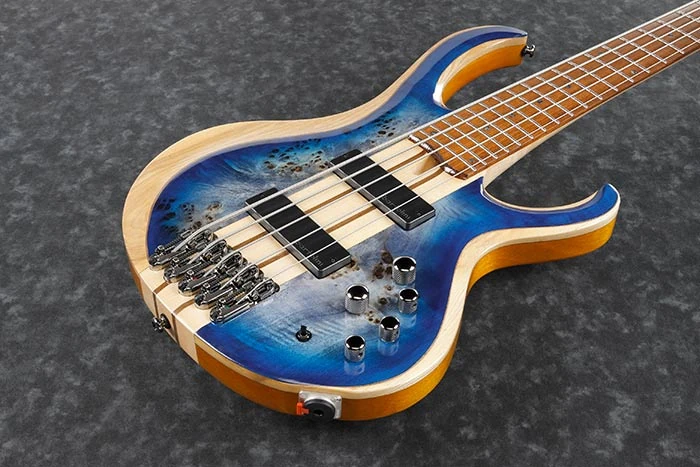

Front of body
2021 BTB845 CBL 1P 04 back

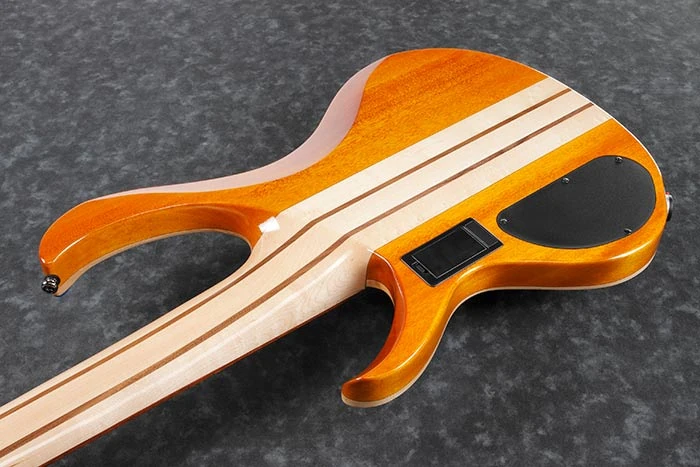

Rear of body
Controls-layout VB-Eq3 3-way-mid
Controls layout
SR-Prestige frequency response charts
EQ frequency response
