For the more recent model with the same name, see BTB776PB (2013–2016).

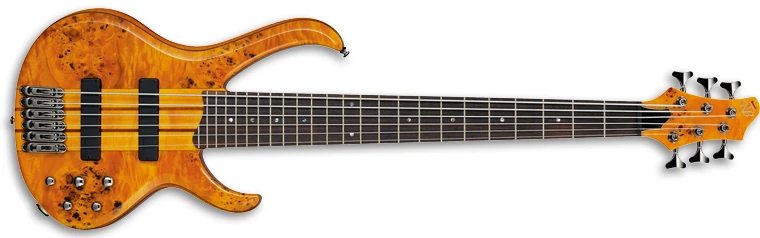

2009 BTB776PB AM 1P 01
BTB776PB Charcoal Brown (more images) Red copyright sprite

The BTB776PB is a six string BTB series solid body electric bass model introduced by Ibanez for 2009. It was made in Indonesia as part of the Standard line.

The BTB776PB features neck through body construction with a poplar burl top on mahogany wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini MK-2 passive pickups with a Bartolini preamp with a three-band EQ powered by two 9V batteries, individually mounted Mono-rail II bridges with 17mm string spacing, a locking Neutrik stereo output jack, a plastic nut and Ibanez tuning machines.

The BTB770PB and BTB775PB are similar four and five string models, respectively. The BTB676 is a similar model with a walnut top on ash body wings.

This BTB776PB was discontinued after 2012. It was replaced by another model with the same name that has some different specs.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB776PB (2009–2012)
Model name: BTB776PB (2009–2012)
Year(s) offered: 2009–2012
Sold in: Americas & Oceania 2009–2010 / Japan / USA
Made in: Indonesia
Price: MSRP: US$1,266.65 (2009) / ¥136,500 (2012) • SMAP: US$949.99 (2009)
Finish(es): Charcoal Brown (CN)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ poplar burl top
Neck joint:
Neck-thru
Bridge:
Mono-rail II (17mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
BTB6
Neck material:
5-piece maple/ bubinga
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / medium
Nut:
Black plastic (54mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Bartolini MK-2 6-R passive
Neck pickup:
Bartolini MK-2 6-F passive
Electronics:
Bartolini MK-2 3-band EQ
Controls:
Master volume / balancer / treble / mid / bass
Battery:
Two 9V (18V)
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details
BTB676PBAM bartolini pus

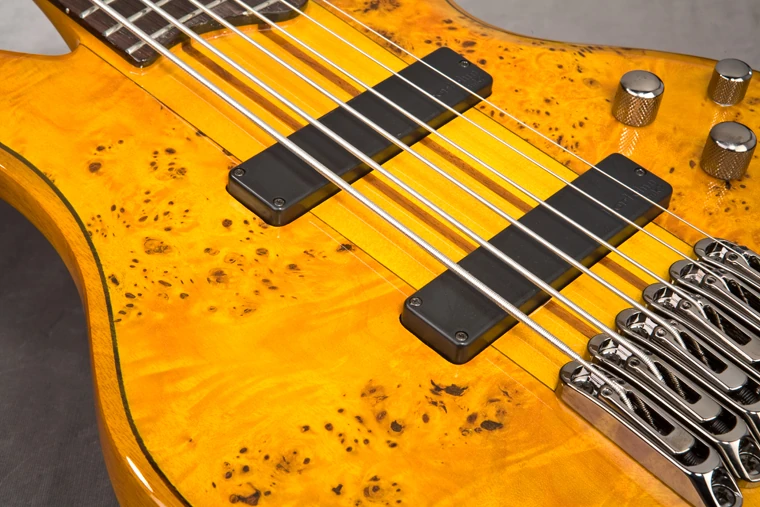

Poplar Burl top and Bartolini MK-2 pickups
BTB676PBAM deep cutaway neck thru

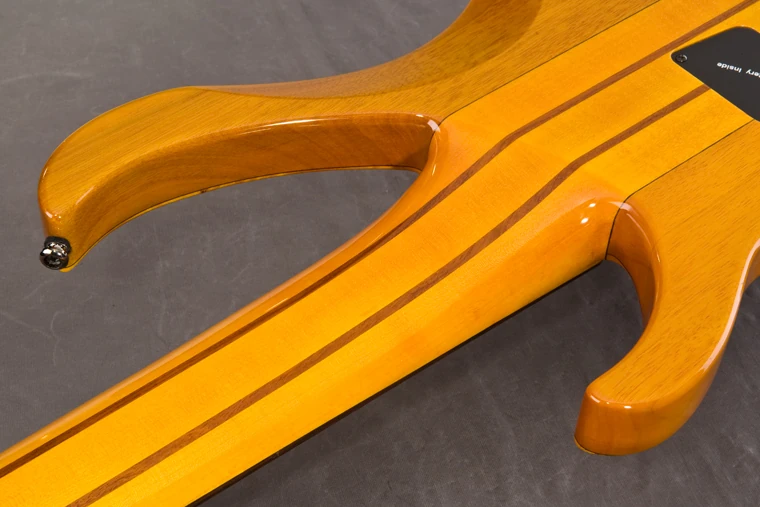

Neck & neck joint
ControlsLayout BartoliniMK2
Controls layout
FreqResp BartoliniMK2
EQ frequency response
