2021 BTB765 DEL 1P 01

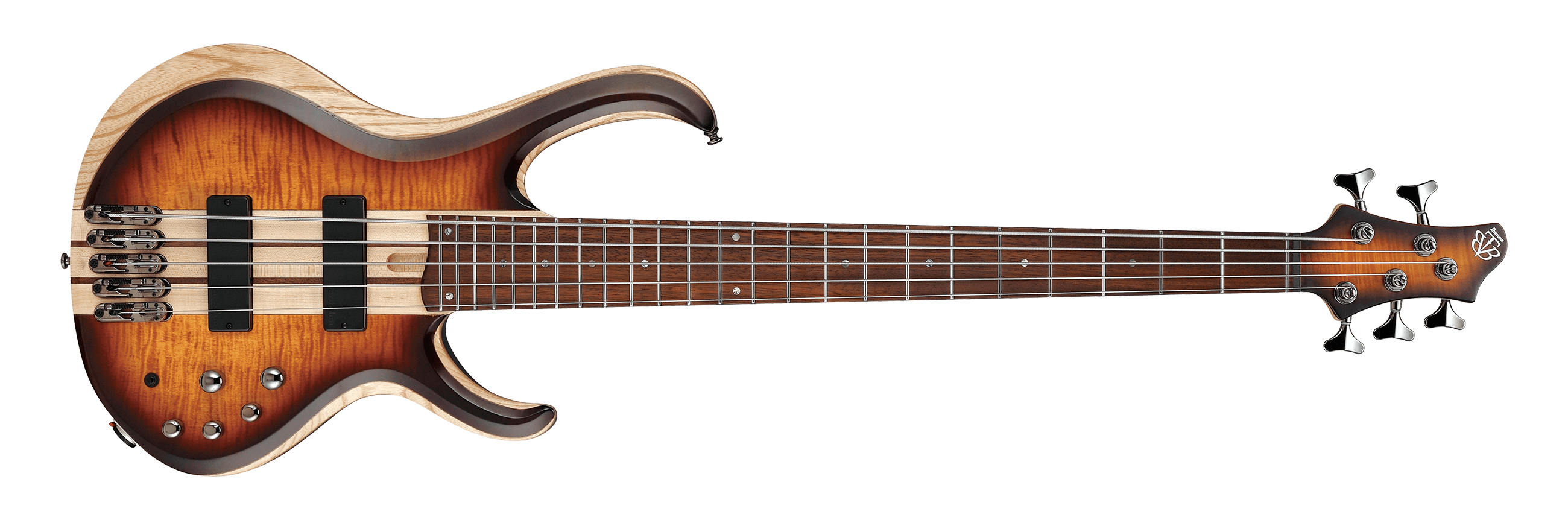

BTB765 Dragon Eye Burst Low Gloss (more images) Red copyright sprite

The BTB765 is a five string BTB series solid body electric bass model introduced by Ibanez for 2021. It was produced in Indonesia as part of the Standard line.

The BTB765 features neck through body construction with a flamed maple top and okoume back on ash wings attached to a graphite reinforced maple and walnut neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini BH2 passive pickups with an Ibanez custom preamp with a three-band EQ, stainless steel frets including a zero fret, Mono-rail bridges with 19mm string spacing, a locking Neutrik stereo output jack, a plastic nut, and Ibanez tuning machines.

The BTB766 is a six string version. The BTB745 is a similar model with a walnut top.

The BTB765 was discontinued after 2022.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB765
Model name: BTB765
Year(s) offered: 2021–2022
Sold in: Europe 2021 / USA & Canada
Made in: Indonesia
Price: SMAP: US$899.99 (2021)[1]
Finish(es): Dragon Eye Burst Low Gloss (DEL)
Body
Body type:
Solid body
Body material:
Ash wings w/ flame maple top & okoume back
Neck joint:
Neck-thru
Bridge:
MR5S Mono-rail (19mm string spacing)
Strap buttons:
Standard metal button
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) black plastic knobs
Hardware color:
Cosmo black
Neck
Neck type:
BTB5
Neck material:
5-piece maple/ walnut w/ graphite reinforcing rods
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 (+ zero fret) / medium stainless steel
Nut:
Plastic (47mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.080/.100/.130 (D'Addario NYXL45130)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
Electronics/ case
Bridge pickup:
Bartolini BH2 bridge passive
Neck pickup:
Bartolini BH2 neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / EQ bypass toggle / 3-way mid-frequency toggle
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
Recommended case:
MRB350C or MRB500C

Images[]

Additional details

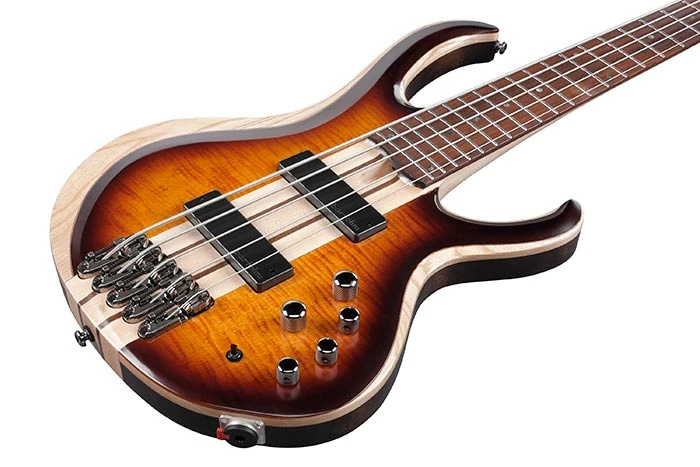

2021 BTB765 DEL 1P 01 front
Front of body

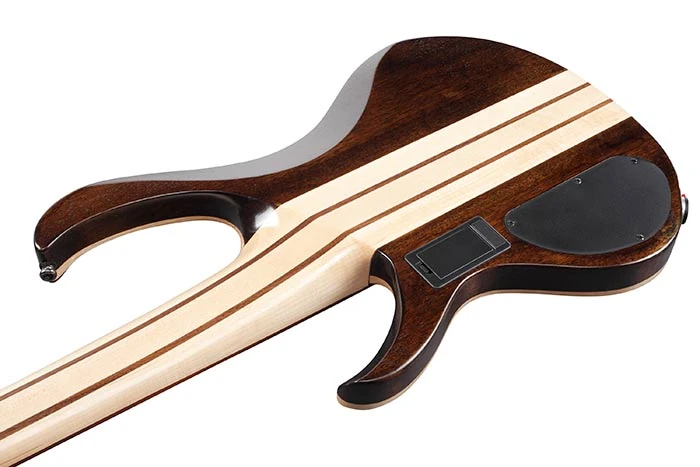

2021 BTB765 DEL 1P 01 back
Rear of body
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency response

Sources[]

  1. BTB765-CKL product listing, Zzounds (US retailer), archived February 2021
