2014 BTB7 NTF 1P 02
BTB7 Natural Flat (more images) Red copyright sprite

The BTB7 is a seven string BTB series solid body electric bass model introduced by Ibanez in 2013. It was made in Indonesia and was introduced in 2013 as a limited edition spot model, which was added to the newly created Ibanez Bass Workshop line the following year. In the US market it was known as the BTB7E.

The BTB7 features neck through body construction with a rosewood top on maple wings attached to a graphite reinforced 9-piece maple, rosewood, and walnut neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of CAP Sonic Arch single-coil sized humbucking pickups with an Ibanez E6 preamp with a three-band EQ, individually mounted Mono-rail IV bridges with 15.5mm string spacing, a locking Neutrik stereo output jack, a plastic nut and Ibanez tuning machines.

The hardware color was initially gold, but changed to black matte for 2014.

Specifications[]

Specifications for BTB7 / BTB7E
Model name: BTB7 / BTB7E
Year(s) offered: 2013–2016
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: US$1,791.10 (2014) | ¥175,000 (2015) • SMAP: €1,149 (2016)
Finish(es): Natural Gloss (NT) 2013 / Natural Flat (NTF) 2014–2016
Body
Body type:
Solid body
Body material:
Maple wings w/ rosewood top
Neck joint:
Neck-thru
Bridge:
Mono-rail IV (15.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
2013: Gold
2014–2016: Black matte
Neck
Neck type:
BTB7
Neck material:
9-piece maple/ rosewood/ walnut w/ graphite reinforcing rods
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / medium
Nut:
Plastic (63mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
CAP Sonic Arch passive
Neck pickup:
CAP Sonic Arch passive
Electronics:
Ibanez E6 EQ w/EQ bypass switch
Controls:
Master volume / balancer / EQ bypass toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.020p/.032/.045/.065/.080/.100/.130
(D'Addario EXL170-5SL + .020p/0.32)
Factory tuning:
1F,2C,3G,4D,5A,6E,7B (all fourths)

Images[]

Additional finishes/ details
2013 BTB7 NT 1P 01
Natural (2013)

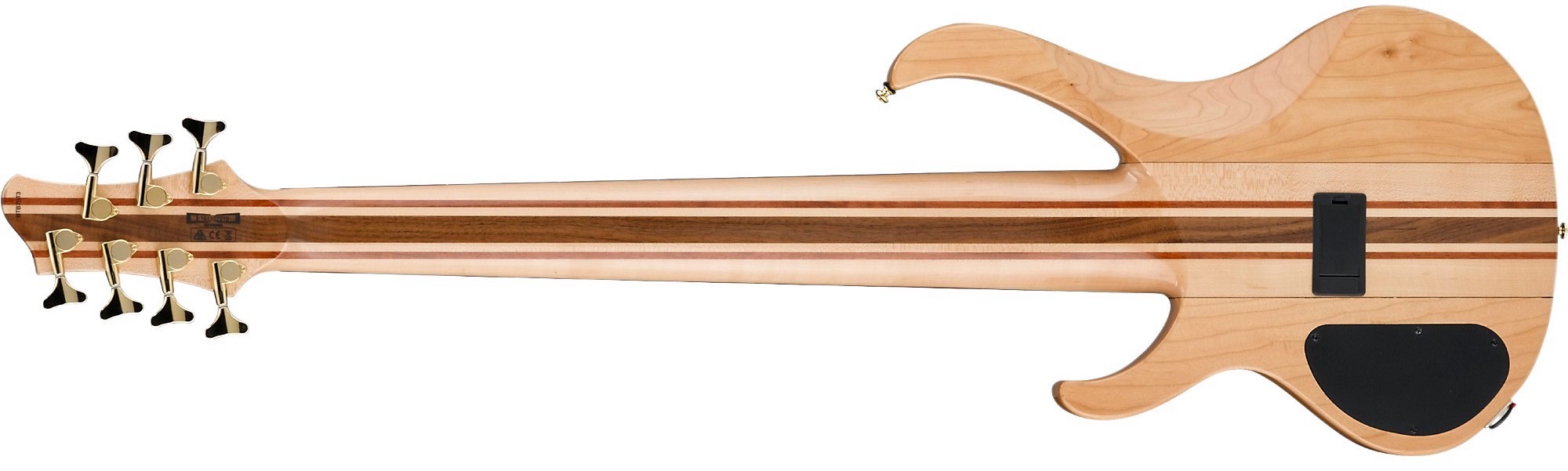

2013 BTB7 back
Rear

Video[]

Demo of the BTB7 with Franck Hermanny (published July 8, 2013)
