For the more recent model with the same name, see BTB676 (2013–2016).
2008 BTB676 NTF 1P 01

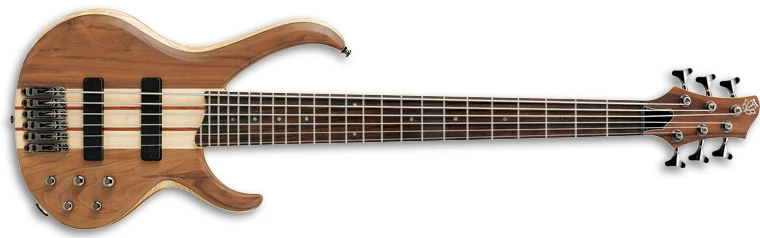

BTB676 Natural Flat (more images) Red copyright sprite

The BTB676 is a six string BTB series solid body electric bass model introduced by Ibanez for 2008. It was made in Indonesia as part of the Standard line.

The BTB676 features neck through body construction with a walnut top on ash wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini MK-2 passive pickups with a Bartolini preamp with a three-band EQ powered by two 9V batteries, individually mounted Mono-rail II bridges with 17mm string spacing, a locking Neutrik stereo output jack, a plastic nut and Ibanez tuning machines.

The BTB670 and BTB675 are similar four and five string models, respectively. The BTB676M is a similar model with a maple fretboard. The BTB776PB is a similar model with a poplar burl top on mahogany body wings.

This BTB676 was discontinued after 2012. It was replaced by another model with the same name that has some different specs.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB676 (2008–2012)
Model name: BTB676 (2008–2012)
Year(s) offered: 2008–2012
Sold in: Americas & Oceania / Europe / Japan / USA 2010–2012
Made in: Indonesia
Price: MSRP: US$1,133.32 (2010) / ¥120,750 (2008, 2012) • SMAP: €679 (2012)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Walnut and Ash wings
Neck joint:
Neck-thru
Bridge:
Mono-rail II (17mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
BTB6
Neck material:
5-piece maple/ bubinga
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / medium
Nut:
Black plastic (54mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Bartolini MK-2 6-R passive
Neck pickup:
Bartolini MK-2 6-F passive
Electronics:
Bartolini MK-2 3-band EQ
Controls:
Master volume / balancer / treble / mid / bass
Battery:
Two 9V (18V)
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details

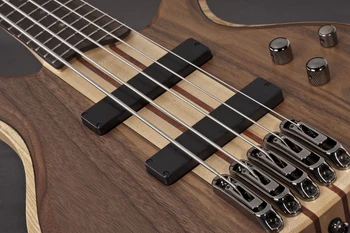

2011 BTB675NTF pickups
Walnut top and Bartolini MK-2 pickups

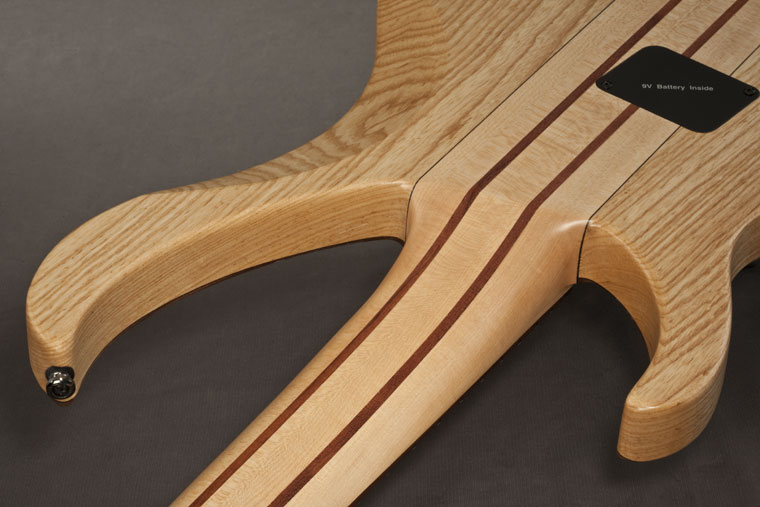

2011 BTB675NTF neck-thru
Neck-thru design with 5-piece neck and ash body wings
ControlsLayout BartoliniMK2
Controls layout
FreqResp BartoliniMK2
EQ frequency response
