For the earlier model with the same name, see BTB675 (2008–2012).

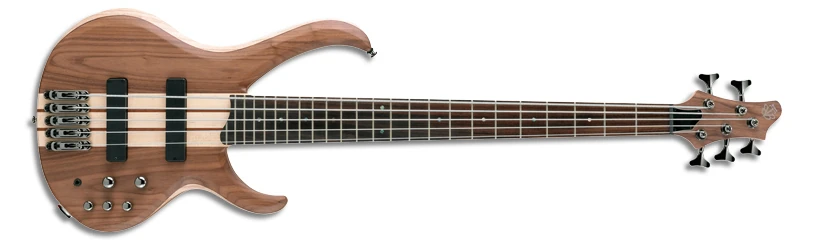

BTB675 Natural Flat

The BTB675 is a five string BTB series solid body electric bass model introduced by Ibanez for 2013. It was made in Indonesia as part of the Standard line. It replaced another model with the same name which has some different specs.

The BTB675 features neck through body construction with a walnut top on ash wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini BH1 passive pickups with an Ibanez EQB-IIIS preamp with a three-band EQ and a mid-frequency selector, individually mounted Mono-rail II bridges, a locking Neutrik stereo output jack, a GraphTech Black TUSQ nut and Ibanez tuning machines.

The BTB676 is a similar six string model. The BTB675M is a similar model with a maple fretboard. The BTB675F is a fretless version. The BTB675ZW is a similar model with a zebra wood top. The BTB775PB is a similar model with a poplar burl top on mahogany body wings.

The BTB675 was discontinued after 2016.

Specifications[]

Related content: BTB series |
Specifications for BTB675 (2013–2016)
Model name: BTB675 (2013–2016)
Year(s) offered: 2013–2016
Sold in: Americas & Oceania / Asia & Africa 2016 / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: ¥110,250 (2013) / ¥125,000 (2016) • SMAP: €869 (2016)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Ash wings w/ walnut top
Neck joint:
Neck-thru
Bridge:
Mono-rail II
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
BTB5
Neck material:
5-piece maple/ bubinga
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / medium
Nut:
GraphTech Black TUSQ XL (47mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)
Electronics
Bridge pickup:
Bartolini BH1 bridge passive
Neck pickup:
Bartolini BH1 neck passive
Electronics:
Ibanez EQB-IIIS 3-band EQ w/ mid frequency switch
Controls:
Master volume / balancer / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)

Images[]

Additional details
Controls layout

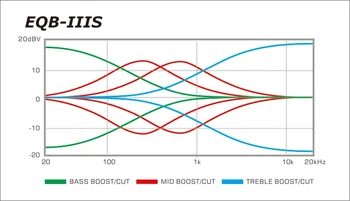

EQ frequency response
