For the earlier model with the same name, see BTB675M (2012).

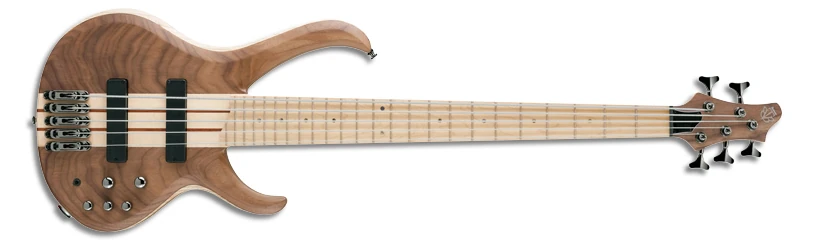

2013 BTB675M NTF 1P 02
BTB675M Natural Flat Red copyright sprite

The BTB675M is a five string BTB series solid body electric bass model introduced by Ibanez for 2013. It was made in Indonesia as part of the Standard line. It replaced another model with the same name which has some different specs.

The BTB675M features neck through body construction with a walnut top on ash wings attached to a maple and bubinga neck with a 24-fret maple fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini BH1 passive pickups with an Ibanez EQB-IIIS preamp with a three-band EQ and a mid-frequency selector, individually mounted Mono-rail II bridges, a locking Neutrik stereo output jack, a GraphTech Black TUSQ nut and Ibanez tuning machines.

The BTB676M is a similar six string model. The BTB675 is a similar model with a rosewood fretboard.

The BTB675M was discontinued after 2016.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB675M (2013–2016)
Model name: BTB675M (2013–2016)
Year(s) offered: 2013–2016
Sold in: USA
Made in: Indonesia
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Ash wings w/ walnut top
Neck joint:
Neck-thru
Bridge:
Mono-rail II
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
BTB5
Neck material:
5-piece maple/ bubinga
Scale length:
889mm / 35"
Fingerboard material:
Maple
Fingerboard inlays:
Abalone dot
Frets:
24 / medium
Nut:
GraphTech Black TUSQ XL (47mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Bartolini BH1 bridge passive
Neck pickup:
Bartolini BH1 neck passive
Electronics:
Ibanez EQB-IIIS 3-band EQ w/ mid frequency switch
Controls:
Master volume / balancer / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
Controls-layout EQBIIIS
Controls layout
Freq-resp EQBIIIS
EQ frequency response
