For the more recent model with the same name, see BTB675M (2013–2016).
2012 BTB675M NTF 1P 01

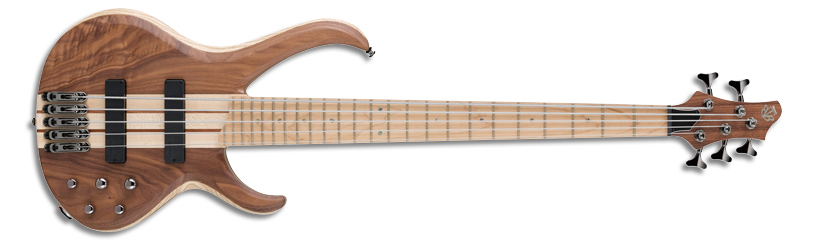

BTB675M Natural Flat (more images) Red copyright sprite

The BTB675M is a five string BTB series solid body electric bass model introduced by Ibanez for 2012. It was made in Indonesia as part of the Standard line.

The BTB675M features neck through body construction with a walnut top on ash wings attached to a maple and bubinga neck with a 24-fret maple fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini MK-2 passive pickups with a Bartolini preamp with a three-band EQ powered by two 9V batteries, individually mounted Mono-rail II bridges with 19mm string spacing, a locking Neutrik stereo output jack, a plastic nut and Ibanez tuning machines.

The BTB676M is a similar six string model. The BTB675 is a similar model with a rosewood fretboard.

This BTB675M was discontinued after 2012. It was replaced by another model with the same name that has some different specs.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB675M (2008–2012)
Model name: BTB675M (2008–2012)
Year(s) offered: 2012
Sold in: USA
Made in: Indonesia
Price: MSRP: US$1,171.10 (2012)
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ poplar burl top
Neck joint:
Neck-thru
Bridge:
Mono-rail II (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
BTB5
Neck material:
5-piece maple/ bubinga
Scale length:
889mm / 35"
Fingerboard material:
Maple
Fingerboard inlays:
Abalone dot
Frets:
24 / medium
Nut:
Black plastic (47mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Bartolini MK-2 5-R passive
Neck pickup:
Bartolini MK-2 5-F passive
Electronics:
Bartolini MK-2 3-band EQ
Controls:
Master volume / balancer / treble / mid / bass
Battery:
Two 9V (18V)
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.085/.105/.130
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
2011 BTB675NTF pickups
Walnut top and Bartolini MK-2 pickups
2011 BTB675NTF neck-thru
Neck-thru design with 5-piece neck and ash body wings
ControlsLayout BartoliniMK2
Controls layout
FreqResp BartoliniMK2
EQ frequency response
