2008 BTB576FM-TG

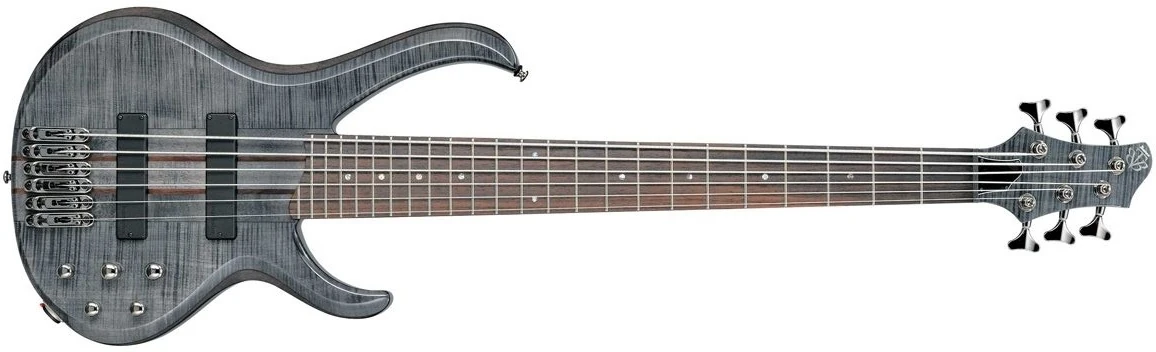

BTB576FM Transparent Gray (more images) Red copyright sprite

The BTB576FM is a six string BTB series solid body electric bass model introduced by Ibanez for 2008. It was produced by the Cor-Tek factory in Indonesia as part of the Standard line.


The BTB576FM features neck through body construction with figured maple top on a mahogany body attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with pearl dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini® Custom passive pickups with an Bartolini® MK2 3-band EQ preamp, Mono-rail bridges with 17mm string spacing, a locking Neutrik stereo output jack, a plastic nut and die-cast tuning machines.

The BTB570FM is a similar four string model. The BTB575FM is a similar five string model.

The BTB576FM was discontinued after 2009.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB576FM
Model name: BTB576FM
Year(s) offered: 2008-2009
Sold in: USA
Made in: Indonesia
Finish(es): Transparent Gray (TG)
Body
Body type:
Solid body
Body material:
Mahogany w/ figured maple top
Neck joint:
Neck-thru
Bridge:
Mono-Rail II (17mm string spacing)
Strap buttons:
Standard
Hardware color:
Cosdmo White
Neck
Neck type:
BTB6
Neck material:
5-piece maple/ bubinga
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
24 / medium
Nut:
Graph Tech BLACK TUSQ XL (54mm)
Machine heads:
Die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini MK2-5R Magnet / Ceramic
Neck pickup:
Bartolini MK2-6F Magnet / Ceramic
Electronics:
Bartolini MK2 3-band EQ
Controls:
Volume, Balance, Bass Boost/Cut, Mid Boost/Cut, Treble Boost/Cut controls
Battery:
Two 9V (18V)
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.032/.045/.065/.080/.100/.130 Elixir®
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details
ControlsLayout BartoliniMK2
Controls layout
FreqResp BartoliniMK2
EQ frequency response
