BTB33

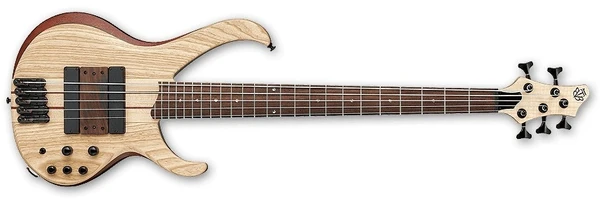

BTB33 Natural Flat (more images) Red copyright sprite

The BTB33 is a five string BTB series solid body electric bass model introduced by Ibanez for 2015. It is made in Indonesia as part of the Ibanez Bass Workshop line.

The BTB33 is the first shorter scale addition to the Ibanez Bass Workshop range of instruments that have been designed to bring concept-style basses to the masses. Due to its shorter scale length, the BTB33 is tuned from E-C, a feature that is unique within the Ibanez bass guitar range.

The BTB33 features neck through body construction with ash top and mahogany back on ash wings attached to a maple and bubinga neck with a 24-fret rosewood fingerboard with abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Bartolini BH1 soapbar-style pickups with an Ibanez custom preamp with a three-band EQ, stainless steel frets including a zero fret, Mono-rail bridges with 19mm string spacing, a locking Neutrik stereo output jack, a plastic nut and Ibanez tuning machines.

The BTB33 was discontinued after 2017.

Specifications[]

Specifications for BTB33 / BTB Volo
Model name: BTB33 / BTB Volo
Year(s) offered: 2015–2017
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ Ash top
Neck joint:
Neck-thru
Bridge:
MR5S Mono-rail (19mm string spacing)
Strap buttons:
Standard
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Black matte
Neck
Neck type:
BTB5 Volo
Neck material:
5-piece maple/ bubinga w/ graphite reinforcing rods
Scale length:
838mm/ 33"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / medium nickel silver
Nut:
Graph Tech Black TUSQ XL (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Bartolini BH1 bridge passive
Neck pickup:
Bartolini BH1 neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / balancer / EQ bypass toggle / 3-way mid-frequency toggle / treble / mid / bass
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.032/.045/.065/.085/.105
Factory tuning:
1C/2G/3D/4A/5E

Images[]

Additional details

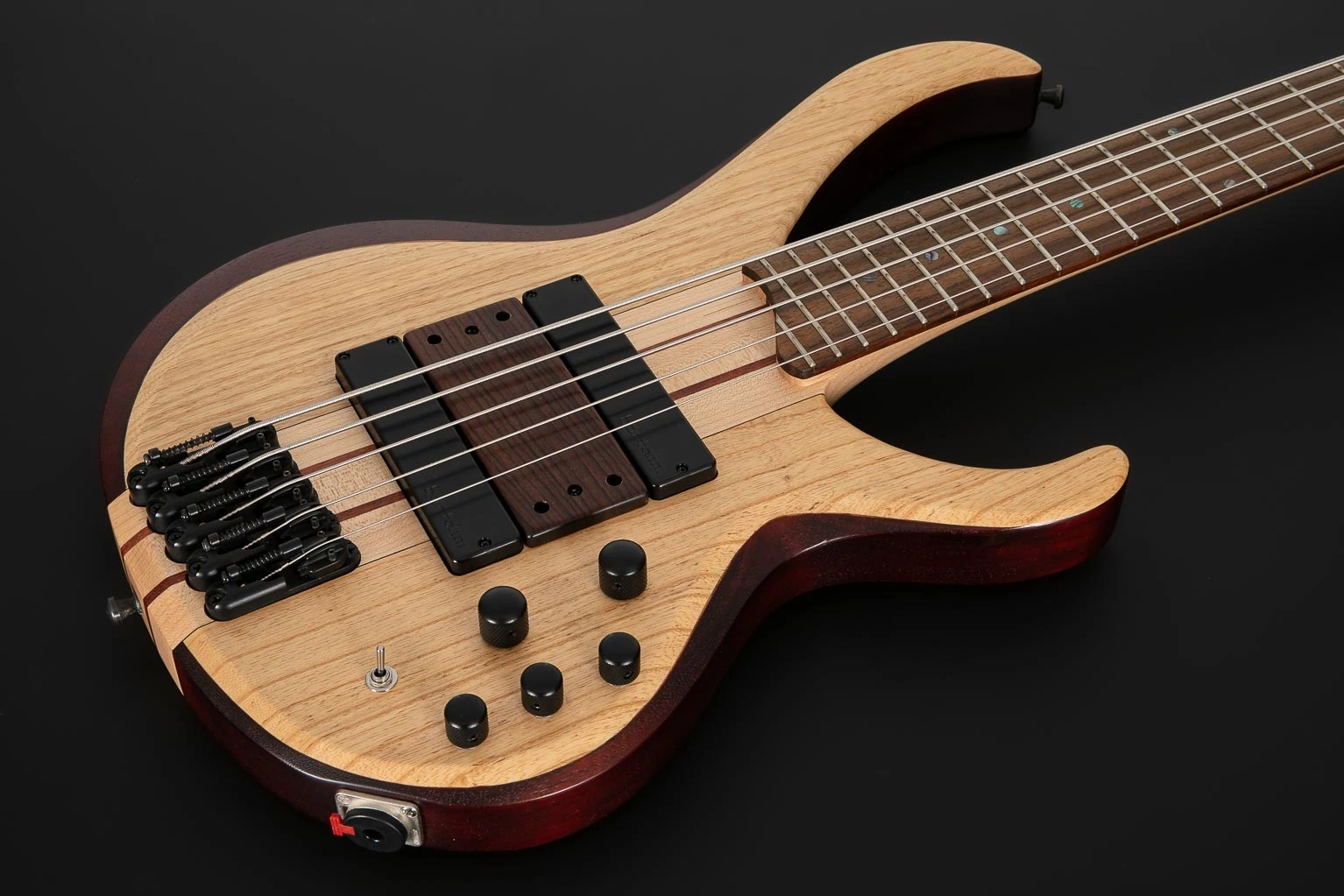

BTB33 front
Front of body

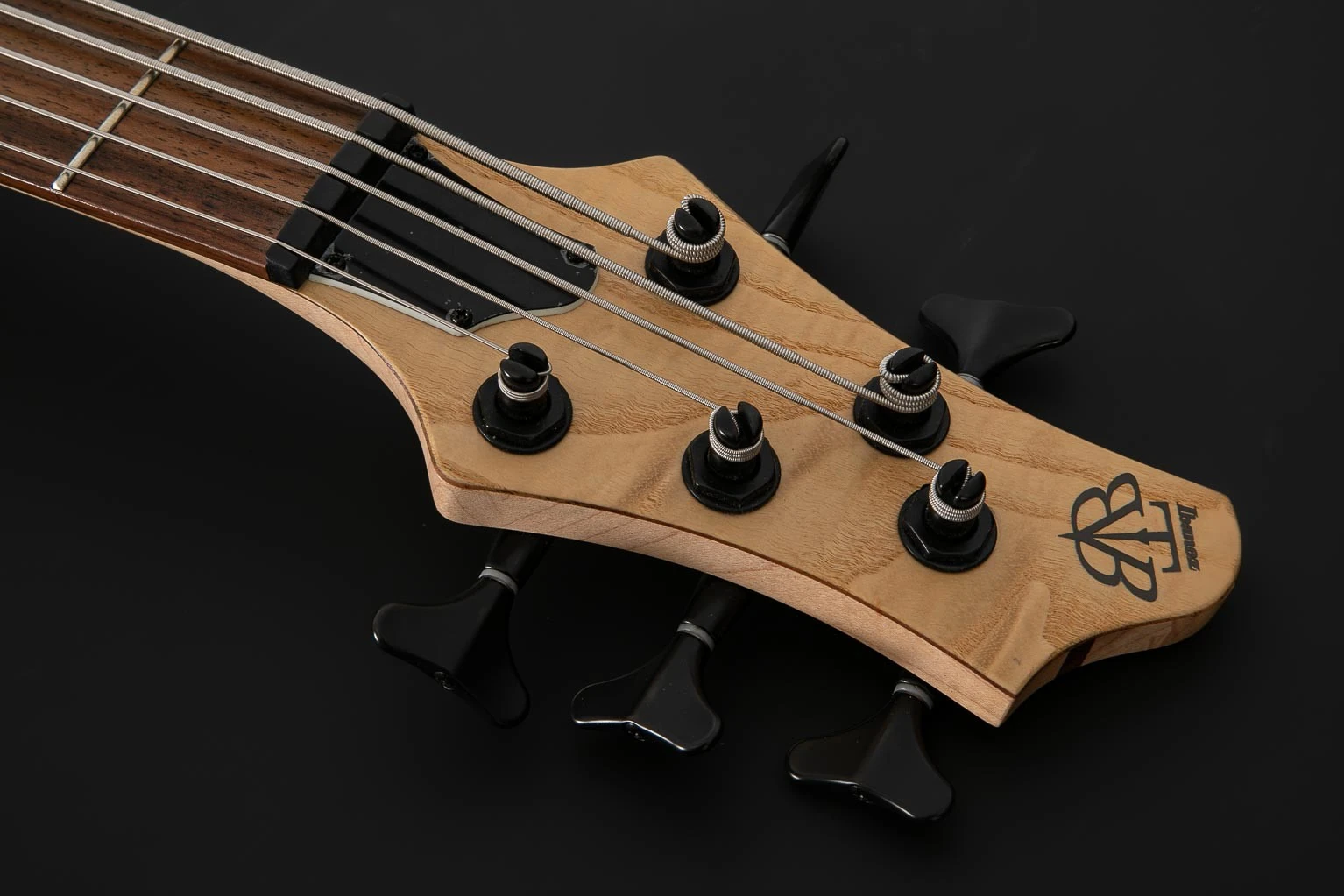

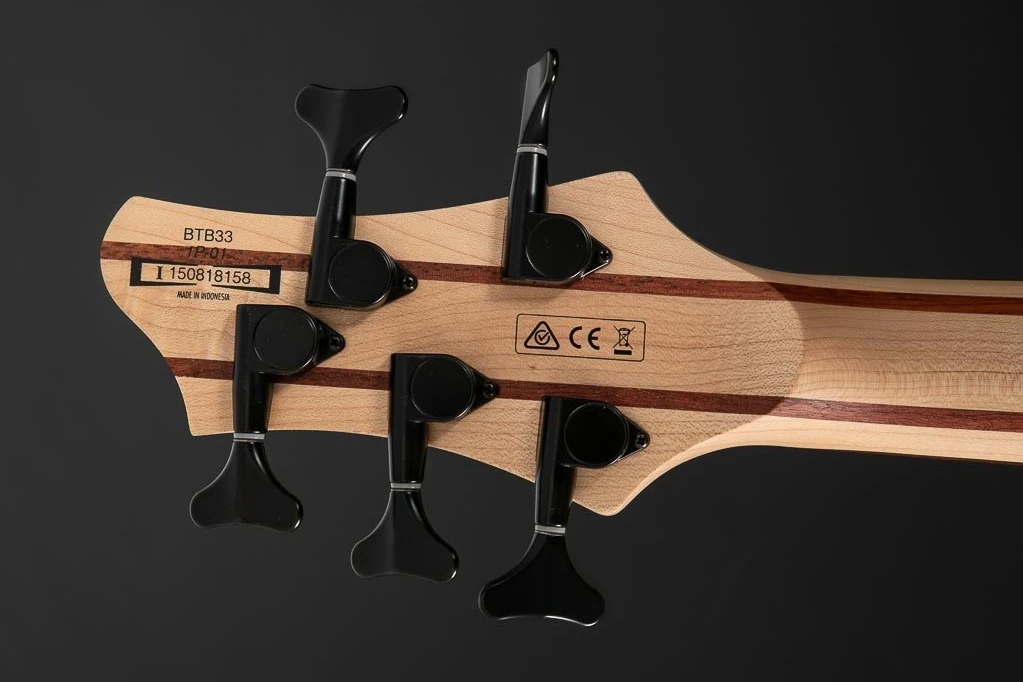

BTB33 headstock
Headstock

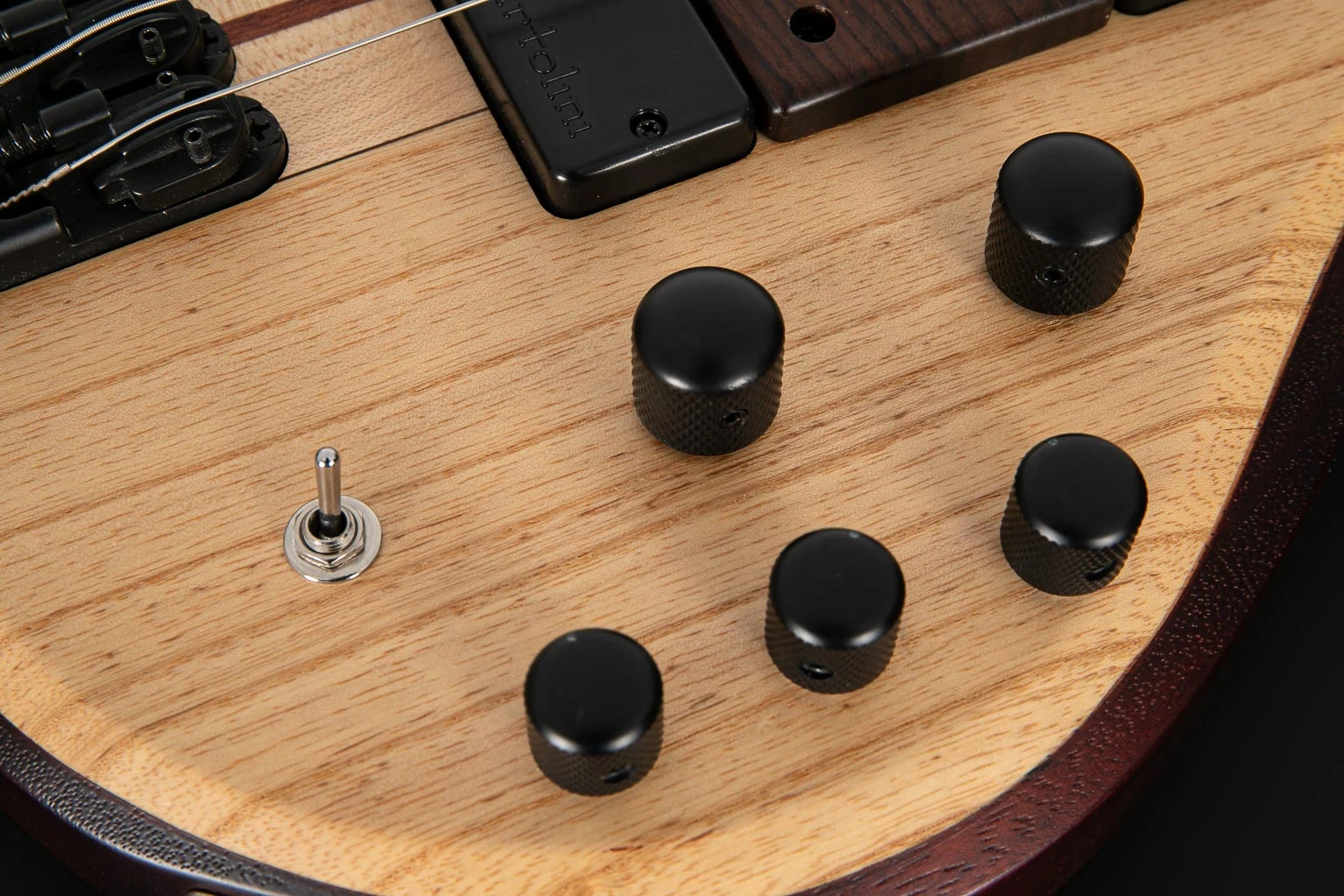

Controls SR-standard
Controls layout
SR-Prestige frequency response charts
EQ frequency response

Video[]

2015 Ibanez BTB33 AKA "VOLO" ( Review )
