2003 BTB300BG-WNF

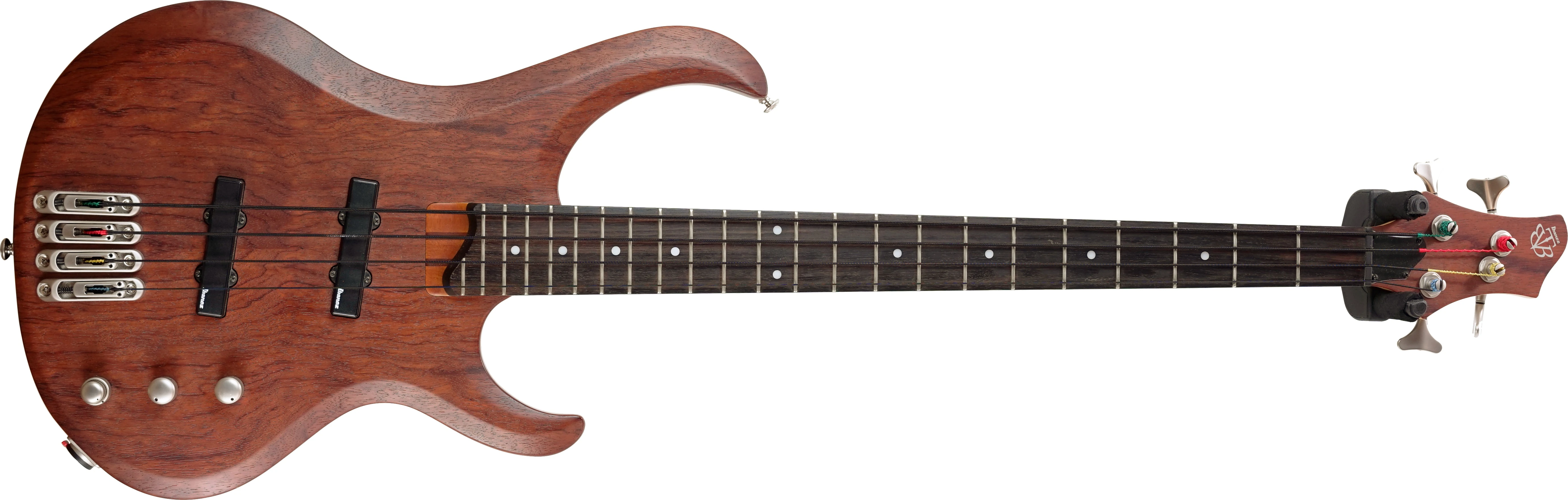

BTB300BG Walnut Flat Red copyright sprite

The BTB300BG is a BTB series solid body electric bass model introduced by Ibanez for 2003. It was produced in South Korea by World Musical Instrument Company as part of the Standard line.

The BTB300BG features mahogany body with bubinga top bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with pearl dot position markers and white side dots. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Ibanez SPJ-4 passive pickups with a EQB-IIB 2-band EQ, a Mono-rail II bridge with 19mm string spacing, a locking Neutrik stereo output jack, a graphite nut and die-cast tuning machines.

The BTB305BG is a similar five string model. The BTB300 is related model with Ibanez PFR-4 (Passive Full Range) passive pickups.

The BTB300BG was offered only in 2003.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB300BG
Model name: BTB300BG
Year(s) offered: 2003
Sold in: Asia & South America / Europe / USA
Made in: South Korea
Finish(es): Walnut Flat (WNF)
Body
Body type:
Solid body
Body material:
Mahogany w/ Bubinga top
Neck joint:
AANJ
Bridge:
Ibanez MR-II (19mm string spacing)
Hardware color:
Silver Nickel
Neck
Neck type:
BTB4
Neck material:
5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
white side dots
Frets:
24 / medium
Nut:
graphite (41mm)
Machine heads:
Die-cast
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
IBZ SPJ-4B "bridge" (S) passive
Neck pickup:
IBZ SPJ-4N "neck" (S) passive
Electronics:
EQB-IIB 2-band EQ
Controls:
Master volume / balancer / EQB-IIB 2-band EQ treble - bass
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.085/.105 Elixir®
Factory tuning:
1G,2D,3A,4E (E standard)
