BTB200

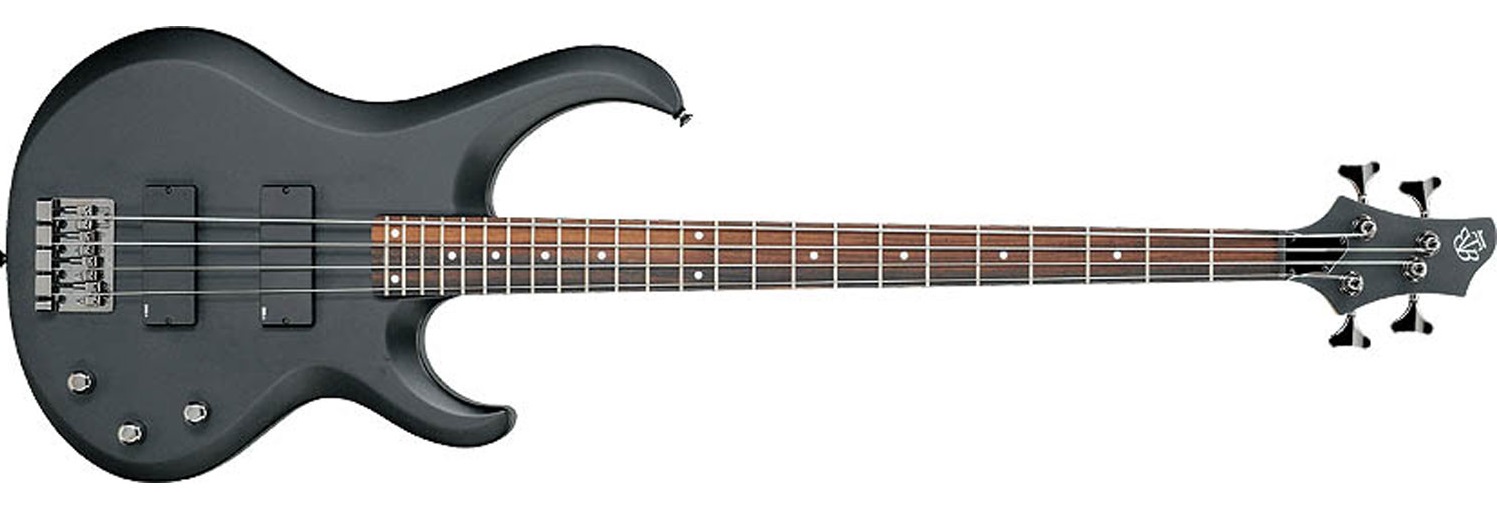

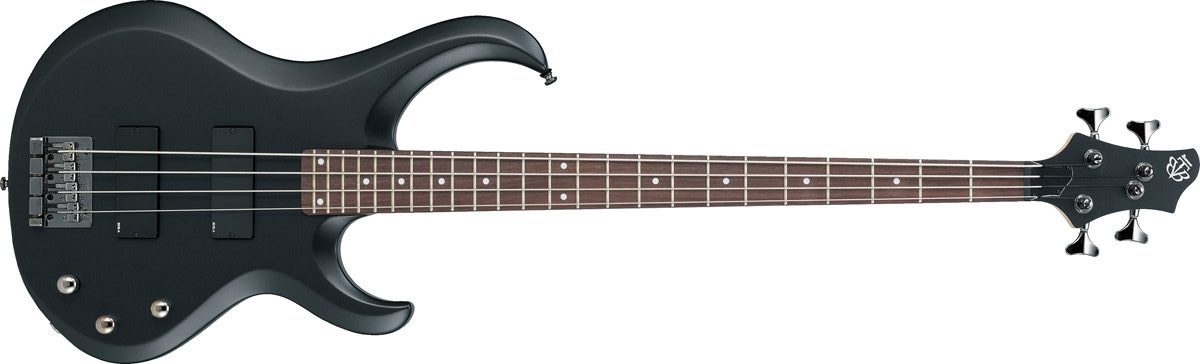

BTB200 Metallic Black Flat (more images)

The BTB200 is a BTB series solid body electric bass model introduced by Ibanez for 2005. It was produced in Indonesia as part of the Standard line.

The BTB200 features agathis body bolted to a maple neck with a 24-fret rosewood fingerboard with pearl dot position markers and white side dots. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Ibanez DX-4 passive pickups with a Phat II EQ, a B100 bridge with 19mm string spacing, a locking Neutrik stereo output jack, a graphite nut and die-cast tuning machines.

For 2008 the body material was changed to Mahogany.

The BTB205 is a similar five string model.

The BTB200 was discontinued after 2009.

Specifications

Related content: BTB series |

Specifications for BTB200

Model name: BTB200 Year(s) offered: 2005-2009 Sold in: Asia & South America "2006-2007" / Europe "2005-2009" / North America "2006-2009" / USA "2006-2009" Made in: Indonesia Finish(es): Damp Green Flat (DGF) 2006 Europe, Asia & South America / Iron Pewter Flat (IPF) 2005-2007 / Metallic Black Flat (MKF) 2008-2009 / (VDF) 2007 Europe, North America, Asia & South America
Body Body type: Solid body Body material: "2005-2007": Agathis "2008-2009": Mahogany Neck joint: AANJ Bridge: B100 (19mm string spacing) Knob style: Tek Grip knob (gold) Hardware color: Chrome	Neck Neck type: BTB4 Neck material: 3-piece maple Scale length: 889mm / 35" Fingerboard material: Rosewood Fingerboard inlays: Pearl dot white side dots Frets: 24 / medium Nut: plastic (38mm) Machine heads: Die-cast	Electronics/ Strings Pickup configuration: HH Bridge pickup: DX-B4 (H) Neck pickup: DX-N4 (H) Electronics: PHAT II active Controls: Master volume / master tone / Phat EQ Battery: 9V Output jack: ¼" Neutrik stereo locking jack (side mounted) String gauge (factory): .045/.065/.085/.105 Elixir® Factory tuning: 1G,2D,3A,4E (E standard)

About this table

Images

Other available finishes

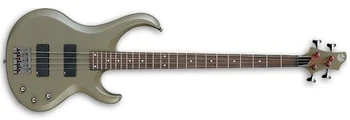

Damp Green Flat

Iron Pewter Flat

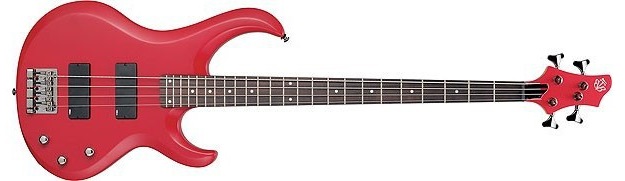

VDF

Sources

• 2005 Europe catalog (p.38)
• 2006 Europe catalog (p.58)
• 2006 North America catalog (p. 79)
• 2006 USA catalog (p.83)
• 2006 World catalog (p.56)
• 2007 Europe catalog (p. 69)
• 2007 North America catalog (p.69)
• 2007 USA catalog (p.29)
• 2007 World catalog (p.69)
• 2008 Europe catalog (p.55)
• 2008 North America catalog (p.53)
• 2008 USA catalog (p.27)
• 2009 Europe catalog (p.68)
• 2009 USA catalog (p.36)
• 2009 World catalog (p.64)
