2021 BTB1835 NDL 1P 01
BTB1835 Natural Shadow Low Gloss Red copyright sprite

The BTB1835 is a five string BTB series solid body electric bass model introduced by Ibanez for 2021. It is made in Indonesia as part of the mid-tier Premium line.

The BTB1835 features neck through body construction with a bubinga top and back on ash wings attached to a graphite reinforced, nine-piece maple, bubinga and purpleheart neck with a 24-fret panga panga fingerboard with binding and offset abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Aguilar DCB passive pickups channeled through an Ibanez custom preamp with a three-band EQ, stainless steel frets including a zero fret with Premium fret edge treatment, individually mounted Mono-rail VS bridges with adjustable 19mm string spacing, a locking Neutrik stereo output jack, a plastic nut, and Gotoh tuning machines.

The BTB1836 is a six string version. The BTB1825 is a predecessor with a walnut top and back and a different neck construction.

Specifications[]

Related content: Premium series | BTB series | Models-icon
Specifications for BTB1835
Model name: BTB1835
Year(s) offered: 2021–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: JP¥ 225,000 (2022[1]–2023[2]) / JP¥ 260,000 (2024)[3] / US$2,479.99 (2024)[4] • SMAP: US$1,799.99 (2024)[4]
Finish(es): Natural Shadow Low Gloss (NDL)
Body
Body type:
Solid body
Body material:
Ash wings w/ bubinga top & back
Neck joint:
Neck-thru
Bridge:
MR5S Mono-rail (19mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Gold
Neck
Neck type:
BTB5
Neck material:
9-piece maple/ bubinga/ panga panga w/ graphite reinforcing rods
Scale length:
889mm / 35"
Fingerboard material:
Panga panga w/ binding
Fingerboard inlays:
Offset abalone dot
Frets:
24 (+ zero fret) / medium stainless steel (Premium edge treatment)
Nut:
Plastic (47mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Aguilar DCB bridge passive
Neck pickup:
Aguilar DCB neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Master volume / pickup balancer / 3-band EQ (bass/mid/treble) / EQ bypass toggle / 3-way mid-frequency toggle
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.045/.065/.80/.100/.130 (D'Addario NYXL45130SL)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details

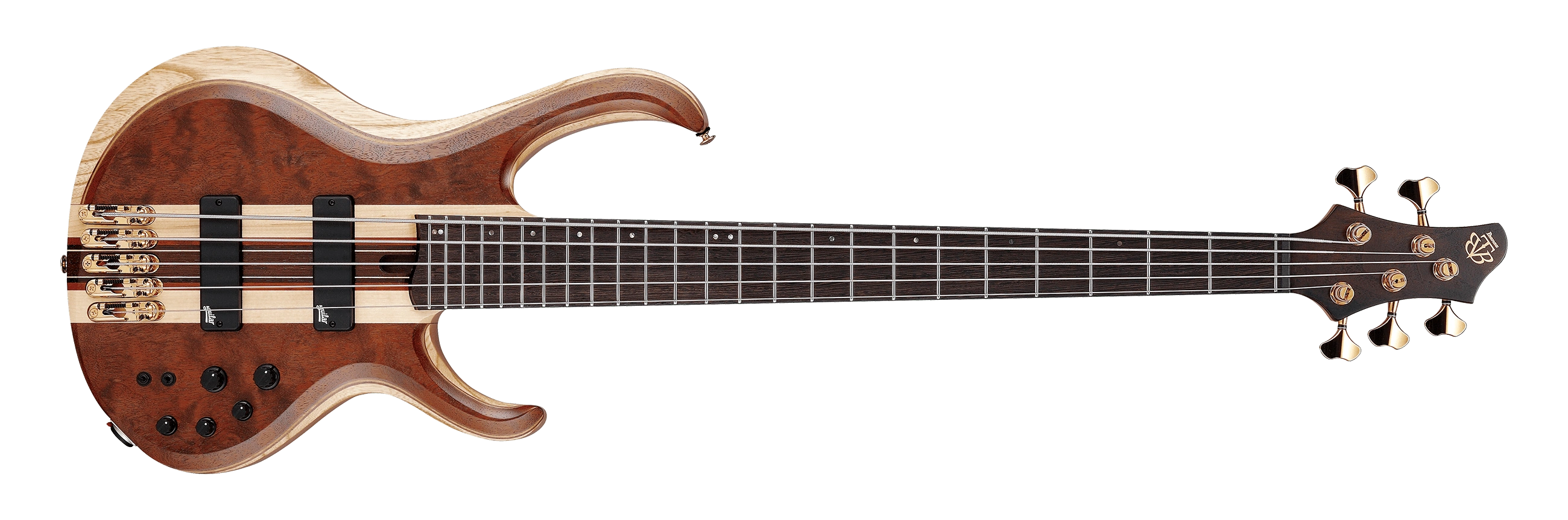

2021 BTB1835 NDL 1P 01 front
Front of body

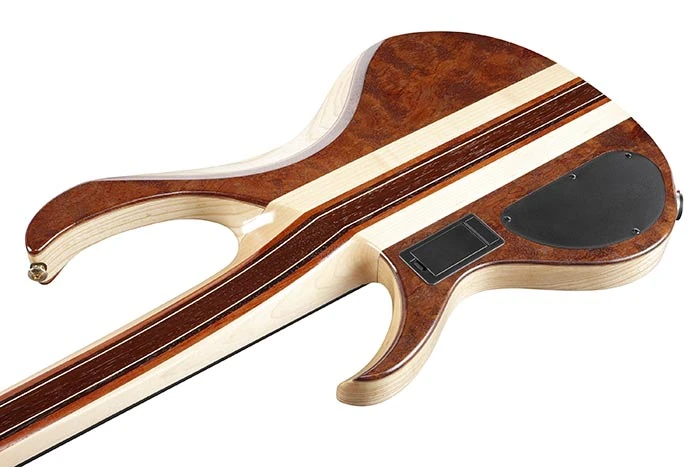

2021 BTB1835 NDL 1P 01 back
Rear of body
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency response
