2017 BTB1806 NTL 1P 01
BTB1806 Red copyright sprite

The BTB1806 is a six string BTB series solid body electric bass model introduced by Ibanez for 2017. It was made in Indonesia as part of the mid-tier Premium line. It was referred to as the BTB1806E in the US market.

The BTB1806 features neck through body construction with a rosewood top and back on ash wings attached to a graphite reinforced, nine-piece wenge, bubinga and maple neck with a 24-fret rosewood fingerboard with binding and offset abalone dot position markers. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Aguilar DCB passive pickups channeled through an Ibanez custom preamp with a three-band EQ, stainless steel frets including a zero fret with Premium fret edge treatment, individually mounted Mono-rail V bridges with 17mm string spacing, a locking Neutrik stereo output jack, a plastic nut, and Gotoh tuning machines.

The BTB1805 is a five string version. The BTB1906E is a related model with a figured maple top and back.

The BTB1806 was offered only in 2017. It was replaced for 2018 by the similar BTB1826 which has a walnut top and back and a panga panga fretboard.

Specifications[]

Related content: Premium series | BTB series | Models-icon
Specifications for BTB1806/ BTB1806E
Model name: BTB1806/ BTB1806E
Year(s) offered: 2017
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: JP¥ 220,000[1] / US$2,342.21[2] • SMAP: €1,549
Finish(es): Natural Low Gloss (NTL)
Body
Body type:
Solid body
Body material:
Ash wings w/ rosewood top & back
Neck joint:
Neck-thru
Bridge:
Mono-rail V (17mm string spacing)
Knob style:
B20 (volume & balancer) & B15 (3-way EQ) plastic knobs
Hardware color:
Gold
Neck
Neck type:
BTB6
Neck material:
9-piece wenge/ bubinga/ maple w/ graphite reinforcing rods
Scale length:
889mm / 35"
Fingerboard material:
Rosewood
Fingerboard inlays:
Offset abalone dot
Frets:
24 (+ zero fret) / medium stainless steel (Premium edge treatment)
Nut:
Plastic (54mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Bridge pickup:
Aguilar DCB bridge passive
Neck pickup:
Aguilar DCB neck passive
Electronics:
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch
Controls:
Template:VBeq3 / EQ bypass toggle / 3-way mid-frequency toggle
Battery:
9V
Output jack:
¼" Neutrik stereo locking jack (side mounted)
String gauge (factory):
.032/.045/.065/.080/.100/.130 (D'Addario NYXL32130SL)
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)

Images[]

Additional details
2017 BTB1806 NTL 1P 01 CU Body Top
Body top closeup

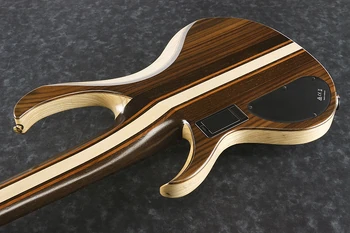

2017 BTB1806 NTL 1P 01 CU Body Back
Body/neck back
2017 BTB180x zero-fret
Zero fret at nut
2017 BTB180x Neutrik-jack
Neutrik locking jack
Controls SR-Prestige
Controls layout
SR-Prestige frequency response charts
EQ frequency response

Sources[]

  • BTB1806E product page, Ibanez USA, archived June 2017
