2009 BTB09LTD DOF 27 01

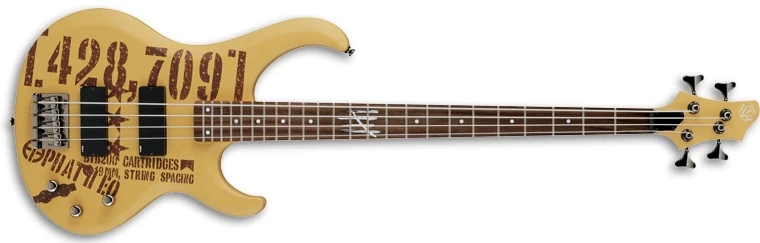

BTB09LTD Desert Ochre Flat (more images) Red copyright sprite

The BTB09LTD is a limited edition BTB series solid body electric bass model introduced by Ibanez for 2009. It was produced in China.

The BTB09LTD features a mahogany body bolted to a maple and walnut neck with a 24-fret rosewood fingerboard with pearl dot position markers and white side dots. The body has a double cutaway design with very distinctive, narrow, curving horns. Components include a pair of Ibanez DX4 passive pickups with a Phat II preamp, an Accu-cast B100 bridge with 19mm string spacing, a side mounted ¼" output jack, a plastic nut, and die-cast tuning machines.

The BTB200 is a similar regular production model without a plain finish. The BTB07LTD & BTB08LTD are another limited edition BTB models introduced the previous years.

The BTB09LTD was offered only in 2009.

Specifications[]

Related content: BTB series | Models-icon
Specifications for BTB09LTD
Model name: BTB09LTD
Year(s) offered: 2009
Sold in: Europe
Made in: China
Finish(es): Desert Ochre Flat (DOF)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Accu-cast B100 (19mm string spacing)
Strap buttons:
Standard metal pin
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
BTB4
Neck material:
5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
white side dots
Frets:
24 / medium nickel silver
Nut:
plastic (38mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez DX4-B (H) passive
Neck pickup:
Ibanez DX4-N (H) passive
Electronics:
Phat II
Controls:
Master volume / pickup balancer / tone
Output jack:
¼" stereo barrel (side mounted)
