AZ47P2K

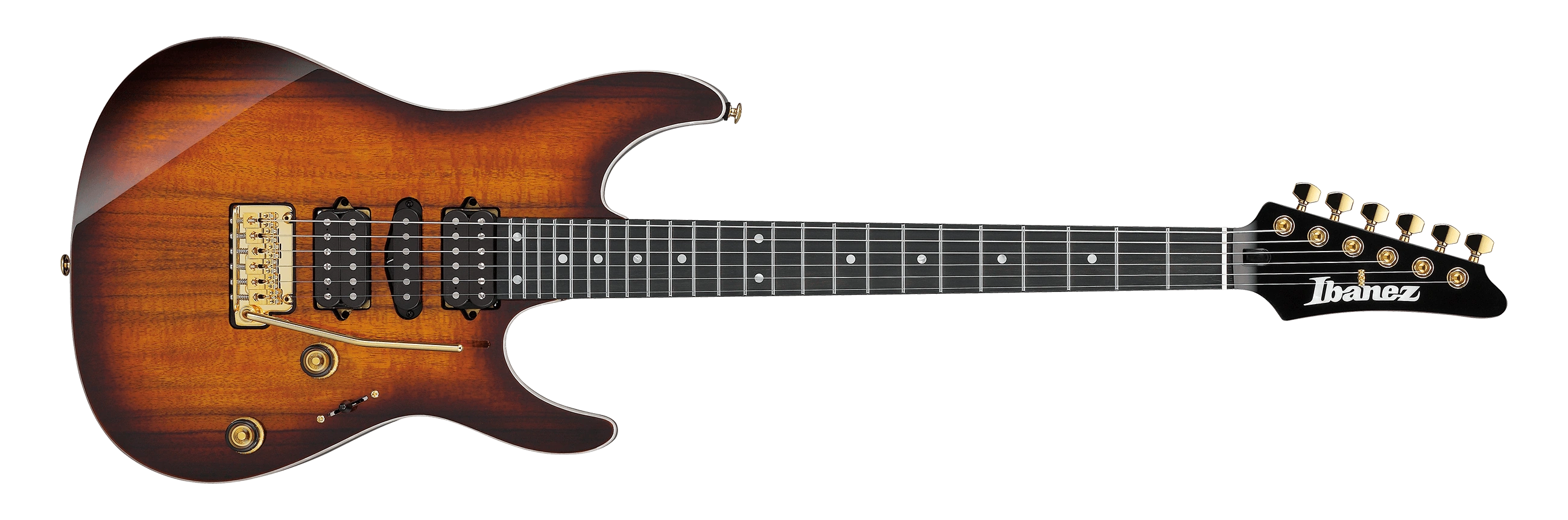

AZ47P2K Dragon Eye Burst (more images)

The AZ47P2K is an AZ series solid body electric guitar model introduced by Ibanez in mid-2025. It is produced in Indonesia as part of the mid-tier Premium line.

The AZ47P2K features an Hawaiian koa top on an American basswood body bolted to a roasted maple neck with an Oval C profile and an ebony fingerboard with 24 stainless steel frets, mother of pearl dot position markers, and luminescent side dots. Components include a pair of DiMarzio humbucking pickups flanking a single-coil, a Gotoh T1502 tremolo bridge made by Gotoh, a Graph Tech nut, an angled output jack, and Gotoh MG-T locking tuning machines.

The AZ47P1QM is a similar model with a quilted maple top.

Specifications

Related content: Premium series | AZ series |

Specifications for AZ47P2K

Model name: AZ47P2K Year(s) offered: 2025 Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA & Canada Made in: Indonesia Price: SMAP: US$1,599.99 (2025) Finish(es): Dragon Eye Burst (DEB)
Body Body type: Solid body Body material: American basswood w/ Hawaiian koa top Neck joint: AANJ Bridge: Gotoh T1502 tremolo (10.5mm string spacing) Knob style: Sure Grip III (gold) Hardware color: Gold	Neck Neck type: AZ Oval C Premium (24 fret) Neck material: One-piece roasted maple Scale length: 648mm/ 25½" Fingerboard material: Ebony Fingerboard inlays: Mother of pearl dots luminescent side dots Frets: 24 / jumbo stainless steel Nut: Graph Tech White TUSQ (42mm) Machine heads: Gotoh SG381 MG-T locking String gauge (factory): .010/.013/.017/.026/.036/.046 (D'Addario EXL110) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)	Electronics/ case Pickup configuration: HSH Bridge pickup: DiMarzio The Tone Zone (H) passive/ alnico Middle pickup: DiMarzio True Velvet (S) passive/ alnico Neck pickup: DiMarzio Air Norton (H) passive/ alnico Controls: Master volume / master tone / 5-way lever pickup selector Output jack: ¼" stereo barrel (angled side mount) Recommended case: MR500C Included gig bag: yes

About this table

Images

Additional details

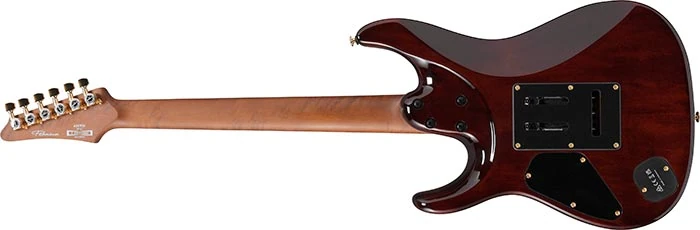

Rear

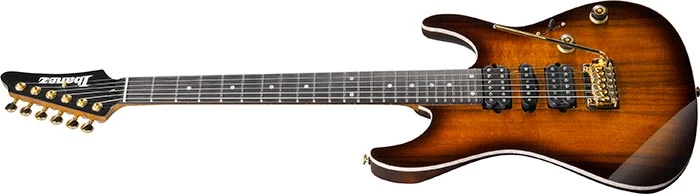

Front ¾ view

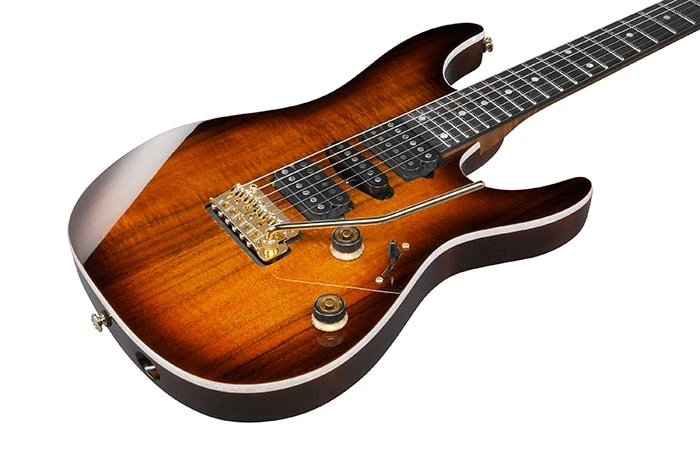

Body front

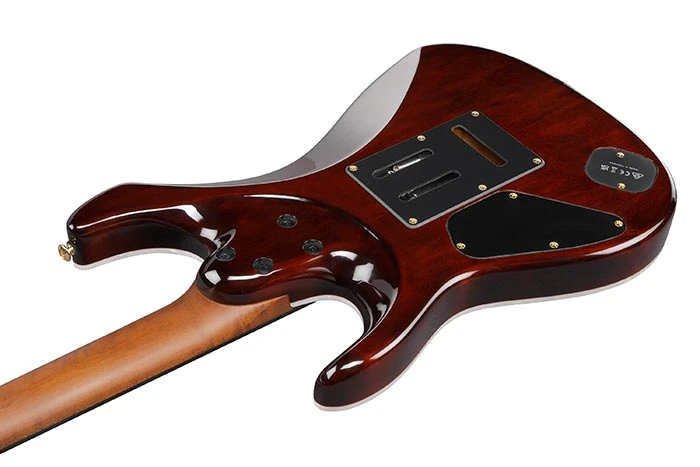

Body rear

Controls layout

Pickup switching

Sources

• AZ47P2K product page, Ibanez Europe, archived July 2025
