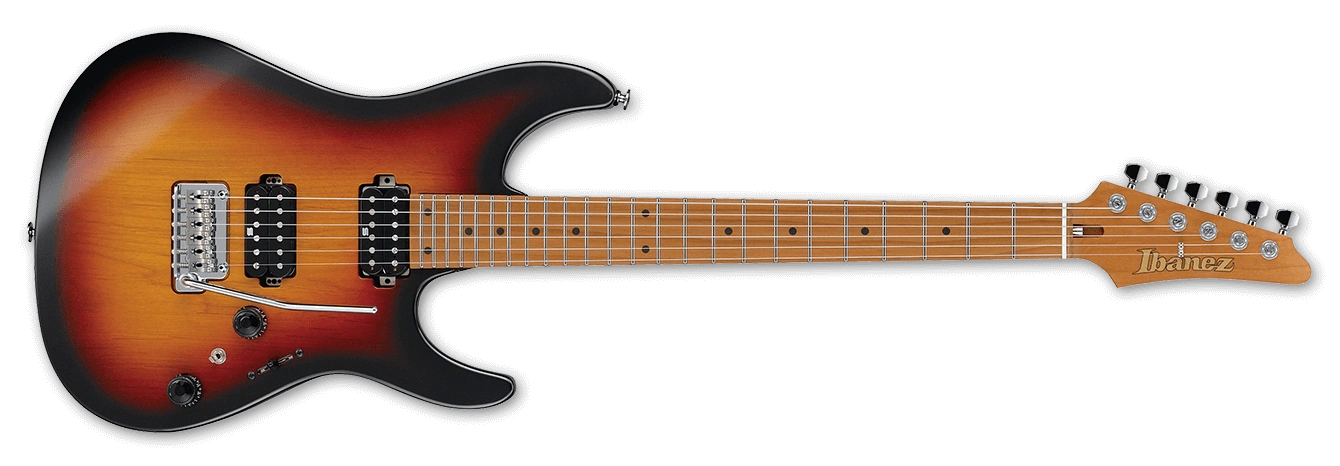

2018 AZ2402 TFF.png
AZ2402 Tri Fade Burst Flat (more images) Red copyright sprite.png

The AZ2402 is an AZ series solid body electric guitar model introduced by Ibanez for 2018. It is produced in Japan by Fujigen as part of the upscale Prestige line.

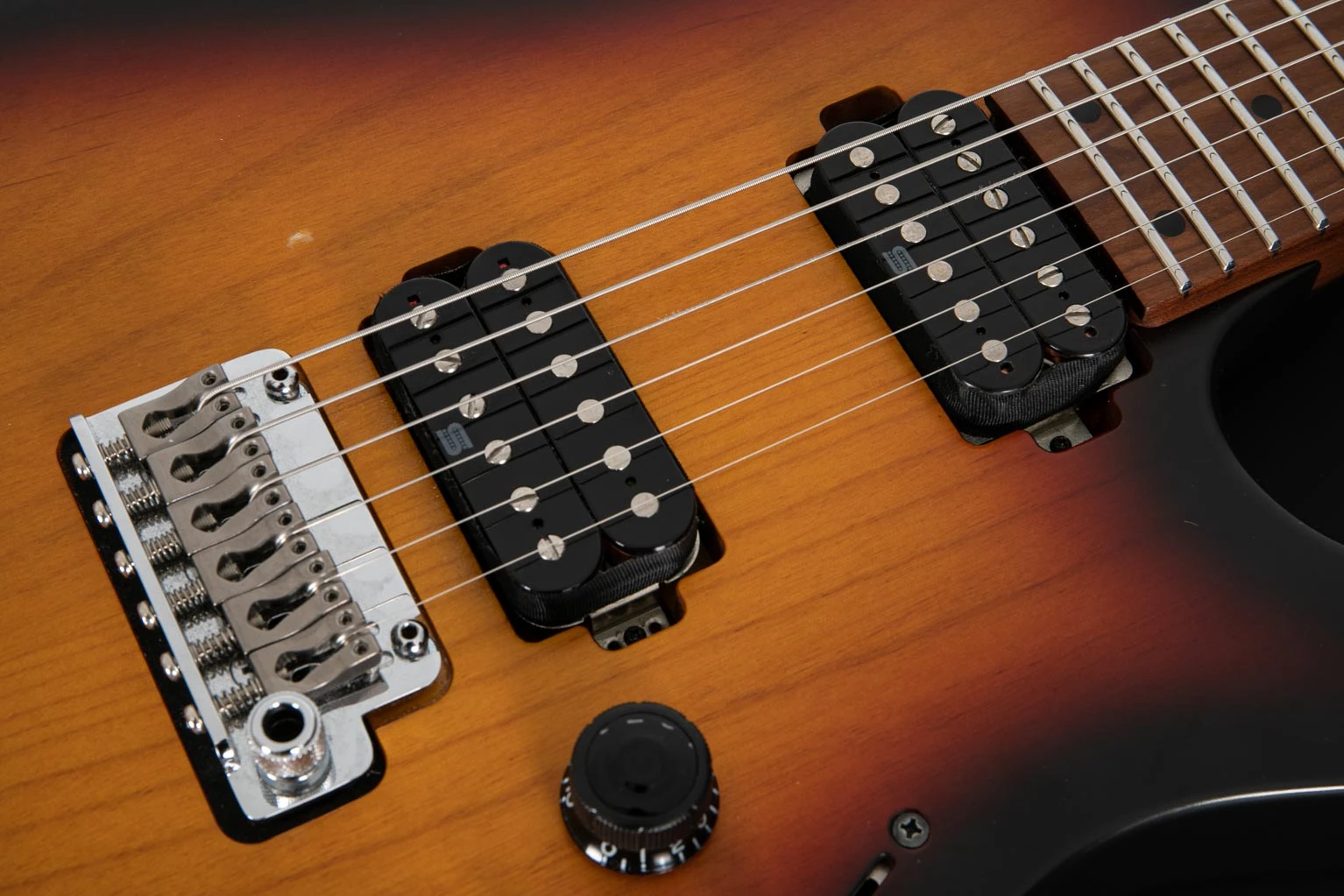

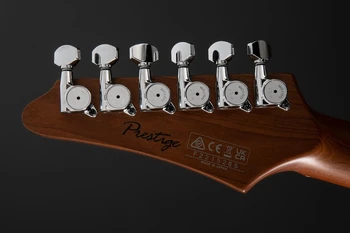

The AZ2402 features an alder body bolted to an S-Tech roasted maple oval C shaped neck with an S-Tech roasted maple fingerboard with 24 stainless steel frets, black dot position markers and luminescent side dots. Components include a pair of Seymour Duncan Hyperion humbucking pickups, a Gotoh T1802 two-point synchronized tremolo bridge with titanium saddles, an oil-impregnated bone nut, Sure-Grip III knobs, an angled output jack and Gotoh locking tuning machines with height-adjustable posts.

The AZ2402 employs a dyna-MIX10 switching system (see diagram below) with an "Alter switch" toggle which allows the user to access ten distinct tones. The Alter switch appears to tap one coil of the humbucker (as opposed to a traditional coil-split which disables one coil completely) to achieve a sound similar to a single coil without the drop in output which typically accompanies a coil split.

The AZ2402L is a left-handed version. The AZ24027 is a seven string version. The AZ2402K is a similar model with a koa top. The AZ2402Q is a similar model with a quilted maple top. The AZ2402MW is a similar model with a myrtle top. The AZ2402FF is a similar model with a flame maple top and fretboard. The AZ2402BWB is a similar model with a Bastogne walnut top.The IKAZ04 is a similar spot models with a candy apple red finish which was made for Japanese retailer Ikebe Gakki and released in late 2019. The KSAZ01 is a similar spot model is a white finish and gold hardware which was made for Japanese retailer Kurosawa Gakki for 2020. The AZ2202A is a related model with an ash body and 22 frets.

For 2019 a couple of spot models with a Sea Foam Green and Pearl White Flat finishes were released in European markets. In June, these new finishes were also released in the US market along with a new Pink Flat finish.

Specifications

Specifications for AZ2402
Model name: AZ2402
Year(s) produced: 2018–2021
Sold in: Worldwide
Made in: Japan
Finish(es): Black Flat (BKF) 2020–2021 / Ice Blue Metallic (ICM) / Pearl White Flat (PWF) 2019–2021 / Pink Flat (PKF) 2019–2020 / Sea Foam Green (SFG) 2019–2020 / Tri Fade Burst Flat (TFF)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
Super All Access
Bridge:
Gotoh T1802 tremolo (10.5mm string spacing)
Knob style:
Sure Grip III
Hardware color:
Chrome
Neck
Neck type:
AZ Oval C
Neck material:
One-piece S-Tech roasted maple
Scale length:
648mm/ 25½"
Fingerboard inlays:
Black dot
Luminlay side dots
Frets:
24 / jumbo stainless steel (Prestige edge treatment)
Nut:
Bone (42mm)
Machine heads:
Gotoh SG381 H.A.P. Magnum lock
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Seymour Duncan Hyperion bridge (H) passive/ alnico
Neck pickup:
Seymour Duncan Hyperion neck (H) passive/ alnico
Controls:
Master volume / master tone / dyna-MIX10 switching system w/ "Alter switch" toggle
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

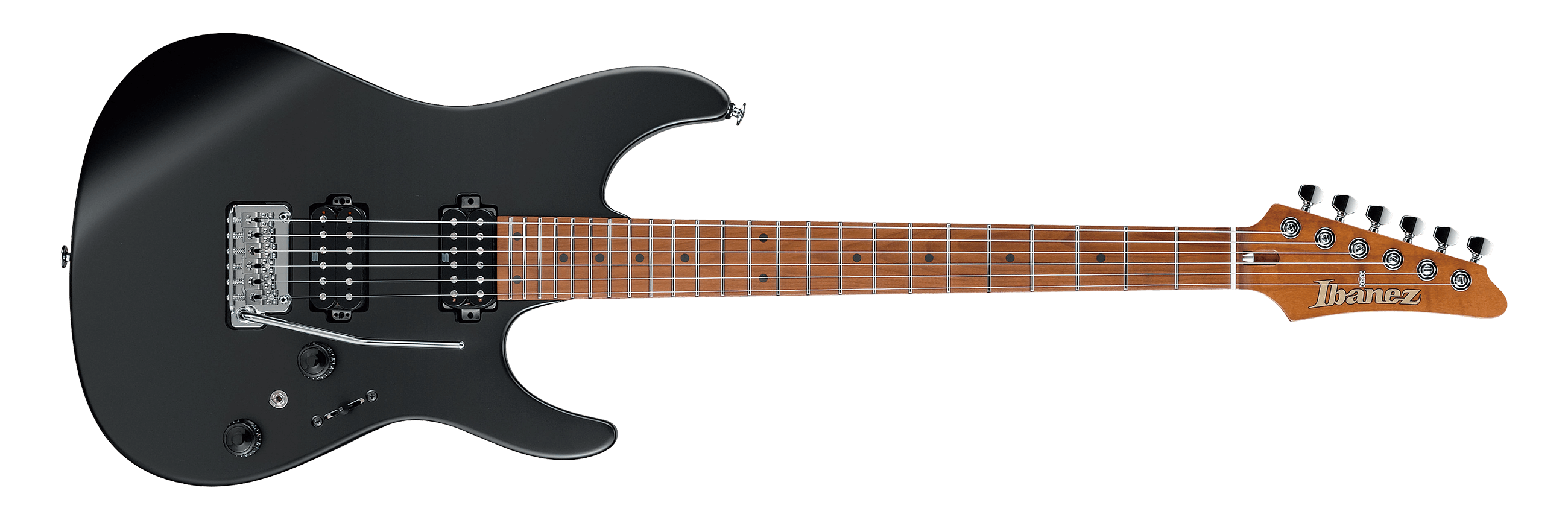

2020 AZ2402 BKF 00 01.png
Black Flat

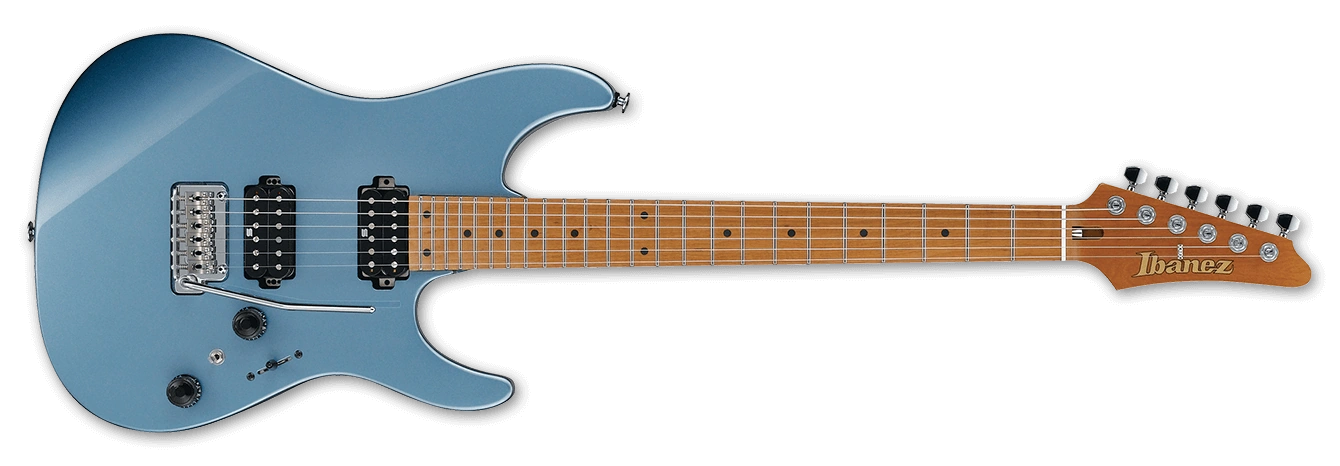

2018 AZ2402 ICM.png
Ice Blue Metallic

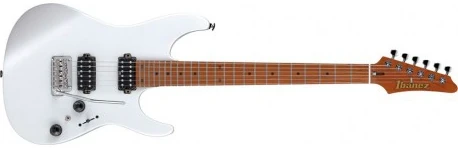

2019 AZ2402 PWF.jpg
Pearl White Flat

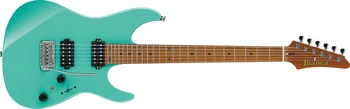

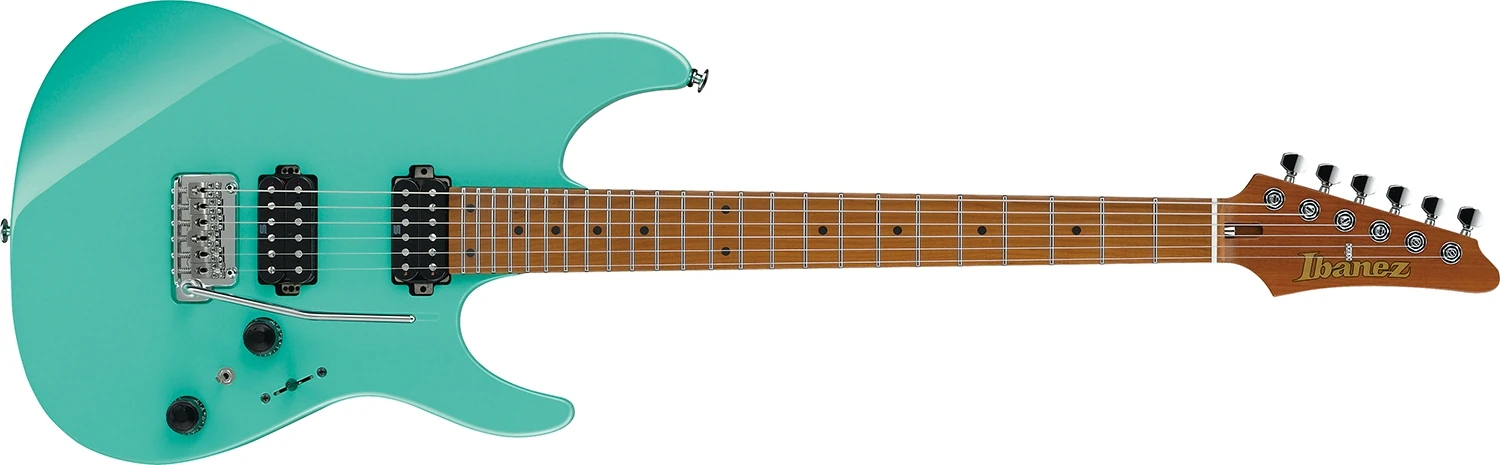

2019 AZ2402 SFG.jpg
Sea Foam Green
2019 AZ2402 PKF 00 01.png
Pink Flat

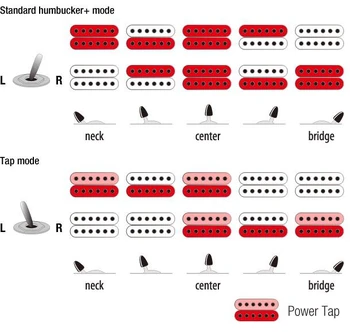

Dyna-MIX10 switching diagram.jpg
Pickup switching
Controls VT5 Alter-toggle.png
Controls layout

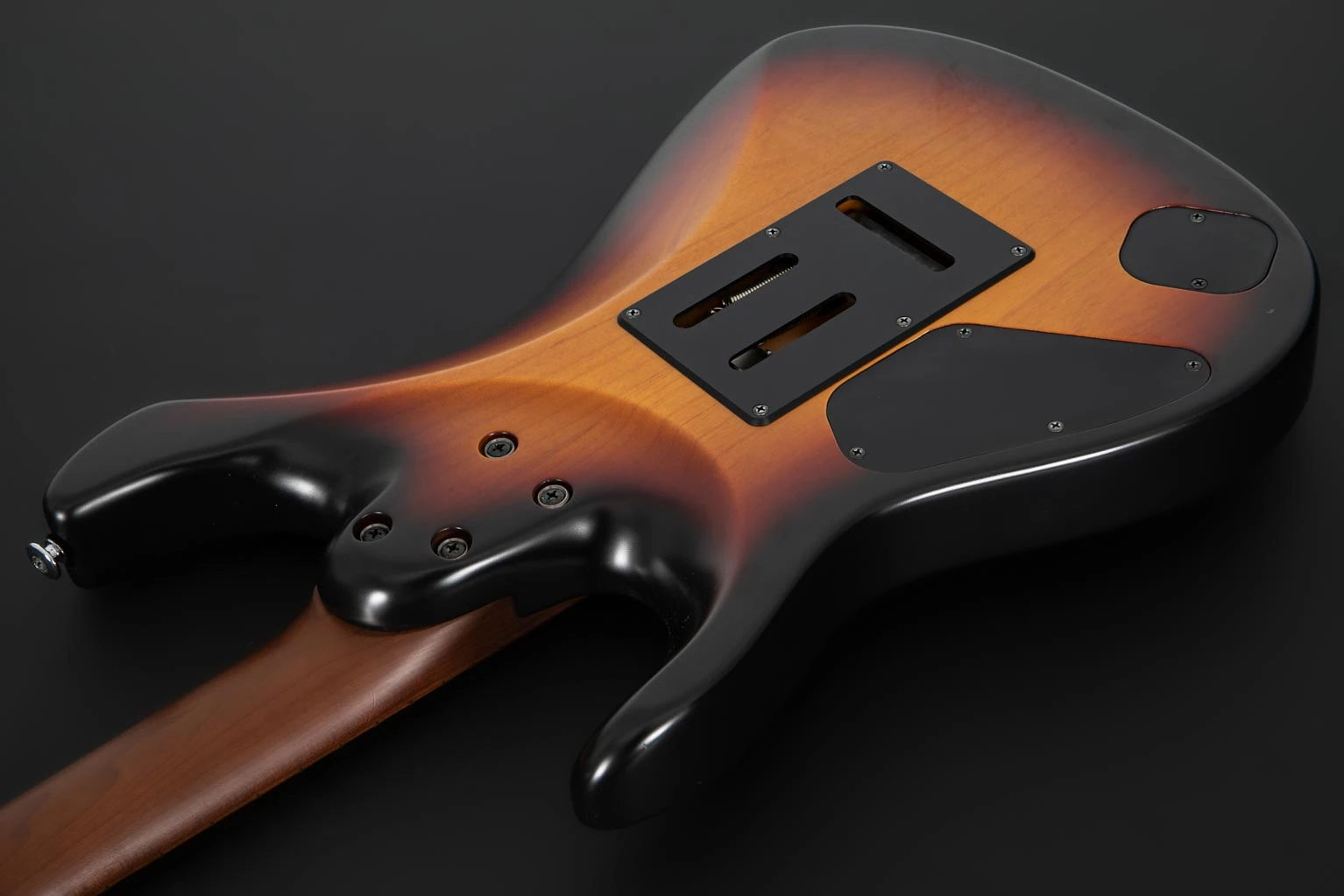

2021 AZ2402 TFF 00 01 back.png
Rear of body
