AXS42 DRF

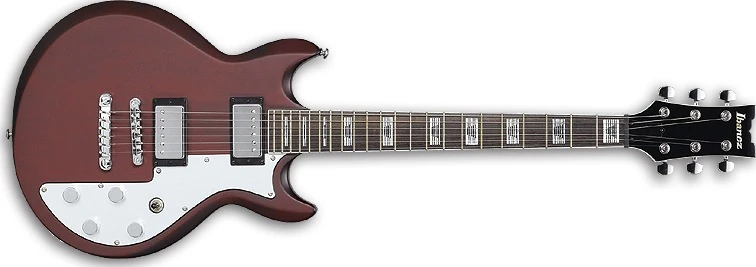

AXS32 Dark Red Stained Flat (more images) Red copyright sprite

The AXS42 is an AX series solid body electric guitar model introduced by Ibanez in 2006. It was made in Korea and replaced the similar AXS32

The AXS42 features a double cutaway mahogany body with crystal cut edges mated to a set-in mahogany neck with a smooth heel and a 22-fret rosewood fingerboard with binding and special block position markers. Components include a pair of covered Ibanez Axis humbucking pickups and a Full Tune III Tune-O-matic style bridge with a tailpiece.

The AXS42 was the last new non-GIO AX model introduced until the AX120 in 2018. It was discontinued after just one year.

Specifications

Specifications for AXS42
Model name: AXS42
Year(s) produced: 2006
Sold in: Worldwide
Made in: Korea
Finish(es): Dark Red Stained Flat (DRF) / Transparent Black Flat (TKF)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Set-in w/ smooth heel
Bridge:
Full Tune III fixed
Tailpiece:
Quik Change III
Pickguard:
Aluminium hairline
Knob style:
Flat top chrome
Hardware color:
Chrome
Neck
Neck type:
AX
Neck material:
3-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Special block
Frets:
22 / large
Nut:
Black plastic (43mm)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Axis Humbucker 4 (H)
Neck pickup:
Ibanez Axis Humbucker 3 (H)
Controls:
2 volume / 2 tone / 3-way toggle

Images

Additional finishes/ details

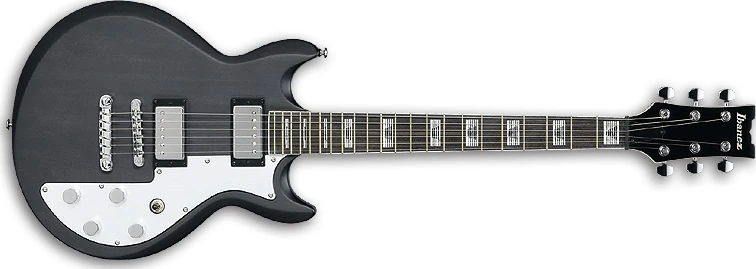

AXS42 TKF
Transparent Black Flat
HH 3-way toggle
Pickup switching diagram
Controls 2V2T3
Control layout

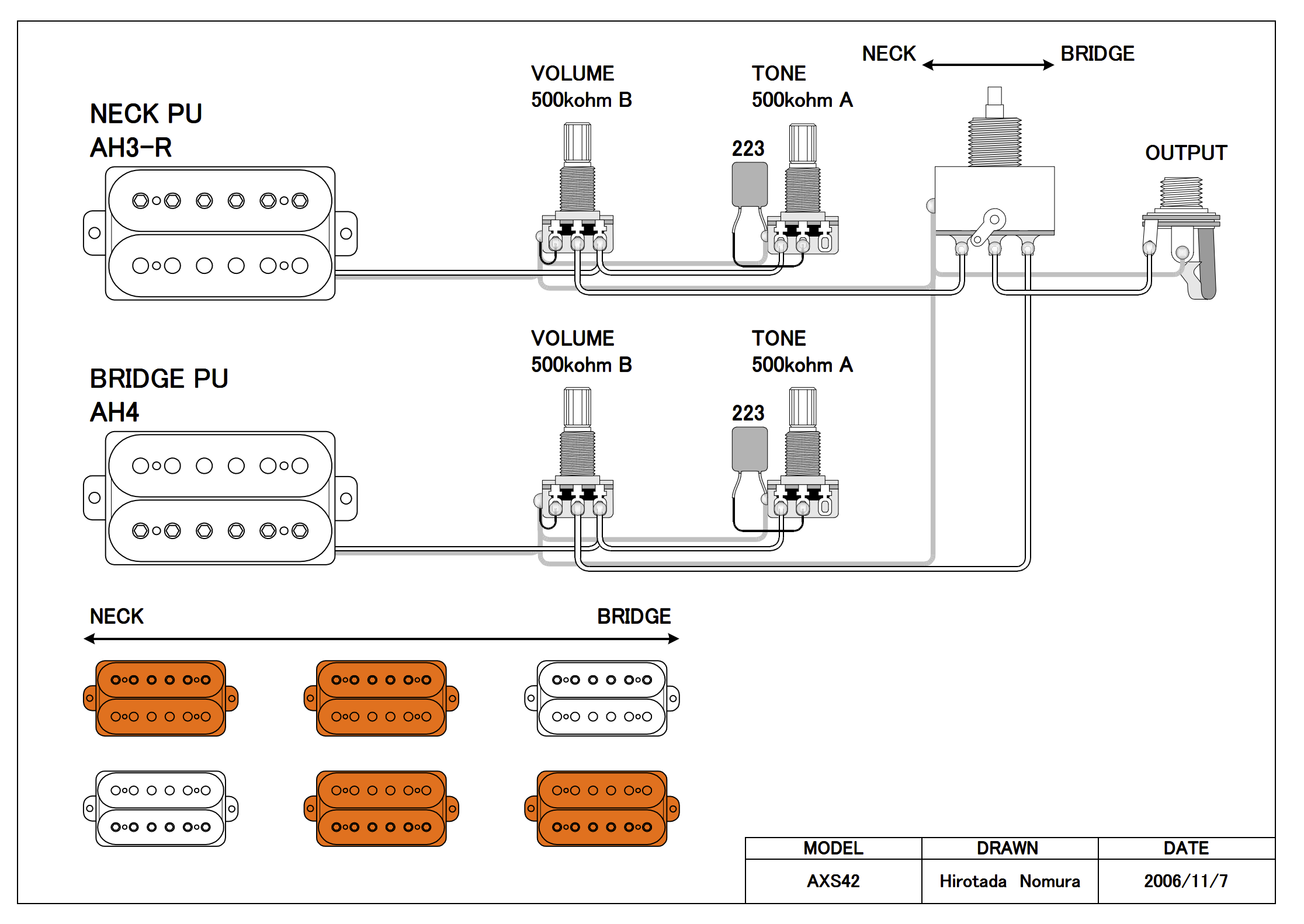

Wiring diagram AXS42
Wiring diagram
