AXS32 DRF

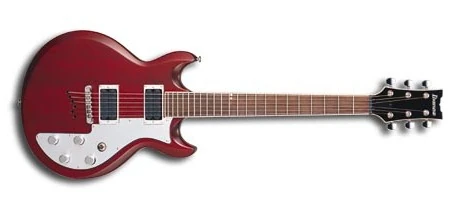

AXS32 Dark Red Stained Flat (more images) Red copyright sprite

The AXS32 is an AX series solid body electric guitar model introduced by Ibanez in 2003.

The AXS32 features a double cutaway mahogany body with crystal cut edges mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and offset dot position markers at the 12th fret. Components include dual Ibanez Axis humbucking pickups with individual volume and tone controls and a fixed bridge with through-body string routing.

The Condensed Cream finish was part of the 2004 Special Edition series.

For 2006 the AXS32 was discontinued in favor of the AXS42 which is a very similar model with a tailpiece behind the bridge.

Specifications

Specifications for AXS32
Year(s) produced: 2003–2005
Sold in: Europe / USA
Made in: Korea
Finish(es): Condensed Cream (CC) 2004 Special Edition / Dark Red Stained Flat (DRF) / Silver Flat (SVF) 2005 / Transparent Black Flat (TKF)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Set-in
Bridge:
Full Tune III fixed
Pickguard:
Aluminum hairline
Knob style:
Flat top chrome
Hardware color:
Chrome
Neck
Neck type:
AX
Neck material:
3-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Offset dots on 12th fret
Frets:
22 / large
Nut:
Black plastic (43mm)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez AH4 (H)
Neck pickup:
Ibanez AH3 (H)
Controls:
2 volume / 2 tone / 3-way toggle

Images

Additional finishes/ details
AXS32 CC
Condensed Cream
AXS32 SVF
Silver Flat

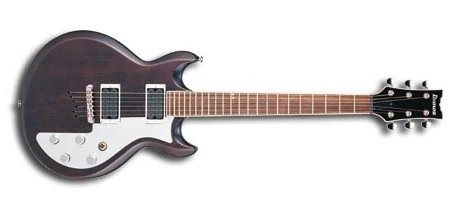

AXS32 TKF
Transparent Black Flat
HH 3-way toggle
Pickup switching diagram
Controls 2V2T3
Control layout

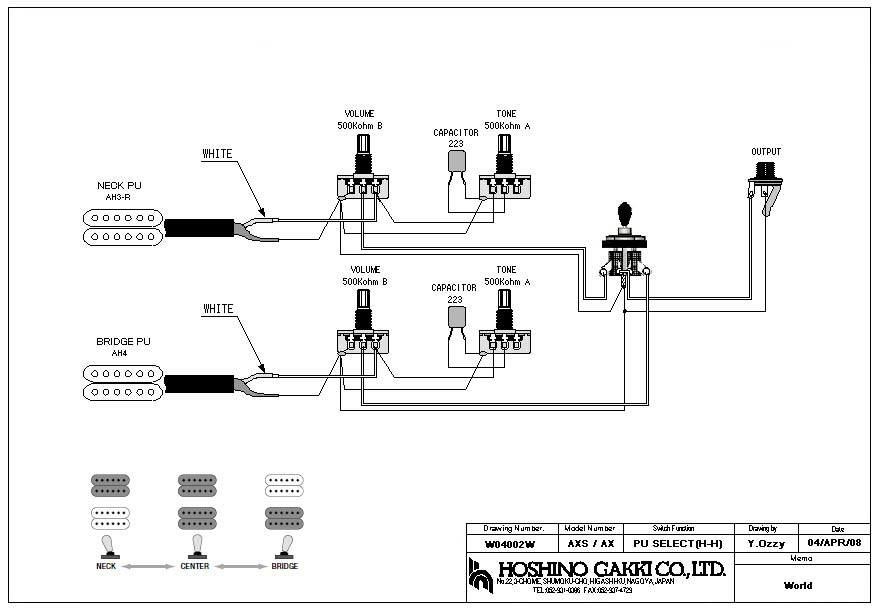

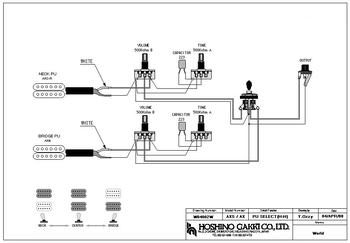

Wiring diagram AXS32
Wiring diagram
