2004 AXD81 VLS 12 01

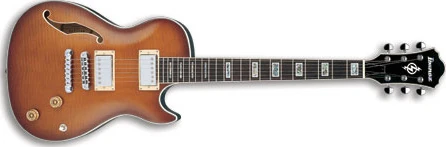

AXD81 Violin Sunburst Red copyright sprite

The AXD81 is an Artcore series hollow body electric guitar model introduced by Ibanez in late 2003. It was made in China.

The AXD guitars have a compact, arched top, flat back, single-cutaway, semi-hollow body which offers the warm tones of a hollow body design without the bulk.

The AXD81 features an arched, laminated sycamore top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and abalone block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in ivory pickup rings, an ART-1 Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines with half moon buttons.

The AXD71 is a similar model with a maple top and one-piece neck.

This AXD81 was discontinued after 2005.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AXD81
Year(s) offered: 2003–2005
Sold in: Asia & S. America / Europe / USA
Made in: China
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Width: 324mm / 12¾"
  Depth: 44mm/ 1¾" (43mm at tail)
Top:
  Material: Sycamore (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-1
Tailpiece:
Quik Change III
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore AXD
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Abalone block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
