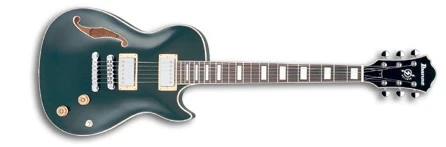

2004 AXD71 BK 12 01
AXD71 Black Red copyright sprite

The AXD71 is an Artcore series hollow body electric guitar model introduced by Ibanez in late 2003. It was made in China.

The AXD guitars have a compact, arched top, flat back, single-cutaway, semi-hollow body which offers the warm tones of a hollow body design without the bulk.

The AXD71 features an arched, laminated maple top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearloid block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in ivory pickup rings, an ART-1 Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines with half moon buttons.

The AXD81 is a similar model with a sycamore top and a 3-piece neck. The AXF74 is a related model with a full-hollow body. The TXD71 is a related model with a Talman series body shape.

This AXD71 was discontinued after 2005.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AXD71
Year(s) offered: 2003–2005
Sold in: Asia & S. America / Europe / USA
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Width: 324mm / 12¾"
  Depth: 44mm/ 1¾" (43mm at tail)
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-1
Tailpiece:
Quik Change III
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore AXD
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearloid block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
