AX7221 GP

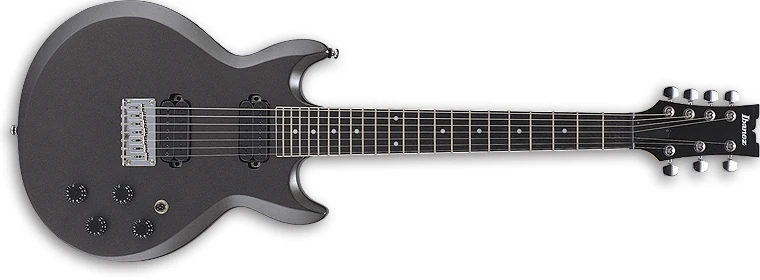

AX7221 Gray Pewter Red copyright sprite

The AX7221 is a seven string AX series solid body electric guitar model introduced by Ibanez in 1999. It was initially made in Japan, but production was moved to Korea in 2000 and then to Indonesia in 2003.

The AX7221 features a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include dual Ibanez Axis humbucking pickups and a fixed bridge.

For 2000 the one-piece neck was replaced with a 5-piece construction of maple and walnut.

The RG7321 and S7421 are similar models with different body styles. They are among the first seven-string models produced by Ibanez. The AX7521 is a Japanese model with different components.

The AX7221 was discontinued after 2007. Another non-GIO AX series model would not be introduced until the AX120 in 2018.

Specifications[]

Related content: AX series | Artist series | Models-icon
Specifications for AX7221
Model name: AX7221
Year(s) offered: 1999–2007
Sold in: Japan 2006 only / North and South America & Oceania / USA
Made in: Japan (1999)/ Korea (2000–2002)/ Indonesia (2003–2007)
Finish(es): Gray Pewter (GP)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Fixed-7
Knob style:
Speed knobs (black)
Hardware color:
Chrome
Neck
Neck type:
AX-7
Neck material:
1999: 1-piece maple
2000–2007: 5-piece maple/ walnut
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Black plastic (48mm)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez AH2-7 (H)
Neck pickup:
Ibanez AH1-7 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector

Images[]

Additional details
HH 3-way toggle
Pickup switching diagram
Controls 2V2T3
Control layout
Wiring diagram AX7221
Wiring diagram
