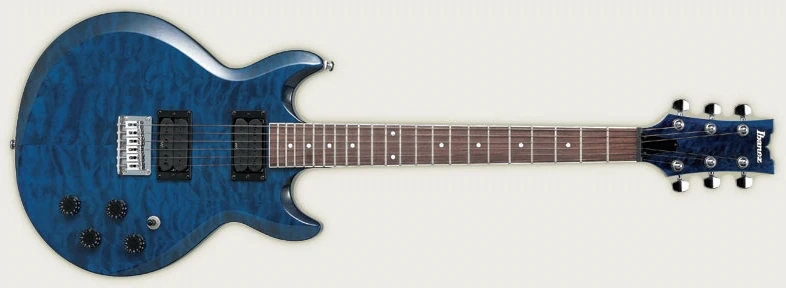

2006 AX220QM BB.jpg
AX220QM Blackberry (more images) Red copyright sprite.png

The AX220QM is an AX series solid body electric guitar model introduced by Ibanez in 2001. It was made in Korea by World Musical Instrument Co.

The AX220QM features a quilted maple top on a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with binding and dot inlays. Components include dual Ibanez Axis humbucking pickups and a fixed bridge.

The AX120 is a similar model without the quilted maple top

The AX220QM was discontinued after 2006.

Specifications

Specifications for AX220QM
Model name: AX220QM
Year(s) produced: 2001–2006
Sold in: North America
Made in: Korea
Finish(es): Autumn Sunset Burst (ASB) / Blackberry (BB) / Transparent Lavender (TL)
Body
Body type:
Solid body
Body material:
Mahogany w/ quilted maple top
Neck joint:
Bolt-on
Bridge:
Fixed bridge
Hardware color:
Chrome
Neck
Neck type:
AX
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez AH2 (H)
Neck pickup:
Ibanez AH1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector

Images

Other available finishes

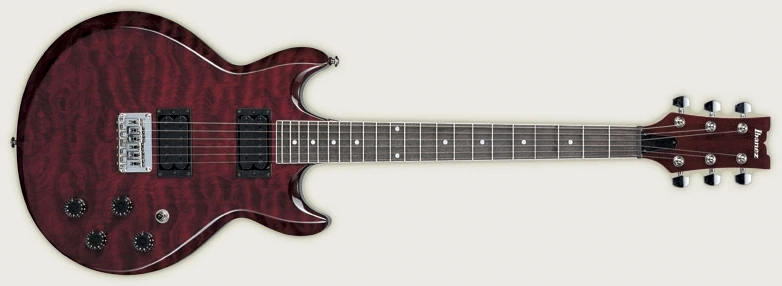

2006 AX220QM TL.jpg
Transparent Lavender

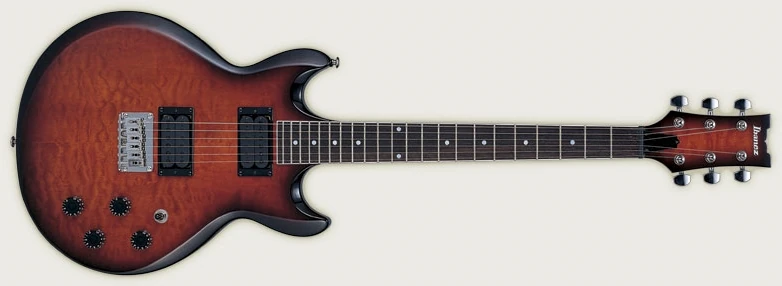

2004 AX220QM ASB.jpg
Autumn Sunset Burst
