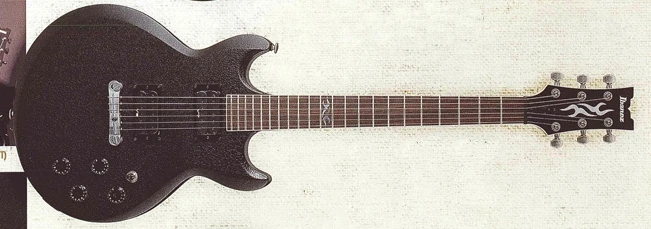

2003 AX1220 BBK
AX1220 Biker Black Red copyright sprite

The AX1220 is an AX series solid body electric guitar model introduced by Ibanez in 2002. It was made in Japan by FujiGen as part of the high-end Prestige line.

The AX1220 features a mahogany body bolted to a maple neck with a 22-fret bound rosewood fingerboard with a special inlay on the 12th fret. Components include dual Ibanez Vintage humbucking pickups with individual volume and tone controls and a wraparound style fixed bridge. Unlike most Prestige models which have a barrel jack which is secured internally, the AX1220 has an externally mounted output jack with a square plate.

The AX1220 was discontinued after two years in production.

Specifications[]

Related content: Prestige series | AX series | Models-icon
Specifications for AX1220
Model name: AX1220
Year(s) offered: 2002–2003
Sold in: USA
Made in: Japan
Finish(es): Biker Black (BBK)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Bolt-on
Bridge:
Gotoh GTB100 wraparound
Knob style:
Speed (black)
Hardware color:
Vintage silver
Neck
Neck type:
AX Prestige
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Special on 12th fret
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez V8 (H)
Neck pickup:
Ibanez V7 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
