For other models with the same name, see AX120 (disambiguation).

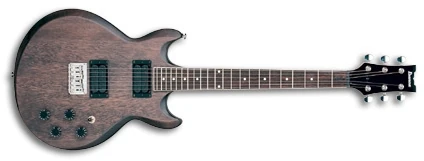

2004 AX120 WK.jpg
AX120 Weathered Black (more images) Red copyright sprite.png

The AX120 is an AX series solid body electric guitar model introduced by Ibanez in 2000.

The AX120 features a mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with binding and dot position markers. Components include dual Ibanez Axis humbucking pickups and a fixed bridge.

Production of this model was moved from Korea to Indonesia in 2004.

The AX125 is a similar model which adds a D-Tuner. The AX220QM is a similar model with a quilted maple top.

The AX120 was discontinued after 2005, but a limited spot model was released in Japan the following year.

Specifications

Specifications for AX120 (2000–2005)
Model name: AX120 (2000–2005)
Year(s) produced: 2000–2005
Sold in: North America
Made in: Korea (2000–2004) / Indonesia (2004–2005)
Finish(es): Antique Bronze (AB) 2001–2004 / Black (BK) 2001–2004 / Gray Nickel (GN) 2000–2004 / Weathered Brown (WBR) 2004–2005 / Weathered Black (WK) 2004–2005
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Bolt-on
Bridge:
Fixed bridge
Hardware color:
Chrome
Neck
Neck type:
AX
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez AH2 (H)
Neck pickup:
Ibanez AH1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector

Images

Other available finishes
2004 AX120 WBR.jpg
Weathered Brown

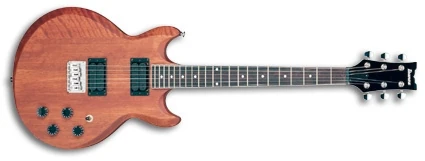

2003 AX120 AB.jpg
Antique Bronze

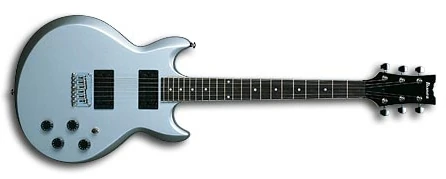

2003 AX120 GN.jpg
Gray Nickel

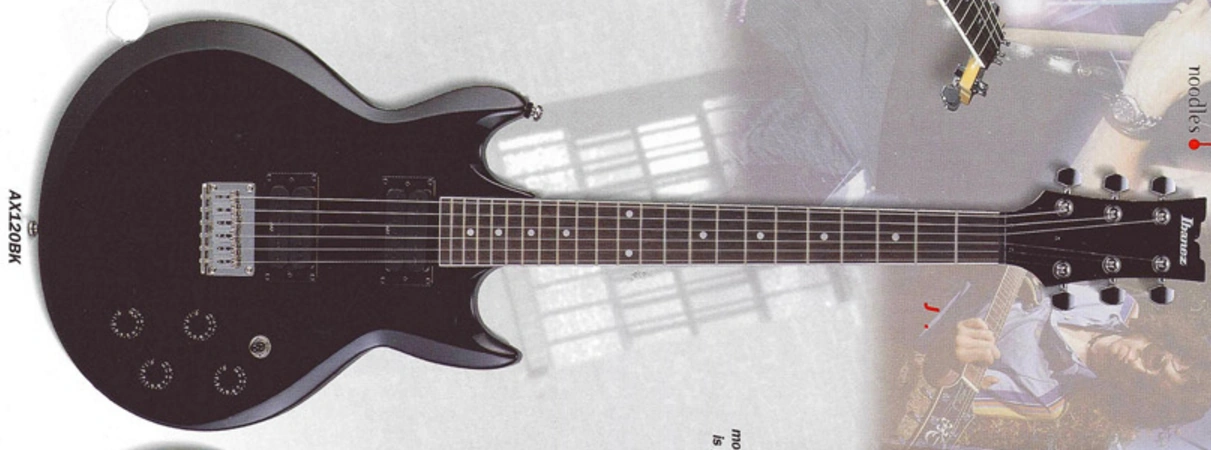

2000 AX120 BK.png
Black
