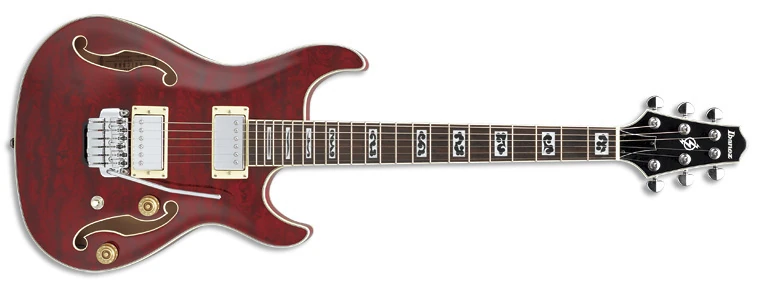

2005 AWD82T TRD 12 01
AWD82T Transparent Red Red copyright sprite

The AWD82T is an Artcore series hollow body electric guitar model introduced by Ibanez for 2005. It was made in China.

The AWD guitars have an arched top, double-cutaway, semi-hollow body design with a modern shape vaguely reminiscent of a Fender Stratocaster or some of Ibanez's Roadstar II series models from the 1980s. It has an arched top and a flat back.

The AWD82T features an arched, laminated bubinga top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and special "Kumogara" cloud design position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in ivory pickup rings, an ACT two-point knife-edge tremolo bridge, a plastic nut, speed knobs, and Ibanez tuning machines with half moon buttons.

The AWD82 is a similar model with a fixed bridge.

This AWD82T was discontinued after just one year in production and replaced with the AWD83T.

Specifications[]

Related content: AWD models | Artcore series | Models-icon
Specifications for AWD82T
Year(s) offered: 2005
Sold in: Europe / Japan / USA
Made in: China
Finish(es): Transparent Red (TRD)
Body
Body type:
Hollow body
Dimensions:
  Width: 330mm / 13"
  Depth: 44mm/ 1¾" (43mm at tail)
Top:
  Material: Bubinga (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ACT tremolo
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore DX
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
"Kumogara" cloud design
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
