2005 AWD82LTD BK 12 01

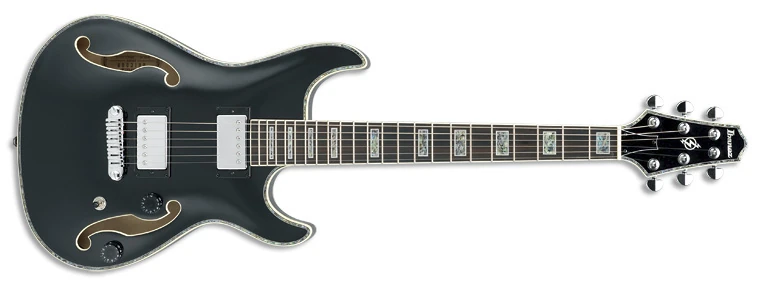

AWD82LTD Black (more images) Red copyright sprite

The AWD82LTD is an Artcore series hollow body electric guitar model introduced by Ibanez for 2005. It was made in China.

The AWD guitars have an arched top, double-cutaway, semi-hollow body design with a modern shape vaguely reminiscent of a Fender Stratocaster or some of Ibanez's Roadstar II series models from the 1980s. It has an arched top and a flat back.

The AWD82LTD features an arched, laminated maple top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and abalone Artcore DX block position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in black pickup rings, an integrated Short Stop III bridge and tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines with half moon buttons.

The AWD82 is a similar model with a bubinga top.

This AWD82LTD was discontinued after 2006.

Specifications[]

Related content: AWD models | Artcore series | Models-icon
Specifications for AWD82LTD
Year(s) offered: 2005–2006
Sold in: North America / USA
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Width: 330mm / 13"
  Depth: 44mm/ 1¾" (43mm at tail)
Top:
  Material: Maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
Short Stop III
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
Artcore DX
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Abalone Artcore DX block
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
