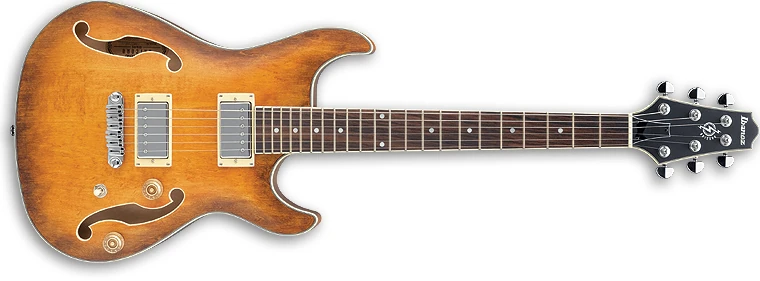

2007 AWD72 ATF 12 01
AWD72 Antique Burst Flat (more images) Red copyright sprite

The AWD72 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2006. It was made in China.

The AWD guitars have an arched top, double-cutaway, semi-hollow body design with a modern shape vaguely reminiscent of a Fender Stratocaster or some of Ibanez's Roadstar II series models from the 1980s. It has an arched top and a flat back.

The AWD72 features an arched, laminated maple top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearl dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with chrome covers mounted in ivory pickup rings, an integrated Short Stop III bridge and tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines with half moon buttons.

The AWD83 is a similar model with a figured bubinga top and a three-piece neck.

This AWD72 was discontinued after 2007.

Specifications

Specifications for AWD72
Year(s) produced: 2006–2007
Sold in: Asia & S. America / Europe
Made in: China
Finish(es): Antique Burst Flat (ATF) / Transparent Black Flat (TKF)
Body
Body type:
Hollow body
Dimensions:
  Width: 330mm / 13"
  Depth: 44mm/ 1¾" (43mm at tail)
Top:

  Material: Maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
Short Stop III
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
Artcore AWD
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/ceramic
Neck pickup:
Ibanez ACH1 (H) passive/ceramic
Controls:
Master volume / master tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

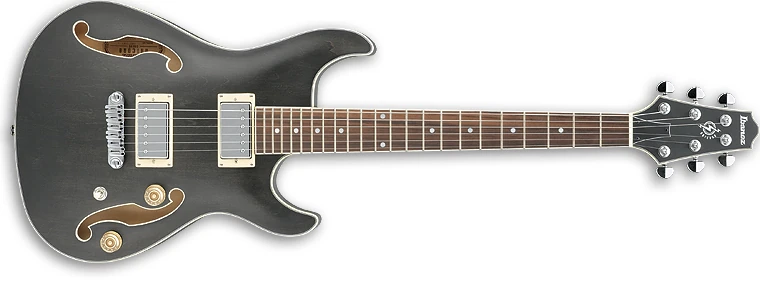

2007 AWD72 TKF 12 01
Transparent Black Flat
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
