For the earlier version with the same name, see AW8412CE (2020–2022).

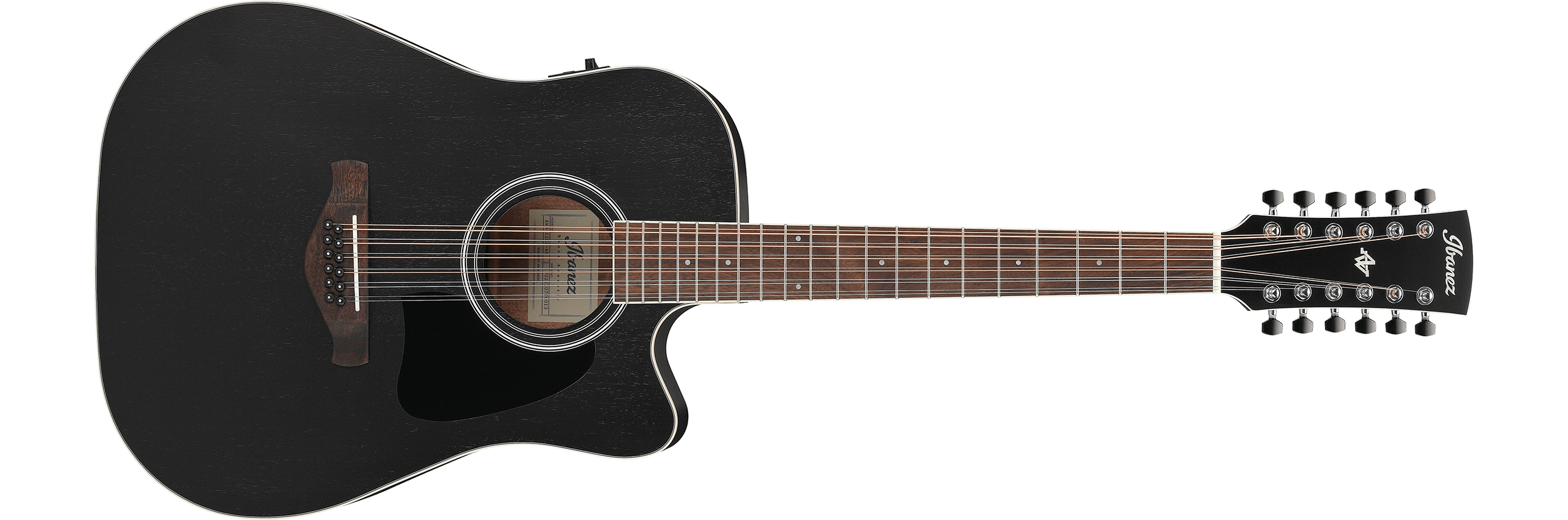

2023 AW8412CE WK 1P 01
AW8412CE Weathered Black Open Pore Red copyright sprite

The AW8412CE is a twelve string Artwood series acoustic-electric guitar model introduced by Ibanez for 2023. It is produced in Indonesia replacing a predecessor model which was made in China with some minor differences.

The AW8412CE features a dreadnought body shape with a Venetian cutaway with a solid okoume top with X bracing on laminated okoume sides and back with an open pore finish. The soundhole is round with a simple black and white acrylic rosette. It has an open pore finished nyatoh neck with a 20-fret laurel fingerboard with small white dot position markers. Components include a bone saddle in an ovangkol bridge with black Ibanez Advantage bridge pins, a bone nut, a black pickguard and chrome tuning machines. Electronics consist of a T-bar undersaddle pickup connected to an Ibanez AEQ-TP2 preamp with onboard tuner powered by a 9V battery and balanced XLR and ¼" outputs.

The AW84CE is a similar six string model. The AW5412CE is a similar model with a plastic nut and saddle.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW8412CE (2023–2024)
Name: AW8412CE (2023–2024)
Year(s) offered: 2023–2024
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: Indonesia
Finishes: Weathered Black Open Pore (WK)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Body length: 511mm/ 20⅛"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid okoume
  Bracing: X
  Finish: Open pore
  Binding: Black & white
Back/sides:
  Material: Okoume (laminated)
  Finish: Open pore
Soundhole shape:
Round
Soundhole rosette:
Black & white acrylic
Neck
Neck profile:
AW12 C shape
Neck material:
1-piece nyatoh
Neck finish:
Open pore
Neck joint:
Dovetail
Scale length:
648mm/ 25½"
Fingerboard:
Laurel w/ white binding
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Bone (48mm)
Machine heads:
Ibanez die-cast w/ black buttons (18:1 gear ratio)
Electronics/ Components
Pickup:
Ibanez T-bar undersaddle
Preamp:
Ibanez AEQ-TP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼" stereo
Battery:
9V
Bridge:
Laurel (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.010/.010/.014/.014/.023/.008/.030/.012/.039/.018/.047/.027 (D'Addario XTAPB1047-12)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
2023 AW8412CE WK 1P 01 back
Rear view

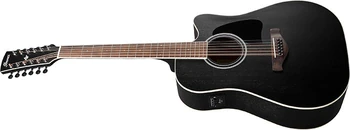

2023 AW8412CE WK 1P 01 front-3-4
Front ¾ view
2023 AW8412CE WK 1P 01 body-back
Back and top side
2023 AW8412CE WK 1P 01 headstock-back
Headstock rear and tuners
XLR quarter-inch output
XLR & ¼" balanced output
Ibanez T-bar undersaddle pickup
T-bar undersaddle pickup
AEQ-TP2 preamp photo
AEQ-TP2 preamp w/ on-board tuner
AEQ-TP2 preamp diagram
AEQ-TP2 preamp diagram

Sources[]

  • AW8412CE product page 2023, Ibanez Asia & Africa, archived January 2023
  • AW8412CE product page 2024, Ibanez Anericas & Oceania, archived January 2024
